Introduction

One of the feature we’d like to add to Topic model is to induce sparsity on loadings, and factors, for better interpretability.

Directly adding such constraint is non-trivial, and has not been shown to perform well, especialy using empirical Bayes approach.

Here I took an approach of combining biwhitening, and EBNMF(a scaled version, and I wrote the code and is available in funflash package). In this analysis, we show how the method performs well on simple examples, and can acutally induce sparsity on L, and F.

The examples are taken from here

library(funflash)

Simple example, K=3

This is an example where topic model can give sparse estimates, because of sparsity of the data.

The biwhitening + ebnmf method can also recover the true structure. (although it gives slightly more dimensions, the true ones are well recovered, and the redundant ones have very small PVE.) Note also that we input the true K to topic model.

set.seed(12345)
n = 99
p = 300
k= 3
L = matrix(0, nrow=n, ncol=k)
F = matrix(0, nrow=p, ncol=k)

L[1:(n/3),1] = 1
L[((n/3)+1):(2*n/3),2] = 1
L[((2*n/3)+1):n,3] = 1

F[1:(p/3),1] = 1+10*runif(p/3)
F[((p/3)+1):(2*p/3),2] = 1+10*runif(p/3)
F[((2*p/3)+1):p,3] = 1+10*runif(p/3)

lambda = L %*% t(F)
X = matrix(rpois(n=length(lambda),lambda),nrow=n)
image(X)

Version Author Date
de0e454 DongyueXie 2023-03-18
fit_tm = fastTopics::fit_poisson_nmf(X,3)
Initializing factors using Topic SCORE algorithm.
Initializing loadings by running 10 SCD updates.
Fitting rank-3 Poisson NMF to 99 x 300 dense matrix.
Running 100 SCD updates, without extrapolation (fastTopics 0.6-142).
plot(fit_tm$L[,1],main="Topic model, estimated loadings 1")

Version Author Date
de0e454 DongyueXie 2023-03-18
plot(fit_tm$L[,2],main="Topic model, estimated loadings 2")

Version Author Date
de0e454 DongyueXie 2023-03-18
plot(fit_tm$L[,3],main="Topic model, estimated loadings 3")

Version Author Date
de0e454 DongyueXie 2023-03-18
Y_tilde = biwhitening(X)
fit_sf = scaledflash(Y_tilde$Y,Y_tilde$u,Y_tilde$v,
                     S2 = NULL,
                     var.type = 'by_column',
                     Kmax=10,
                     tol=0.01,
                     maxiter = 1000,
                     ebnm_fn = 'ebnm_pe',
                     init_fn = 'nnmf_r1',
                     ebnm_param=NULL,
                     verbose=TRUE,
                     nullcheck=TRUE,
                     sigma2 = NULL,
                     seed=12345)
[1] "Fitting dimension  1"
[1] "Iteration  1 : obj  -60520.173"
[1] "Iteration  2 : obj  -60518.407"
[1] "Iteration  3 : obj  -60518.395"
[1] "Iteration  4 : obj  -60518.395"
[1] "Performing nullcheck"
[1] "Deleting factor  1  decreases objective by  9383.153"
[1] "Fitting dimension  2"
[1] "Iteration  1 : obj  -56070.367"
[1] "Iteration  2 : obj  -55884.093"
[1] "Iteration  3 : obj  -55010.337"
[1] "Iteration  4 : obj  -53000.907"
[1] "Iteration  5 : obj  -51931.104"
[1] "Iteration  6 : obj  -51906.404"
[1] "Iteration  7 : obj  -51906.383"
[1] "Iteration  8 : obj  -51906.383"
[1] "Performing nullcheck"
[1] "Deleting factor  2  decreases objective by  8612.012"
[1] "Fitting dimension  3"
[1] "Iteration  1 : obj  -43072.511"
[1] "Iteration  2 : obj  -43071.899"
[1] "Iteration  3 : obj  -43071.896"
[1] "Performing nullcheck"
[1] "Deleting factor  3  decreases objective by  8834.487"
[1] "Fitting dimension  4"
[1] "Iteration  1 : obj  -43061.747"
[1] "Iteration  2 : obj  -43035.342"
[1] "Iteration  3 : obj  -43031.747"
[1] "Iteration  4 : obj  -43030.841"
[1] "Iteration  5 : obj  -43030.478"
[1] "Iteration  6 : obj  -43030.297"
[1] "Iteration  7 : obj  -43030.153"
[1] "Iteration  8 : obj  -43029.939"
[1] "Iteration  9 : obj  -43029.428"
[1] "Iteration  10 : obj  -43028.748"
[1] "Iteration  11 : obj  -43028.572"
[1] "Iteration  12 : obj  -43028.561"
[1] "Iteration  13 : obj  -43028.56"
[1] "Performing nullcheck"
[1] "Deleting factor  4  decreases objective by  43.336"
[1] "Fitting dimension  5"
[1] "Iteration  1 : obj  -43016.009"
[1] "Iteration  2 : obj  -43009.224"
[1] "Iteration  3 : obj  -43007.799"
[1] "Iteration  4 : obj  -43007.75"
[1] "Iteration  5 : obj  -43007.749"
[1] "Performing nullcheck"
[1] "Deleting factor  5  decreases objective by  20.811"
[1] "Fitting dimension  6"
[1] "Iteration  1 : obj  -43022.337"
[1] "Iteration  2 : obj  -42998.302"
[1] "Iteration  3 : obj  -42995.324"
[1] "Iteration  4 : obj  -42993.144"
[1] "Iteration  5 : obj  -42991.811"
[1] "Iteration  6 : obj  -42991.081"
[1] "Iteration  7 : obj  -42990.388"
[1] "Iteration  8 : obj  -42989.265"
[1] "Iteration  9 : obj  -42987.761"
[1] "Iteration  10 : obj  -42986.863"
[1] "Iteration  11 : obj  -42985.643"
[1] "Iteration  12 : obj  -42981.128"
[1] "Iteration  13 : obj  -42978.326"
[1] "Iteration  14 : obj  -42978.008"
[1] "Iteration  15 : obj  -42977.952"
[1] "Iteration  16 : obj  -42977.939"
[1] "Iteration  17 : obj  -42977.936"
[1] "Performing nullcheck"
[1] "Deleting factor  6  decreases objective by  29.813"
[1] "Fitting dimension  7"
[1] "Iteration  1 : obj  -42920.263"
[1] "Iteration  2 : obj  -42917.53"
[1] "Iteration  3 : obj  -42917.417"
[1] "Iteration  4 : obj  -42917.404"
[1] "Iteration  5 : obj  -42917.401"
[1] "Performing nullcheck"
[1] "Deleting factor  7  decreases objective by  60.535"
[1] "Fitting dimension  8"
[1] "Iteration  1 : obj  -42876.418"
[1] "Iteration  2 : obj  -42874.874"
[1] "Iteration  3 : obj  -42874.667"
[1] "Iteration  4 : obj  -42874.498"
[1] "Iteration  5 : obj  -42874.204"
[1] "Iteration  6 : obj  -42873.628"
[1] "Iteration  7 : obj  -42872.613"
[1] "Iteration  8 : obj  -42871.899"
[1] "Iteration  9 : obj  -42871.694"
[1] "Iteration  10 : obj  -42871.628"
[1] "Iteration  11 : obj  -42871.604"
[1] "Iteration  12 : obj  -42871.594"
[1] "Performing nullcheck"
[1] "Deleting factor  8  decreases objective by  45.807"
[1] "Fitting dimension  9"
[1] "Iteration  1 : obj  -42846.474"
[1] "Iteration  2 : obj  -42845.07"
[1] "Iteration  3 : obj  -42845.001"
[1] "Iteration  4 : obj  -42844.967"
[1] "Iteration  5 : obj  -42844.94"
[1] "Iteration  6 : obj  -42844.915"
[1] "Iteration  7 : obj  -42844.892"
[1] "Iteration  8 : obj  -42844.87"
[1] "Iteration  9 : obj  -42844.848"
[1] "Iteration  10 : obj  -42844.827"
[1] "Iteration  11 : obj  -42844.805"
[1] "Iteration  12 : obj  -42844.784"
[1] "Iteration  13 : obj  -42844.761"
[1] "Iteration  14 : obj  -42844.738"
[1] "Iteration  15 : obj  -42844.712"
[1] "Iteration  16 : obj  -42844.683"
[1] "Iteration  17 : obj  -42844.65"
[1] "Iteration  18 : obj  -42844.612"
[1] "Iteration  19 : obj  -42844.564"
[1] "Iteration  20 : obj  -42844.505"
[1] "Iteration  21 : obj  -42844.428"
[1] "Iteration  22 : obj  -42844.326"
[1] "Iteration  23 : obj  -42844.189"
[1] "Iteration  24 : obj  -42844.01"
[1] "Iteration  25 : obj  -42843.787"
[1] "Iteration  26 : obj  -42843.536"
[1] "Iteration  27 : obj  -42843.29"
[1] "Iteration  28 : obj  -42843.085"
[1] "Iteration  29 : obj  -42842.937"
[1] "Iteration  30 : obj  -42842.84"
[1] "Iteration  31 : obj  -42842.78"
[1] "Iteration  32 : obj  -42842.742"
[1] "Iteration  33 : obj  -42842.715"
[1] "Iteration  34 : obj  -42842.694"
[1] "Iteration  35 : obj  -42842.675"
[1] "Iteration  36 : obj  -42842.654"
[1] "Iteration  37 : obj  -42842.624"
[1] "Iteration  38 : obj  -42842.57"
[1] "Iteration  39 : obj  -42842.441"
[1] "Iteration  40 : obj  -42842.058"
[1] "Iteration  41 : obj  -42841.316"
[1] "Iteration  42 : obj  -42840.913"
[1] "Iteration  43 : obj  -42840.799"
[1] "Iteration  44 : obj  -42840.761"
[1] "Iteration  45 : obj  -42840.749"
[1] "Iteration  46 : obj  -42840.745"
[1] "Performing nullcheck"
[1] "Deleting factor  9  decreases objective by  30.848"
[1] "Fitting dimension  10"
[1] "Iteration  1 : obj  -42878.593"
[1] "loading zeroed out"
[1] "Performing nullcheck"
[1] "Deleting factor  10  increases objective by  0.014"
plot(fit_sf$ldf$l[,1],main="biwhitening+flash, estimated loadings 1")

Version Author Date
de0e454 DongyueXie 2023-03-18
plot(fit_sf$ldf$l[,2],main="biwhitening+flash, estimated loadings 1")

Version Author Date
de0e454 DongyueXie 2023-03-18
plot(fit_sf$ldf$l[,3],main="biwhitening+flash, estimated loadings 1")

Version Author Date
de0e454 DongyueXie 2023-03-18
fit_sf$pve
[1] 0.3444512531 0.3032855662 0.2955528179 0.0002778274 0.0005363181
[6] 0.0005213643 0.0007272142 0.0004340449 0.0005863254

Harder example, K=4

This is a harder example because there’s a background now, and we see that topic model cannot give sparse estimates.

However, biwhitening + ebnmf gives the sparse recovery, and also estimates the correct K.

#################
set.seed(12345)
n = 99
p = 300
k= 4
mfac = 3 # controls PVE of dense factor
L = matrix(0, nrow=n, ncol=k)
F = matrix(0, nrow=p, ncol=k)

L[1:(n/3),1] = 1
L[((n/3)+1):(2*n/3),2] = 1
L[((2*n/3)+1):n,3] = 1
L[,4] = 1+mfac*runif(n)

F[1:(p/3),1] = 1+10*runif(p/3)
F[((p/3)+1):(2*p/3),2] = 1+10*runif(p/3)
F[((2*p/3)+1):p,3] = 1+10*runif(p/3)
F[,4]= 1+mfac*runif(p)

lambda = L %*% t(F)
X = matrix(rpois(n=length(lambda),lambda),nrow=n)
image(X)

Version Author Date
de0e454 DongyueXie 2023-03-18
fit_tm = fastTopics::fit_poisson_nmf(X,4)
Initializing factors using Topic SCORE algorithm.
Initializing loadings by running 10 SCD updates.
Fitting rank-4 Poisson NMF to 99 x 300 dense matrix.
Running 100 SCD updates, without extrapolation (fastTopics 0.6-142).
plot(fit_tm$L[,1],main="Topic model, estimated loadings 1")

plot(fit_tm$L[,2],main="Topic model, estimated loadings 2")

plot(fit_tm$L[,3],main="Topic model, estimated loadings 3")

plot(fit_tm$L[,4],main="Topic model, estimated loadings 4")

Y_tilde = biwhitening(X)
fit_sf = scaledflash(Y_tilde$Y,Y_tilde$u,Y_tilde$v,
                     S2 = NULL,
                     var.type = 'by_column',
                     Kmax=10,
                     tol=0.01,
                     maxiter = 1000,
                     ebnm_fn = 'ebnm_pe',
                     init_fn = 'nnmf_r1',
                     ebnm_param=NULL,
                     verbose=TRUE,
                     nullcheck=TRUE,
                     sigma2 = NULL,
                     seed=12345)
[1] "Fitting dimension  1"
[1] "Iteration  1 : obj  -54431.147"
[1] "Iteration  2 : obj  -54429.233"
[1] "Iteration  3 : obj  -54429.154"
[1] "Iteration  4 : obj  -54429.134"
[1] "Iteration  5 : obj  -54429.129"
[1] "Performing nullcheck"
[1] "Deleting factor  1  decreases objective by  22965.943"
[1] "Fitting dimension  2"
[1] "Iteration  1 : obj  -52811.664"
[1] "Iteration  2 : obj  -52810.99"
[1] "Iteration  3 : obj  -52810.989"
[1] "Performing nullcheck"
[1] "Deleting factor  2  decreases objective by  1618.139"
[1] "Fitting dimension  3"
[1] "Iteration  1 : obj  -51163.449"
[1] "Iteration  2 : obj  -51162.824"
[1] "Iteration  3 : obj  -51162.823"
[1] "Performing nullcheck"
[1] "Deleting factor  3  decreases objective by  1648.165"
[1] "Fitting dimension  4"
[1] "Iteration  1 : obj  -49454.453"
[1] "Iteration  2 : obj  -49453.841"
[1] "Iteration  3 : obj  -49453.84"
[1] "Performing nullcheck"
[1] "Deleting factor  4  decreases objective by  1708.983"
[1] "Fitting dimension  5"
[1] "factor zeroed out"
[1] "Performing nullcheck"
[1] "Deleting factor  5  increases objective by  15.974"
plot(fit_sf$ldf$l[,1],main="biwhitening+flash, estimated loadings 1")

plot(fit_sf$ldf$l[,2],main="biwhitening+flash, estimated loadings 2")

plot(fit_sf$ldf$l[,3],main="biwhitening+flash, estimated loadings 3")

plot(fit_sf$ldf$l[,4],main="biwhitening+flash, estimated loadings 4")

library(RcppML)
library(NMF)
Loading required package: registry
Loading required package: rngtools
Loading required package: cluster
NMF - BioConductor layer [OK] | Shared memory capabilities [NO: bigmemory] | Cores 27/28
  To enable shared memory capabilities, try: install.extras('
NMF
')

Attaching package: 'NMF'
The following object is masked from 'package:RcppML':

    nmf
fitted_rcppml_nmf = function(fit){
  fit$w%*%diag(fit$d)%*%fit$h
}
n_try = 10
fit_nmf1_best = RcppML::nmf(X,4,L1=c(0.99,0.99),seed=0)

iter |      tol
---------------
   1 | 8.09e-01
   2 | 2.71e-02
   3 | 4.40e-03
   4 | 2.23e-03
   5 | 1.19e-03
   6 | 6.44e-04
   7 | 3.55e-04
   8 | 2.08e-04
   9 | 1.28e-04
  10 | 7.98e-05
error_best = sum((X-fitted_rcppml_nmf(fit_nmf1_best))^2)
for(i in 1:n_try){
  fit_nmf1 = RcppML::nmf(X,4,L1=c(0.99,0.99),seed=i)
  error = sum((X-fitted_rcppml_nmf(fit_nmf1))^2)
  if(error<error_best){
    fit_nmf1_best = fit_nmf1
    error_best = error
  }
}

iter |      tol
---------------
   1 | 6.07e-01
   2 | 1.69e-01
   3 | 1.12e-02
   4 | 4.37e-03
   5 | 2.08e-03
   6 | 1.07e-03
   7 | 6.09e-04
   8 | 3.67e-04
   9 | 2.31e-04
  10 | 1.52e-04
  11 | 1.05e-04
  12 | 7.60e-05

iter |      tol
---------------
   1 | 7.79e-01
   2 | 1.52e-02
   3 | 5.08e-03
   4 | 2.30e-03
   5 | 1.07e-03
   6 | 5.71e-04
   7 | 3.49e-04
   8 | 2.28e-04
   9 | 1.53e-04
  10 | 1.12e-04
  11 | 8.42e-05

iter |      tol
---------------
   1 | 7.68e-01
   2 | 2.03e-02
   3 | 5.41e-03
   4 | 2.06e-03
   5 | 1.14e-03
   6 | 7.65e-04
   7 | 5.40e-04
   8 | 4.00e-04
   9 | 3.09e-04
  10 | 2.40e-04
  11 | 1.88e-04
  12 | 1.46e-04
  13 | 1.14e-04
  14 | 9.07e-05

iter |      tol
---------------
   1 | 8.17e-01
   2 | 4.12e-02
   3 | 3.62e-03
   4 | 2.29e-03
   5 | 1.80e-03
   6 | 1.50e-03
   7 | 1.44e-03
   8 | 1.37e-03
   9 | 1.27e-03
  10 | 1.13e-03
  11 | 9.70e-04
  12 | 8.48e-04
  13 | 7.20e-04
  14 | 6.00e-04
  15 | 4.88e-04
  16 | 3.91e-04
  17 | 3.15e-04
  18 | 2.56e-04
  19 | 2.07e-04
  20 | 1.73e-04
  21 | 1.51e-04
  22 | 1.36e-04
  23 | 1.26e-04
  24 | 1.20e-04
  25 | 1.16e-04
  26 | 1.13e-04
  27 | 1.10e-04
  28 | 1.06e-04
  29 | 1.03e-04
  30 | 9.99e-05

iter |      tol
---------------
   1 | 7.34e-01
   2 | 1.93e-02
   3 | 6.65e-03
   4 | 3.30e-03
   5 | 1.76e-03
   6 | 1.02e-03
   7 | 7.06e-04
   8 | 5.46e-04
   9 | 4.44e-04
  10 | 3.61e-04
  11 | 2.94e-04
  12 | 2.40e-04
  13 | 1.97e-04
  14 | 1.63e-04
  15 | 1.37e-04
  16 | 1.20e-04
  17 | 1.09e-04
  18 | 1.00e-04
  19 | 9.23e-05

iter |      tol
---------------
   1 | 7.68e-01
   2 | 4.48e-02
   3 | 4.29e-03
   4 | 2.70e-03
   5 | 1.85e-03
   6 | 1.31e-03
   7 | 8.84e-04
   8 | 6.19e-04
   9 | 4.66e-04
  10 | 3.68e-04
  11 | 3.00e-04
  12 | 2.56e-04
  13 | 2.21e-04
  14 | 1.89e-04
  15 | 1.58e-04
  16 | 1.32e-04
  17 | 1.07e-04
  18 | 8.61e-05

iter |      tol
---------------
   1 | 7.99e-01
   2 | 5.48e-02
   3 | 6.56e-03
   4 | 3.81e-03
   5 | 2.63e-03
   6 | 1.97e-03
   7 | 1.63e-03
   8 | 1.49e-03
   9 | 1.43e-03
  10 | 1.39e-03
  11 | 1.36e-03
  12 | 1.32e-03
  13 | 1.23e-03
  14 | 1.16e-03
  15 | 1.08e-03
  16 | 1.01e-03
  17 | 9.11e-04
  18 | 7.99e-04
  19 | 6.81e-04
  20 | 5.79e-04
  21 | 4.86e-04
  22 | 4.05e-04
  23 | 3.27e-04
  24 | 2.65e-04
  25 | 2.19e-04
  26 | 1.85e-04
  27 | 1.58e-04
  28 | 1.36e-04
  29 | 1.17e-04
  30 | 1.01e-04
  31 | 9.15e-05

iter |      tol
---------------
   1 | 5.89e-01
   2 | 2.00e-01
   3 | 8.29e-03
   4 | 4.02e-03
   5 | 2.04e-03
   6 | 1.18e-03
   7 | 7.62e-04
   8 | 5.30e-04
   9 | 3.98e-04
  10 | 3.17e-04
  11 | 2.61e-04
  12 | 2.20e-04
  13 | 1.84e-04
  14 | 1.54e-04
  15 | 1.31e-04
  16 | 1.12e-04
  17 | 9.48e-05

iter |      tol
---------------
   1 | 7.77e-01
   2 | 2.56e-02
   3 | 5.42e-03
   4 | 3.41e-03
   5 | 2.58e-03
   6 | 1.92e-03
   7 | 1.29e-03
   8 | 8.46e-04
   9 | 5.83e-04
  10 | 4.25e-04
  11 | 3.26e-04
  12 | 2.59e-04
  13 | 2.09e-04
  14 | 1.75e-04
  15 | 1.50e-04
  16 | 1.33e-04
  17 | 1.20e-04
  18 | 1.10e-04
  19 | 1.02e-04
  20 | 9.43e-05

iter |      tol
---------------
   1 | 7.34e-01
   2 | 1.55e-02
   3 | 2.40e-03
   4 | 1.02e-03
   5 | 5.00e-04
   6 | 2.80e-04
   7 | 1.80e-04
   8 | 1.26e-04
   9 | 9.25e-05
fitted_nmf2 = function(fit){
  fit@fit@W%*%fit@fit@H
}
beta = 0.5
fit_nmf2_best = NMF::nmf(X,4,'snmf/l',beta = beta,seed=0)
Warning in nmf_snmf(beta = 0.5, A = y, x = x, version = "L", verbose = FALSE):
NMF::snmf - Too many restarts due to too big 'beta' value [Computation stopped
after the 9th restart]
error_best = sum((X-fitted_nmf2(fit_nmf2_best))^2)
for(i in 1:n_try){
  fit_nmf2 = NMF::nmf(X,4,'snmf/l',beta = beta,seed=i)
  error = sum((X-fitted_nmf2(fit_nmf2))^2)
  if(error<error_best){
    fit_nmf2_best = fit_nmf2
    error_best = error
  }
}
Warning in nmf_snmf(beta = 0.5, A = y, x = x, version = "L", verbose = FALSE):
NMF::snmf - Too many restarts due to too big 'beta' value [Computation stopped
after the 9th restart]

Warning in nmf_snmf(beta = 0.5, A = y, x = x, version = "L", verbose = FALSE):
NMF::snmf - Too many restarts due to too big 'beta' value [Computation stopped
after the 9th restart]

Warning in nmf_snmf(beta = 0.5, A = y, x = x, version = "L", verbose = FALSE):
NMF::snmf - Too many restarts due to too big 'beta' value [Computation stopped
after the 9th restart]

Warning in nmf_snmf(beta = 0.5, A = y, x = x, version = "L", verbose = FALSE):
NMF::snmf - Too many restarts due to too big 'beta' value [Computation stopped
after the 9th restart]

Warning in nmf_snmf(beta = 0.5, A = y, x = x, version = "L", verbose = FALSE):
NMF::snmf - Too many restarts due to too big 'beta' value [Computation stopped
after the 9th restart]

Warning in nmf_snmf(beta = 0.5, A = y, x = x, version = "L", verbose = FALSE):
NMF::snmf - Too many restarts due to too big 'beta' value [Computation stopped
after the 9th restart]

Warning in nmf_snmf(beta = 0.5, A = y, x = x, version = "L", verbose = FALSE):
NMF::snmf - Too many restarts due to too big 'beta' value [Computation stopped
after the 9th restart]

Warning in nmf_snmf(beta = 0.5, A = y, x = x, version = "L", verbose = FALSE):
NMF::snmf - Too many restarts due to too big 'beta' value [Computation stopped
after the 9th restart]
my_ldf = function(Lhat,Fhat){
  dl = apply(Lhat,2,norm,type='2')
  df = apply(Fhat,2,norm,type='2')
  return(list(l = apply(Lhat,2,function(z){z/norm(z,'2')}),
              f = apply(Fhat,2,function(z){z/norm(z,'2')}),
              d = dl*df))
}
library(ggplot2)
library(gridExtra)

Attaching package: 'gridExtra'
The following object is masked from 'package:Biobase':

    combine
The following object is masked from 'package:BiocGenerics':

    combine
library(grid)
plots = list()
for(i in 1:4){
  temp = my_ldf(L,F)
  data <- data.frame(x=1:99,y =temp$l[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("True L"))))

for(i in 1:4){
  temp = my_ldf(fit_tm$L,fit_tm$F)
  data <- data.frame(x=1:99,y =temp$l[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("fastTopics::fit_poisson_nmf"))))

for(i in 1:4){
  temp = my_ldf(fit_sf$ldf$l,fit_sf$ldf$f)
  data <- data.frame(x=1:99,y =temp$l[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("Biwhitening EBNMF"))))

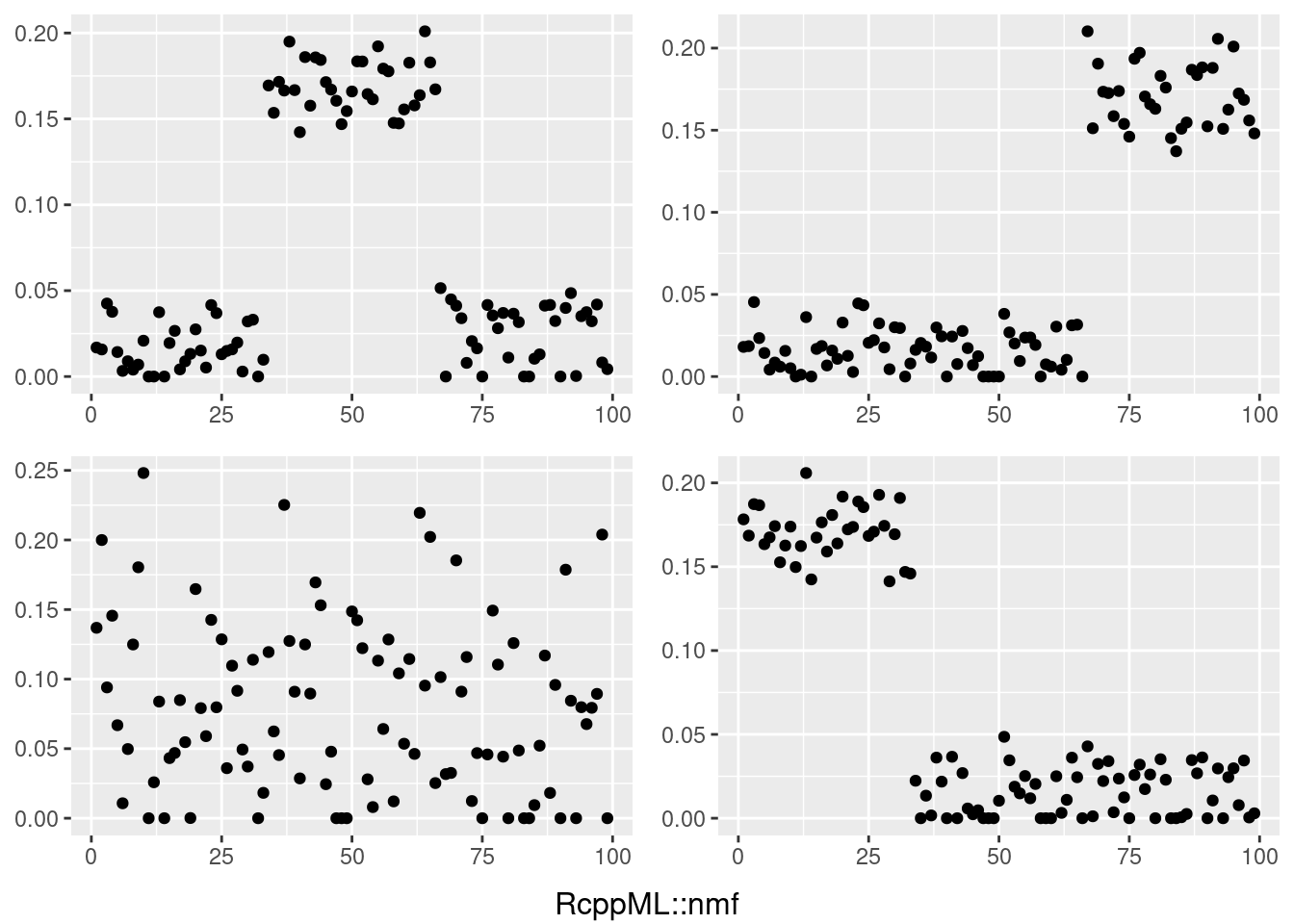

for(i in 1:4){
  temp = my_ldf(fit_nmf1_best$w,t(fit_nmf1_best$h))
  data <- data.frame(x=1:99,y =temp$l[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("RcppML::nmf"))))

for(i in 1:4){
  temp = my_ldf(fit_nmf2_best@fit@W,t(fit_nmf2_best@fit@H))
  data <- data.frame(x=1:99,y =temp$l[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("NMF::nmf"))))

plot F

plots = list()
for(i in 1:4){
  temp = my_ldf(L,F)
  data <- data.frame(x=1:300,y =temp$f[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("True F"))))

for(i in 1:4){
  temp = my_ldf(fit_tm$L,fit_tm$F)
  data <- data.frame(x=1:300,y =temp$f[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("fastTopics::fit_poisson_nmf"))))

for(i in 1:4){
  temp = my_ldf(fit_sf$ldf$l,fit_sf$ldf$f)
  data <- data.frame(x=1:300,y =temp$f[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("Biwhitening EBNMF"))))

for(i in 1:4){
  temp = my_ldf(fit_nmf1_best$w,t(fit_nmf1_best$h))
  data <- data.frame(x=1:300,y =temp$f[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("RcppML::nmf"))))

for(i in 1:4){
  temp = my_ldf(fit_nmf2_best@fit@W,t(fit_nmf2_best@fit@H))
  data <- data.frame(x=1:300,y =temp$f[,i])
  plots[[i]] <- ggplot(data, aes(x = x,y=y)) + geom_point() + theme(axis.title.x = element_blank(),axis.title.y = element_blank())
}
do.call(grid.arrange,c(plots,list(nrow=2,bottom=textGrob("NMF::nmf"))))


sessionInfo()
R version 4.1.0 (2021-05-18)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: CentOS Linux 7 (Core)

Matrix products: default
BLAS:   /software/R-4.1.0-no-openblas-el7-x86_64/lib64/R/lib/libRblas.so
LAPACK: /software/R-4.1.0-no-openblas-el7-x86_64/lib64/R/lib/libRlapack.so

locale:
 [1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C         LC_TIME=C
 [4] LC_COLLATE=C         LC_MONETARY=C        LC_MESSAGES=C
 [7] LC_PAPER=C           LC_NAME=C            LC_ADDRESS=C
[10] LC_TELEPHONE=C       LC_MEASUREMENT=C     LC_IDENTIFICATION=C

attached base packages:
[1] grid      stats     graphics  grDevices utils     datasets  methods
[8] base

other attached packages:
 [1] gridExtra_2.3       ggplot2_3.4.1       NMF_0.25
 [4] Biobase_2.54.0      BiocGenerics_0.40.0 cluster_2.1.2
 [7] rngtools_1.5        registry_0.5-1      RcppML_0.3.7
[10] funflash_0.1.2      workflowr_1.6.2

loaded via a namespace (and not attached):
  [1] Rtsne_0.16          colorspace_2.1-0    smashr_1.3-6
  [4] ellipsis_0.3.2      rprojroot_2.0.2     fastTopics_0.6-142
  [7] fs_1.5.0            rstudioapi_0.13     farver_2.1.1
 [10] MatrixModels_0.5-1  ggrepel_0.9.3       fansi_1.0.4
 [13] codetools_0.2-18    splines_4.1.0       doParallel_1.0.17
 [16] knitr_1.33          jsonlite_1.8.4      mcmc_0.9-7
 [19] gridBase_0.4-7      ashr_2.2-54         flashr_0.6-8
 [22] uwot_0.1.14         BiocManager_1.30.20 compiler_4.1.0
 [25] httr_1.4.5          Matrix_1.5-3        fastmap_1.1.0
 [28] lazyeval_0.2.2      cli_3.6.0           later_1.3.0
 [31] htmltools_0.5.4     quantreg_5.94       prettyunits_1.1.1
 [34] tools_4.1.0         coda_0.19-4         gtable_0.3.1
 [37] glue_1.6.2          reshape2_1.4.4      dplyr_1.1.0
 [40] Rcpp_1.0.10         softImpute_1.4-1    jquerylib_0.1.4
 [43] vctrs_0.5.2         iterators_1.0.13    wavethresh_4.7.2
 [46] xfun_0.24           stringr_1.5.0       trust_0.1-8
 [49] lifecycle_1.0.3     irlba_2.3.5.1       NNLM_0.4.4
 [52] MASS_7.3-54         scales_1.2.1        hms_1.1.2
 [55] promises_1.2.0.1    parallel_4.1.0      SparseM_1.81
 [58] RColorBrewer_1.1-3  yaml_2.3.7          pbapply_1.7-0
 [61] sass_0.4.0          stringi_1.6.2       SQUAREM_2021.1
 [64] highr_0.9           deconvolveR_1.2-1   foreach_1.5.1
 [67] caTools_1.18.2      truncnorm_1.0-8     horseshoe_0.2.0
 [70] rlang_1.0.6         pkgconfig_2.0.3     bitops_1.0-7
 [73] ebnm_1.0-11         evaluate_0.14       lattice_0.20-44
 [76] invgamma_1.1        purrr_1.0.1         labeling_0.4.2
 [79] htmlwidgets_1.6.1   cowplot_1.1.1       tidyselect_1.2.0
 [82] plyr_1.8.6          magrittr_2.0.3      R6_2.5.1
 [85] generics_0.1.3      DBI_1.1.1           withr_2.5.0
 [88] pillar_1.8.1        whisker_0.4         survival_3.2-11
 [91] mixsqp_0.3-48       tibble_3.1.8        crayon_1.5.2
 [94] utf8_1.2.3          plotly_4.10.1       rmarkdown_2.9
 [97] progress_1.2.2      data.table_1.14.8   git2r_0.28.0
[100] digest_0.6.31       tidyr_1.3.0         httpuv_1.6.1
[103] MCMCpack_1.6-3      RcppParallel_5.1.7  munsell_0.5.0
[106] viridisLite_0.4.1   bslib_0.2.5.1       quadprog_1.5-8
