ploter2 = function(EF1,EF2=NULL,main1=NULL,main2=NULL){
  if(!is.null(EF2)){

    p = nrow(EF1)
    temp = max(ncol(EF1),ncol(EF2))
    if(temp!=0){

      par(mfrow=c(2,temp))
    if(ncol(EF1)>0){

      for(k in 1:ncol(EF1)){
      plot(EF1[1:(p/2),k],type='l',ylim = range(EF1[,k]),ylab=paste('f',k,sep=''),xlab='',main=main1)
      lines(EF1[(p/2+1):(p),k],type='l',col=4)
      }

    }
    if(ncol(EF2)>0){
      for(k in 1:ncol(EF2)){
      plot(EF2[1:(p/2),k],type='l',ylim = range(EF2[,k]),ylab=paste('f',k,sep=''),xlab='',main=main2)
      lines(EF2[(p/2+1):(p),k],type='l',col=4)
    }
    }


    }


  }else{
    p = nrow(EF1)
    par(mfrow=c(ncol(EF1),1))
    for(k in 1:ncol(EF1)){
      plot(EF1[1:(p/2),k],type='l',ylim = range(EF1[,k]),ylab=paste('f',k,sep=''),xlab='',main=main1)
      lines(EF1[(p/2+1):(p),k],type='l',col=4)
    }
  }

}

source('code/smooth_flash.R')

Loading required package: usethis

Loading flashr

Attaching package: 'testthat'

The following object is masked from 'package:devtools':

    test_file

Loading required package: MASS

WaveThresh: R wavelet software, release 4.6.8, installed

Copyright Guy Nason and others 1993-2016

Note: nlevels has been renamed to nlevelsWT

Attaching package: 'wavethresh'

The following object is masked from 'package:devtools':

    wd

source('code/wave_ebmf.R')

Loading flashr

Introduction

Here we look at how smoothness plays a role in the revealing of the structure.

Start from Gaussian case.

n = 45
p = 256
K= 3

FF = matrix(0, nrow=p, ncol=K)
f1 = 3
f2 = 1
FF[(p/8*1):(p/8*2),1] = f1
FF[(p/8*3):(p/8*4),2] = f2
FF[(p/8*5):(p/8*7),3] = f1

FF2 = matrix(0, nrow=p, ncol=K)
FF2[(p/8*1):(p/8*2),1] = f2
FF2[(p/8*3+10):(p/8*4-10),2] = f1
FF2[(p/8*5):(p/8*7),3] = f2

FFF = cbind(c(FF[,1],FF2[,3]),c(FF[,2],FF2[,2]),c(FF[,3],FF2[,1]))

par(mfrow=c(3,1))
for(k in 1:K){
  plot(FFF[1:p,k],type='l',ylim = range(FFF),xlab='',ylab=paste('f',k,sep=''))
  lines(FFF[(p+1):(2*p),k],type='l',col=4)
}

Past versions of unnamed-chunk-2-1.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

l0 = 0
l1 = 3
L = cbind(c(rep(l1,n/3),rep(l0,n/3*2)),
          c(rep(l0,n/3),rep(l1,n/3),rep(l0,n/3)),
          c(rep(l0,n/3*2),rep(l1,n/3)))


library(reshape2)
library(ggplot2)
LL=  melt(L)
ggplot(LL, aes(x = Var2, y = Var1)) + geom_raster(aes(fill=value)) +
  scale_fill_gradient(low="grey90", high="red") +
  labs(x="column", y="row", title="L")

Past versions of unnamed-chunk-2-2.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

For each level of \(\sigma^2\), the variance of random noise, we plot the recovered structure from multiple runs.

apply(tcrossprod(L,FFF),1,sd)

 [1] 2.334636 2.334636 2.334636 2.334636 2.334636 2.334636 2.334636 2.334636
 [9] 2.334636 2.334636 2.334636 2.334636 2.334636 2.334636 2.334636 1.569571
[17] 1.569571 1.569571 1.569571 1.569571 1.569571 1.569571 1.569571 1.569571
[25] 1.569571 1.569571 1.569571 1.569571 1.569571 1.569571 3.016010 3.016010
[33] 3.016010 3.016010 3.016010 3.016010 3.016010 3.016010 3.016010 3.016010
[41] 3.016010 3.016010 3.016010 3.016010 3.016010

s_list = c(1,2,3,5,10,15,20)
#s_list = c(1)
niter = 10
seed=0
for(s in s_list){
  for(iter in 1:niter){
    seed=seed+1
    set.seed(seed)
   y = tcrossprod(L,FFF) + matrix(rnorm(n*p*2,0,s),nrow=n,ncol=p*2)
   fit.flash = flash(y,var_type = 'by_row',verbose = FALSE)
   fit.dwt = wave_ebmf(y,verbose = FALSE)

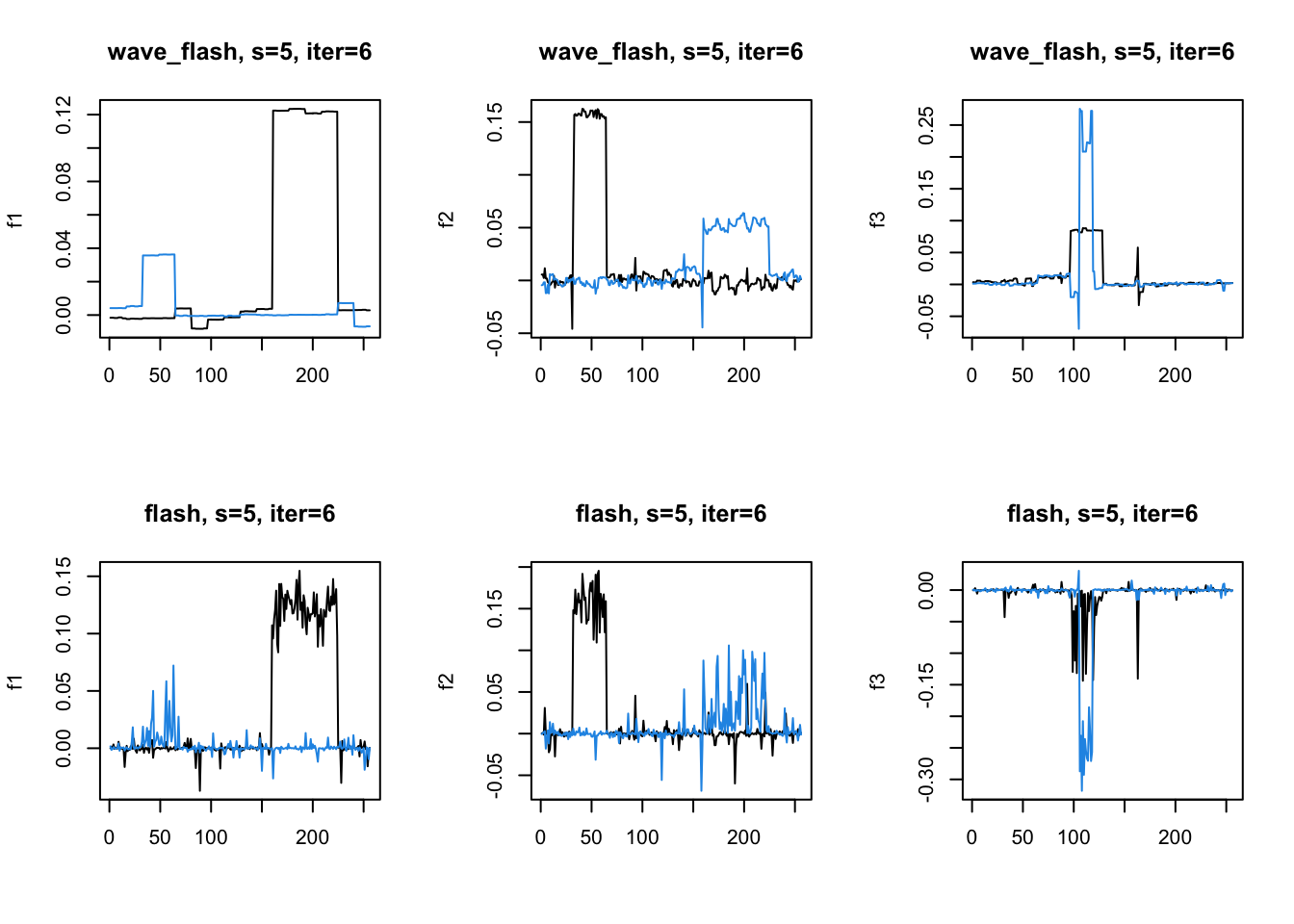

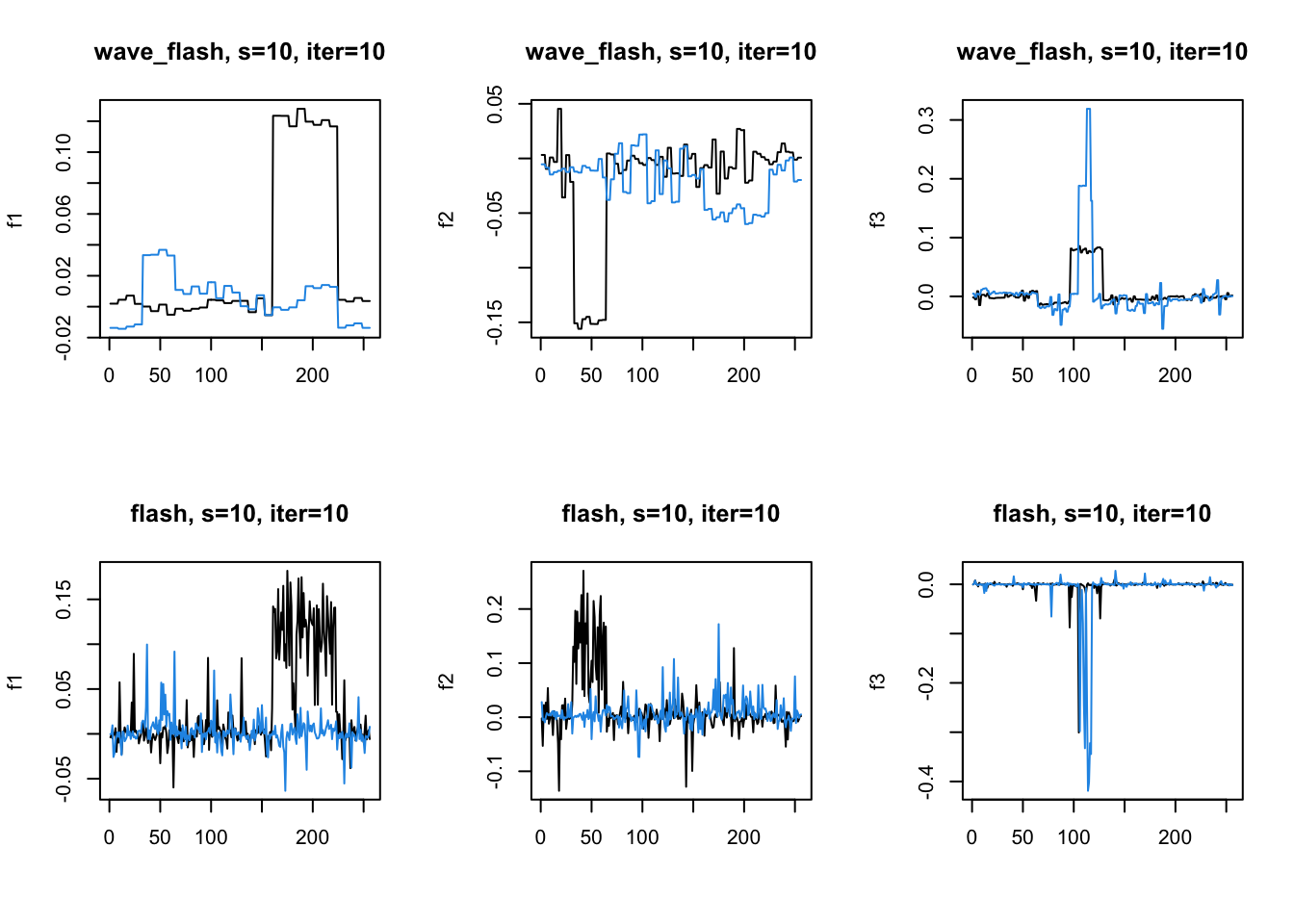

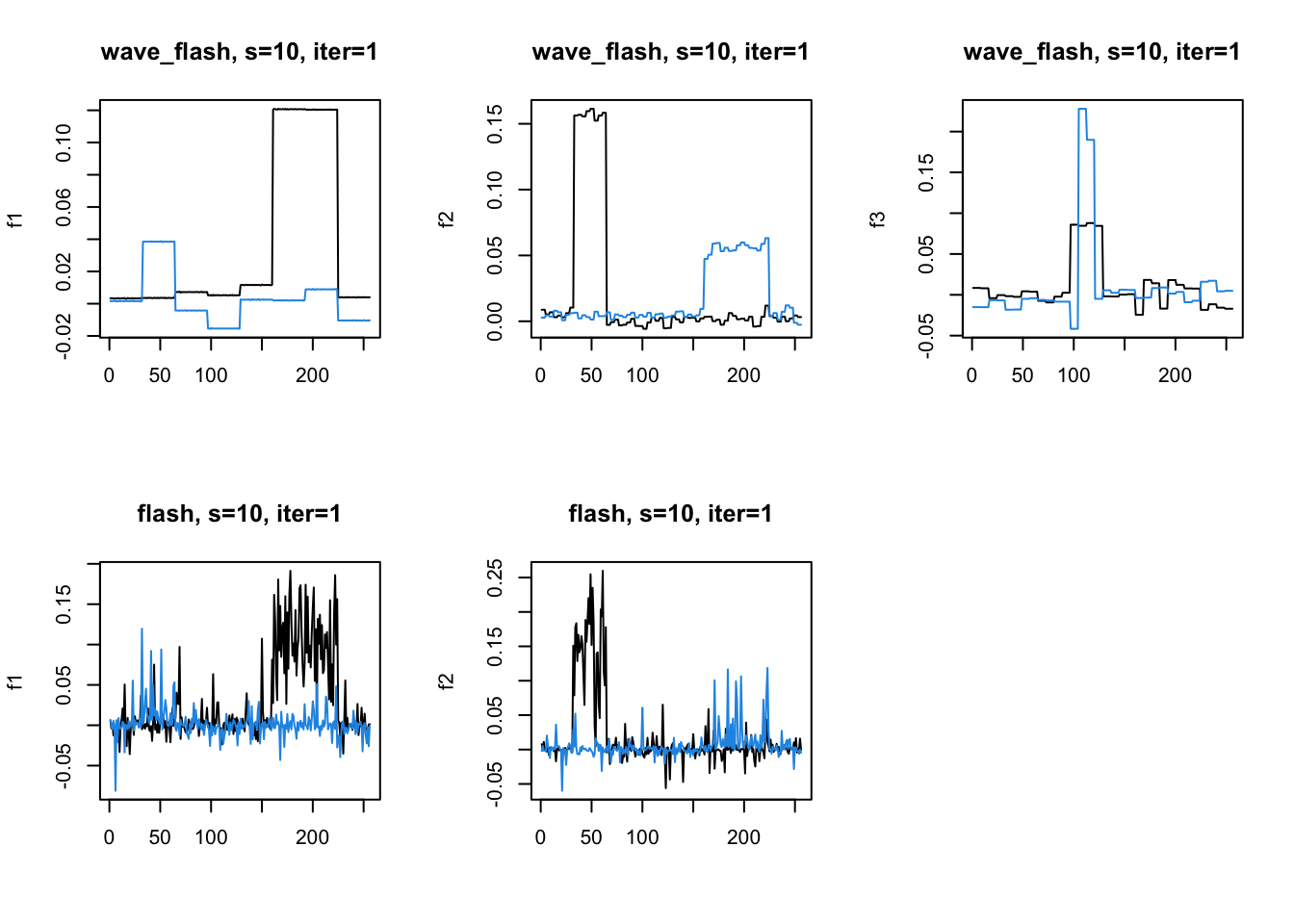

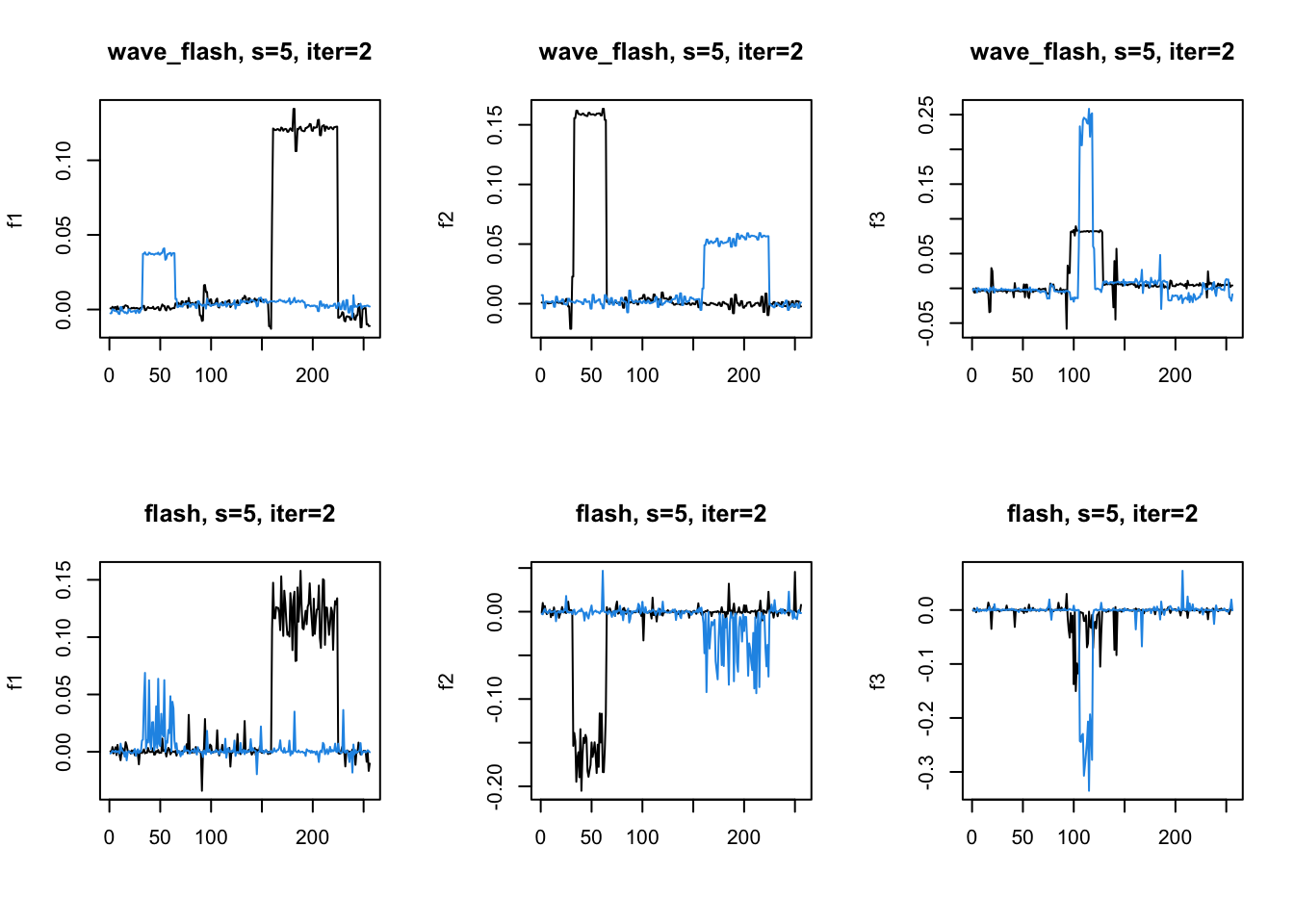

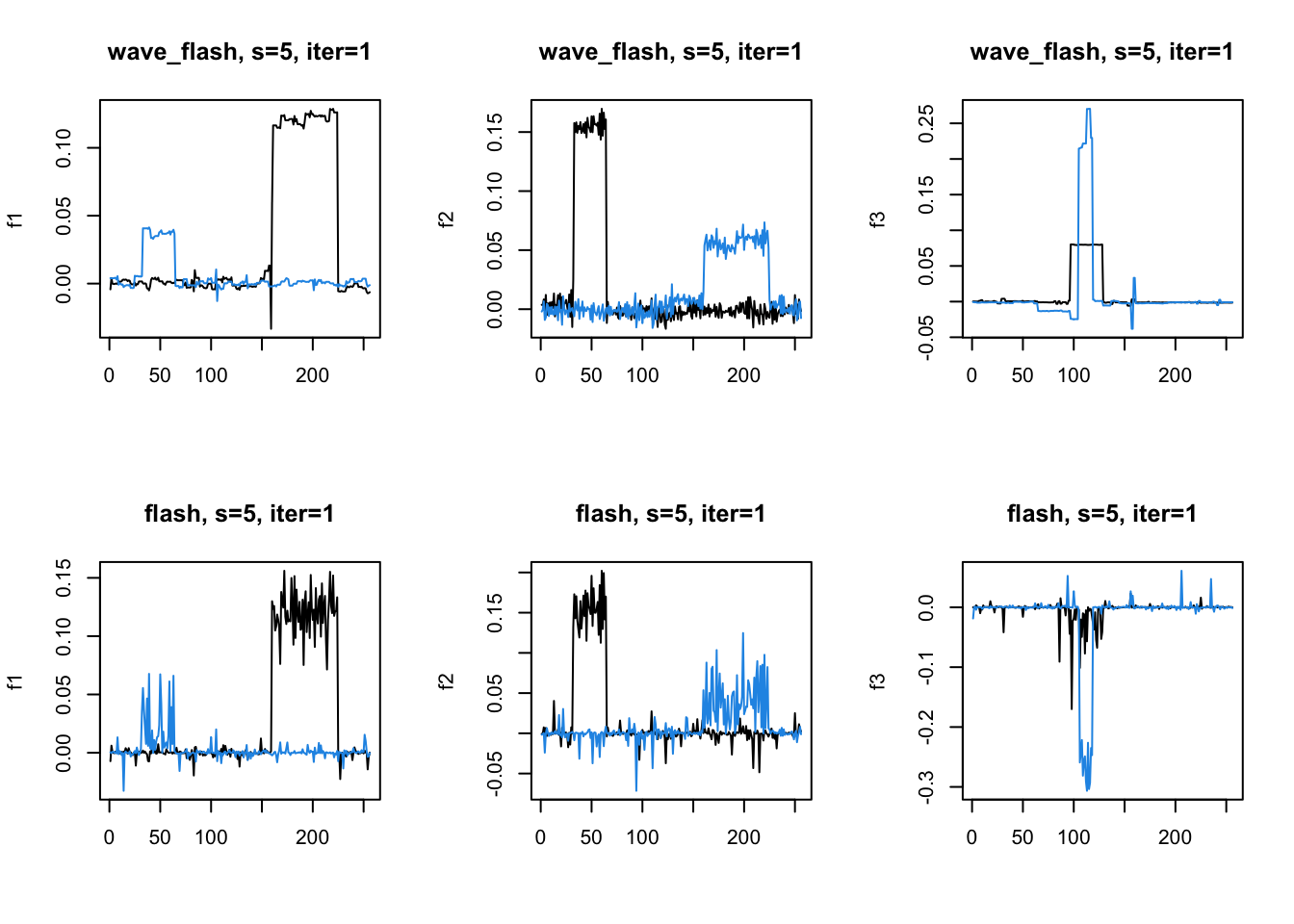

   ploter2(fit.dwt$ldf$f,fit.flash$ldf$f,main1=paste('wave_flash, s=',s,', iter=',iter,sep=''),main2=paste('flash, s=',s,', iter=',iter,sep=''))
  }
}

Past versions of unnamed-chunk-3-1.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-2.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-3.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-4.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-5.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-6.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-7.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-8.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-9.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-10.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-11.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-12.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-13.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-14.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-15.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-16.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-17.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-18.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-19.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-20.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-21.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-22.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-23.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-24.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-25.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-26.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-27.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-28.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-29.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-30.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-31.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-32.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-33.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-34.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02

Past versions of unnamed-chunk-3-35.png

Version	Author	Date
56752d9	Dongyue Xie	2021-11-02
