Introduction
library(MoMA)Generate some data
get.X <- function(n=50,p=200,snr=1) {
#n <- 50
#p <- 200
K <- 3
#snr <- 1
## Step 1: sample U, an orthogonal matrix
rand_semdef_sym_mat <- crossprod(matrix(runif(n * n), n, n))
rand_ortho_mat <- eigen(rand_semdef_sym_mat)$vector[, 1:K]
u_1 <- rand_ortho_mat[, 1]
u_2 <- rand_ortho_mat[, 2]
u_3 <- rand_ortho_mat[, 3]
## Step 2: generate V, the signal
set_zero_n_scale <- function(x, index_set) {
x[index_set] <- 0
x <- x / sqrt(sum(x^2))
x
}
b_1 <- 7 / 20 * p
b_2 <- 13 / 20 * p
x <- as.vector(seq(p))
# Sinusoidal signal
v_1 <- sin((x + 15) * pi / 17)
v_1 <- set_zero_n_scale(v_1, b_1:p)
# Gaussian-modulated sinusoidal signal
v_2 <- exp(-(x - 100)^2 / 650) * sin((x - 100) * 2 * pi / 21)
v_2 <- set_zero_n_scale(v_2, c(1:b_1, b_2:p))
# Sinusoidal signal
v_3 <- sin((x - 40) * pi / 30)
v_3 <- set_zero_n_scale(v_3, 1:b_2)
## Step 3, the noise
eps <- matrix(rnorm(n * p), n, p)
## Step 4, put the pieces together
X <- n / 3 * u_1 %*% t(v_1) +
n / 5 * u_2 %*% t(v_2) +
n / 6 * u_3 %*% t(v_3) +
eps
# Print the noise-to-signal ratio
cat(paste("norm(X) / norm(noise) = ", norm(X) / norm(eps)))
# Plot the signals
yrange <- max(c(v_1, v_2, v_3))
plot(v_1,
type = "l",
ylim = c(-yrange, yrange),
ylab = "v", xlab = "i",
main = "Plot of Signals"
)
lines(v_2, col = "blue")
lines(v_3, col = "red")
legend(0, 0.25,
legend = expression(v[1], v[2], v[3]),
lty = 1,
col = c("black", "blue", "red"),
cex = 0.6
)
return(list(X=X,L = cbind(u_1,u_2,u_3),FF=cbind(v_1,v_2,v_3)))
}set.seed(12345)
Y = get.X(n=100)norm(X) / norm(noise) = 1.11002809535406
X = Y$XOmega_v <- second_diff_mat(200)
res <- moma_sfpca(X,
center = FALSE,
v_sparse = moma_lasso(lambda = 1),
v_smooth = moma_smoothness(Omega_v, alpha = 2)
)Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 1]v_moma <- res$get_mat_by_index()$V
v_svd <- svd(X)$v[, 1]
par(mfrow = c(1, 2))
plot(v_moma,
type = "l",
ylab = expression(v[MoMA]),
main = expression(paste(lambda[v] == 1, ", ", alpha[v] == 2))
)
plot(v_svd,
type = "l",
ylab = expression(v[SVD]),
main = expression(paste(lambda[v] == 0, ", ", alpha[v] == 0))
)
res <- moma_sfpca(X,
center = FALSE,
v_sparse = moma_lasso(lambda = seq(0, 3, length.out = 9)),
v_smooth = moma_smoothness(Omega_v, alpha = 2),
rank = 1
)Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 0]Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 0.375]Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 0.75]Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 1.125]Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 1.5]Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 1.875]Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 2.25]Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 2.625]Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 3]par(mfrow = c(3, 3))

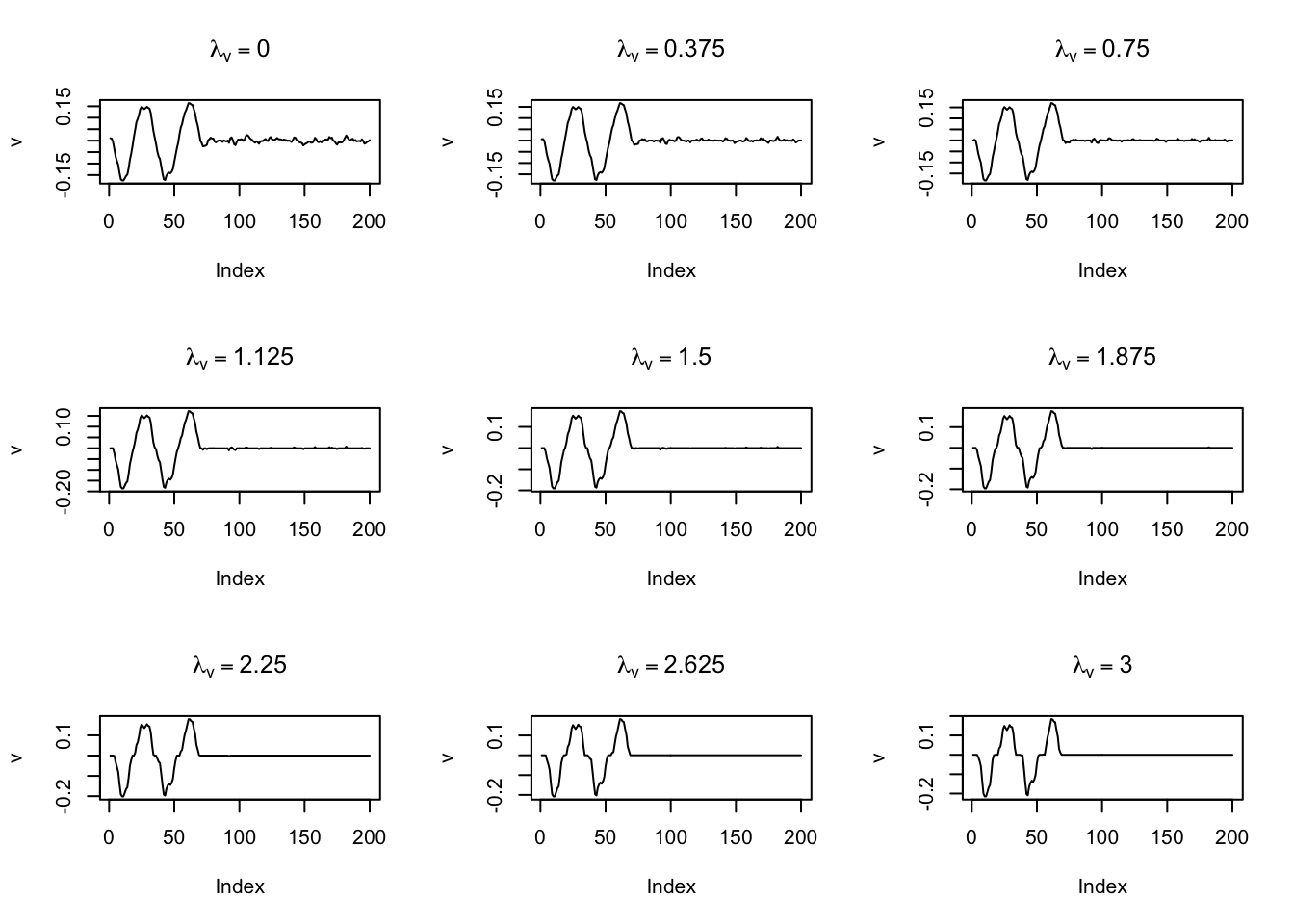

for (i in 1:9) {
res_i <- res$get_mat_by_index(lambda_v = i)
plot(res_i$V,
main = bquote(lambda[v] == .(res_i$chosen_lambda_v)),
ylab = "v",
type = "l"
)
}
Nested BIC
res <- moma_sfpca(
X,
center = FALSE,
v_sparse = moma_lasso(
lambda = seq(0, 3, length.out = 40),
select_scheme = "b"
),
v_smooth = moma_smoothness(Omega_v, alpha = 2)
)$get_mat_by_index()Start a final run on the chosen parameters.[av, au, lu, lv] = [2, 0, 0, 2.92308]par(mfrow=c(1,1))
plot(res$V,
ylab = "v",
type = "l",
main = bquote(lambda[v] == .(res$chosen_lambda_v))
)
rank 3
BIC
res <- moma_sfpca(
X,
center = FALSE,
v_sparse = moma_lasso(
lambda = seq(0, 3, length.out = 40),
select_scheme = "b"
),
v_smooth = moma_smoothness(Omega_v,
alpha = seq(0, 3, length.out = 40),
select_scheme = "b"),
rank = 3,
deflation_scheme = "PCA_Schur_Complement"
)Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 2.84615]Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 3]plot(res$get_mat_by_index()$V[,1],type='l')
plot(res$get_mat_by_index()$V[,2],type='l')
plot(res$get_mat_by_index()$V[,3],type='l')
grid search.

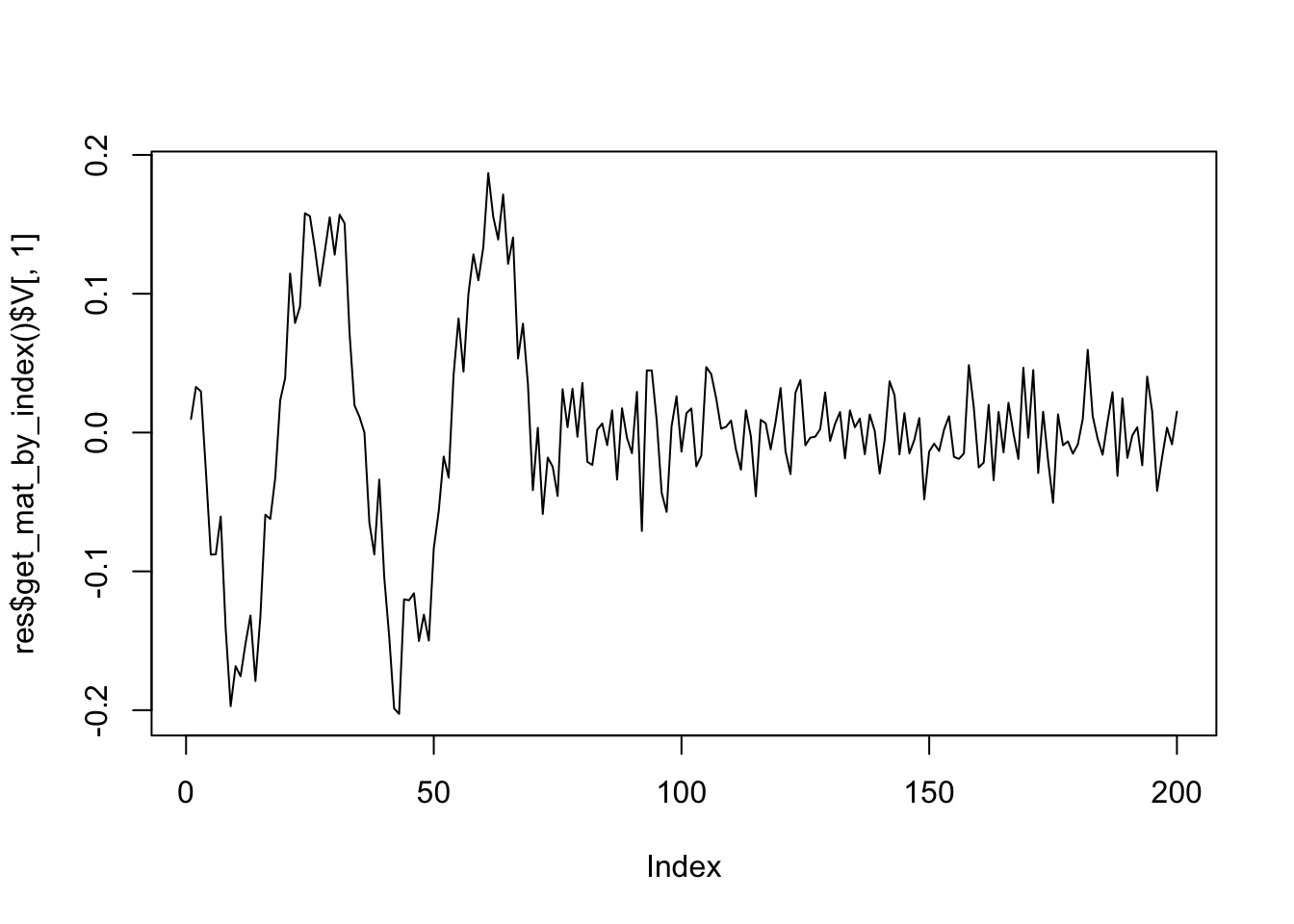

res <- moma_sfpca(
X,
center = FALSE,
v_sparse = moma_lasso(
lambda = seq(0, 3, length.out = 6)
),
v_smooth = moma_smoothness(Omega_v, alpha = seq(0, 3, length.out = 6)),
rank = 3,
deflation_scheme = "PCA_Schur_Complement"
)Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 0]Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 0.6]Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 1.2]Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 1.8]Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 2.4]Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 3]Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 0]Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 0.6]Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 1.2]Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 1.8]Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 2.4]Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0.6, 0, 0, 3]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 0]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 0.6]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 1.2]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 1.8]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 2.4]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.2, 0, 0, 3]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 0]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 0.6]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 1.2]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 1.8]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 2.4]Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [1.8, 0, 0, 3]Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 0]Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 0.6]Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 1.2]Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 1.8]Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 2.4]Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [2.4, 0, 0, 3]Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 0]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 0]Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 0.6]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 0.6]Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 1.2]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 1.2]Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 1.8]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 1.8]Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 2.4]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 2.4]Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 3]
Start a final run on the chosen parameters.[av, au, lu, lv] = [3, 0, 0, 3]plot(res$get_mat_by_index()$V[,1],type='l')
plot(res$get_mat_by_index()$V[,2],type='l')
plot(res$get_mat_by_index()$V[,3],type='l')
Try flash
library(flashr)

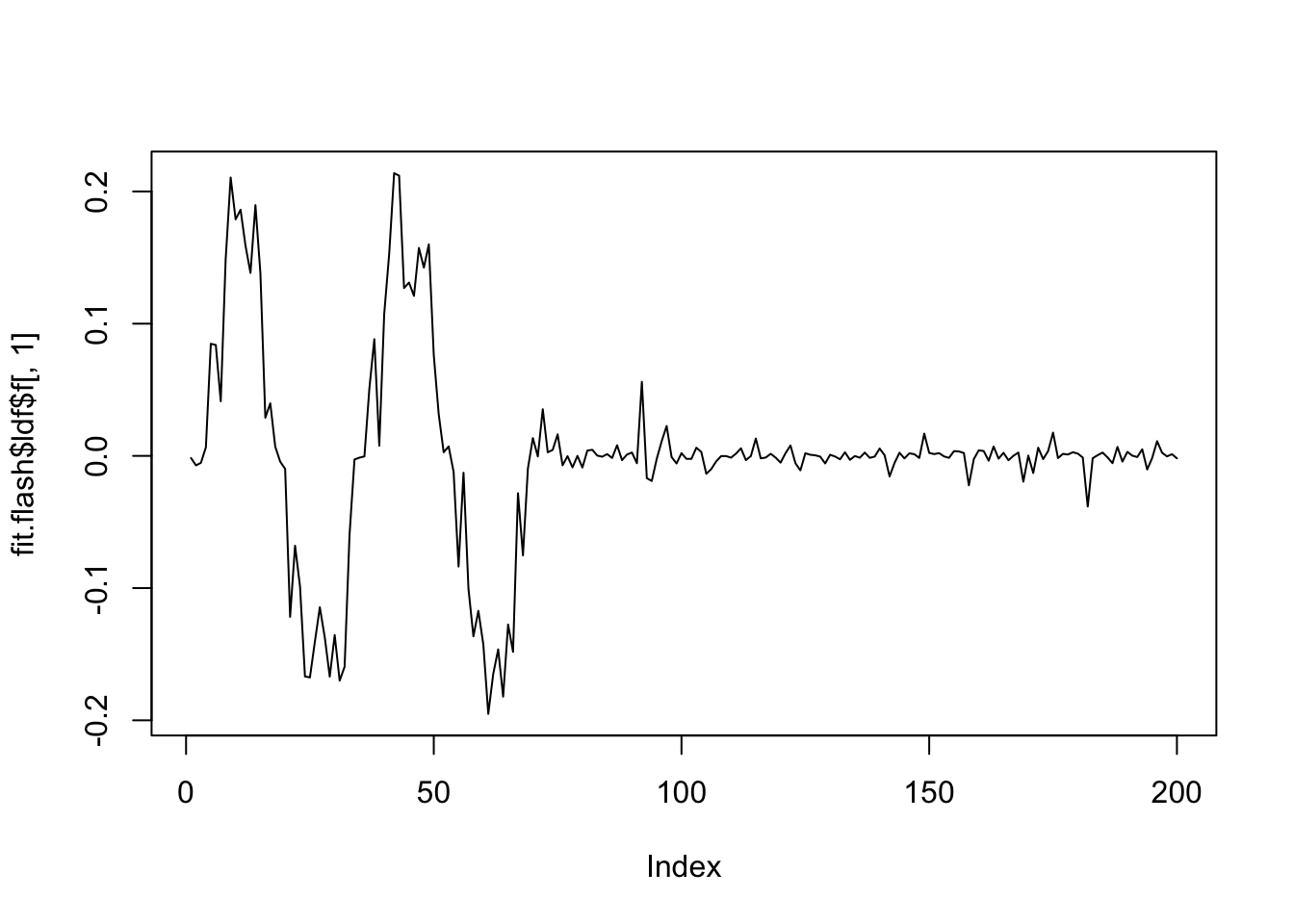

fit.flash = flash(X,var_type = 'constant')Fitting factor/loading 1 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -29000.34 Inf 2 -28996.37 3.97e+00 3 -28996.25 1.29e-01 4 -28996.24 1.06e-02 5 -28996.23 1.07e-03Performing nullcheck... Deleting factor 1 decreases objective by 2.70e+02. Factor retained. Nullcheck complete. Objective: -28996.23Fitting factor/loading 2 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -28988.95 Inf 2 -28979.71 9.23e+00 3 -28977.40 2.31e+00 4 -28976.56 8.45e-01 5 -28976.27 2.88e-01 6 -28976.16 1.05e-01 7 -28976.12 4.30e-02 8 -28976.10 1.93e-02 9 -28976.09 9.31e-03Performing nullcheck... Deleting factor 2 decreases objective by 2.01e+01. Factor retained. Nullcheck complete. Objective: -28976.09Fitting factor/loading 3 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -28998.96 Inf 2 -28990.99 7.97e+00 3 -28989.58 1.41e+00 4 -28988.72 8.66e-01 5 -28988.11 6.04e-01 6 -28987.71 4.03e-01 7 -28987.46 2.51e-01 8 -28987.31 1.50e-01 9 -28987.22 9.03e-02 10 -28987.16 5.81e-02 11 -28987.12 4.28e-02 12 -28987.08 3.77e-02 13 -28987.04 3.87e-02 14 -28987.00 4.33e-02 15 -28986.95 5.02e-02 16 -28986.89 5.84e-02 17 -28986.82 6.71e-02 18 -28986.75 7.54e-02 19 -28986.66 8.21e-02 20 -28986.58 8.62e-02 21 -28986.49 8.67e-02 22 -28986.41 8.36e-02 23 -28986.33 7.80e-02 24 -28986.26 7.13e-02 25 -28986.19 6.46e-02 26 -28986.14 5.84e-02 27 -28986.08 5.24e-02 28 -28986.04 4.63e-02 29 -28986.00 3.96e-02 30 -28985.96 3.28e-02 31 -28985.94 2.61e-02 32 -28985.92 2.02e-02 33 -28985.90 1.53e-02 34 -28985.89 1.13e-02 35 -28985.88 8.26e-03Performing nullcheck... Deleting factor 3 increases objective by 9.79e+00. Factor zeroed out. Nullcheck complete. Objective: -28976.09plot(fit.flash$ldf$f[,1],type='l')
plot(fit.flash$ldf$f[,2],type='l')
#plot(fit.flash$ldf$f[,3],type='l')Try funflash
library(funflash)
datax = funflash_set_data(X,reflect.data = F,
type='wavelet',filter.number = 10,
family="DaubLeAsymm")

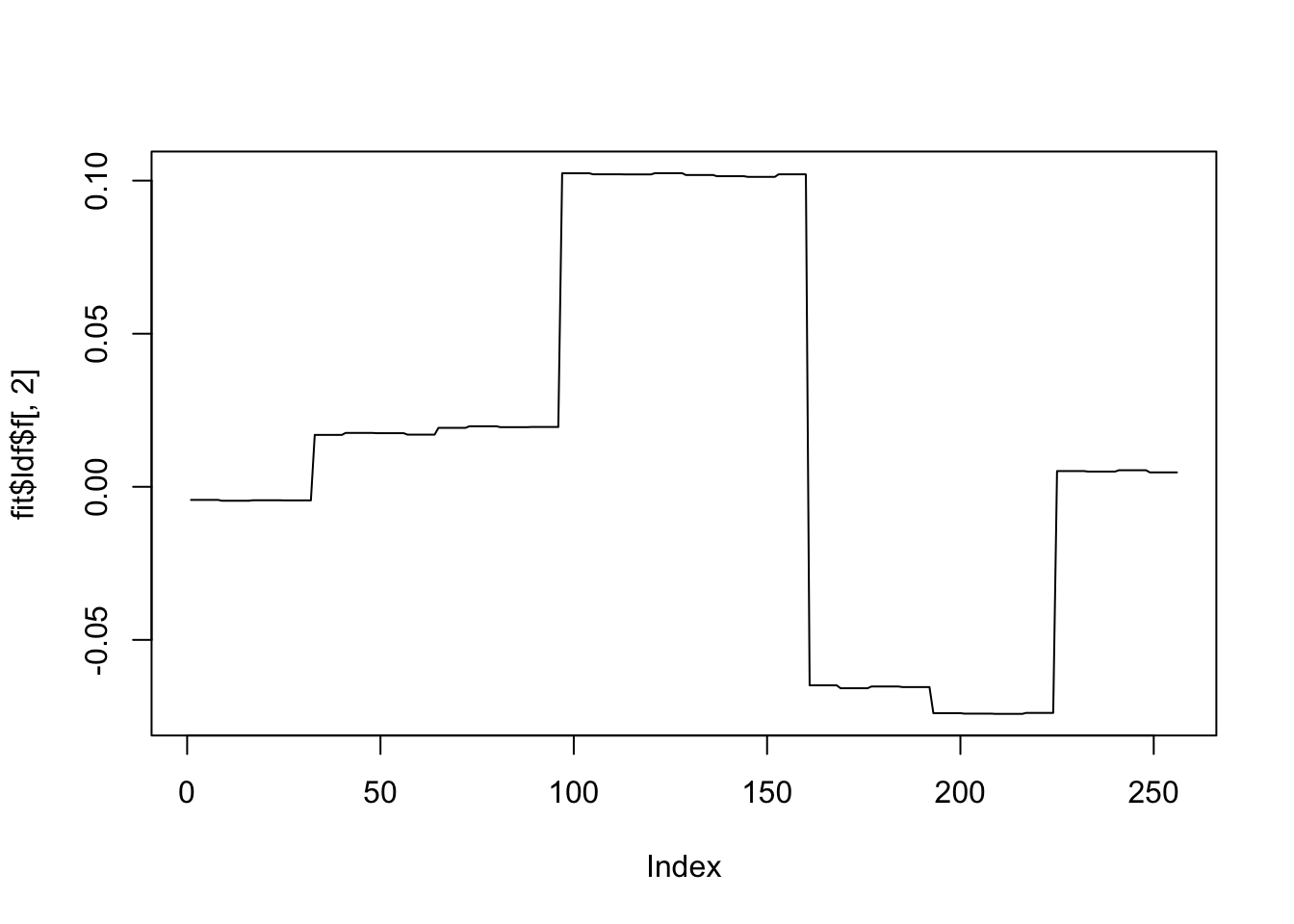

fit = funflash(datax,var.type = 'constant')[1] "Fitting dimension 1"
[1] "Iteration 1 : obj -36782.156"
[1] "Iteration 2 : obj -36772.364"
[1] "Iteration 3 : obj -36772.301"
[1] "Iteration 4 : obj -36772.299"
[1] "Performing nullcheck"
[1] "Deleting factor 1 decreases objective by 611.009"
[1] "Fitting dimension 2"
[1] "Iteration 1 : obj -36694.338"
[1] "Iteration 2 : obj -36671.119"
[1] "Iteration 3 : obj -36661.472"
[1] "Iteration 4 : obj -36659.42"
[1] "Iteration 5 : obj -36658.481"
[1] "Iteration 6 : obj -36657.742"
[1] "Iteration 7 : obj -36656.887"
[1] "Iteration 8 : obj -36656.112"
[1] "Iteration 9 : obj -36655.655"
[1] "Iteration 10 : obj -36655.35"
[1] "Iteration 11 : obj -36655.143"
[1] "Iteration 12 : obj -36655.004"
[1] "Iteration 13 : obj -36654.916"
[1] "Iteration 14 : obj -36654.863"
[1] "Iteration 15 : obj -36654.832"
[1] "Iteration 16 : obj -36654.815"
[1] "Iteration 17 : obj -36654.806"
[1] "Performing nullcheck"
[1] "Deleting factor 2 decreases objective by 117.493"
[1] "Fitting dimension 3"
[1] "Iteration 1 : obj -36599.03"
[1] "Iteration 2 : obj -36581.377"
[1] "Iteration 3 : obj -36574.177"
[1] "Iteration 4 : obj -36570.773"
[1] "Iteration 5 : obj -36566.943"
[1] "Iteration 6 : obj -36565.47"
[1] "Iteration 7 : obj -36565.122"
[1] "Iteration 8 : obj -36565.069"
[1] "Iteration 9 : obj -36565.068"
[1] "Performing nullcheck"
[1] "Deleting factor 3 decreases objective by 89.738"
[1] "Fitting dimension 4"
[1] "Iteration 1 : obj -36571.898"
[1] "Iteration 2 : obj -36561.885"
[1] "Iteration 3 : obj -36559.982"
[1] "Iteration 4 : obj -36559.15"
[1] "Iteration 5 : obj -36558.687"
[1] "Iteration 6 : obj -36558.379"
[1] "Iteration 7 : obj -36558.151"
[1] "Iteration 8 : obj -36557.973"
[1] "Iteration 9 : obj -36557.828"
[1] "Iteration 10 : obj -36557.709"
[1] "Iteration 11 : obj -36557.606"
[1] "Iteration 12 : obj -36557.513"
[1] "Iteration 13 : obj -36557.421"
[1] "Iteration 14 : obj -36557.324"
[1] "Iteration 15 : obj -36557.219"
[1] "Iteration 16 : obj -36557.104"
[1] "Iteration 17 : obj -36556.979"
[1] "Iteration 18 : obj -36556.846"
[1] "Iteration 19 : obj -36556.707"
[1] "Iteration 20 : obj -36556.562"
[1] "Iteration 21 : obj -36556.41"
[1] "Iteration 22 : obj -36556.245"
[1] "Iteration 23 : obj -36556.062"
[1] "Iteration 24 : obj -36555.848"
[1] "Iteration 25 : obj -36555.585"
[1] "Iteration 26 : obj -36555.251"
[1] "Iteration 27 : obj -36554.881"
[1] "Iteration 28 : obj -36554.583"
[1] "Iteration 29 : obj -36554.375"
[1] "Iteration 30 : obj -36554.21"
[1] "Iteration 31 : obj -36554.059"
[1] "Iteration 32 : obj -36553.915"
[1] "Iteration 33 : obj -36553.8"
[1] "Iteration 34 : obj -36553.705"
[1] "Iteration 35 : obj -36553.622"
[1] "Iteration 36 : obj -36553.546"
[1] "Iteration 37 : obj -36553.474"
[1] "Iteration 38 : obj -36553.403"
[1] "Iteration 39 : obj -36553.332"
[1] "Iteration 40 : obj -36553.256"
[1] "Iteration 41 : obj -36553.173"
[1] "Iteration 42 : obj -36553.076"
[1] "Iteration 43 : obj -36552.957"
[1] "Iteration 44 : obj -36552.801"
[1] "Iteration 45 : obj -36552.583"
[1] "Iteration 46 : obj -36552.305"
[1] "Iteration 47 : obj -36552.006"
[1] "Iteration 48 : obj -36551.659"
[1] "Iteration 49 : obj -36551.23"
[1] "Iteration 50 : obj -36550.671"
[1] "Iteration 51 : obj -36549.993"
[1] "Iteration 52 : obj -36549.282"
[1] "Iteration 53 : obj -36548.781"
[1] "Iteration 54 : obj -36548.542"
[1] "Iteration 55 : obj -36548.382"
[1] "Iteration 56 : obj -36548.261"
[1] "Iteration 57 : obj -36548.162"
[1] "Iteration 58 : obj -36548.075"
[1] "Iteration 59 : obj -36547.989"
[1] "Iteration 60 : obj -36547.892"
[1] "Iteration 61 : obj -36547.76"
[1] "Iteration 62 : obj -36547.557"
[1] "Iteration 63 : obj -36553.154"
[1] "An iteration decreased the objective"
[1] "Performing nullcheck"
[1] "Deleting factor 4 decreases objective by 11.914"
[1] "Fitting dimension 5"
[1] "Iteration 1 : obj -36561.189"
[1] "Iteration 2 : obj -36551.135"
[1] "Iteration 3 : obj -36548.844"
[1] "Iteration 4 : obj -36547.444"
[1] "Iteration 5 : obj -36546.371"
[1] "Iteration 6 : obj -36545.469"
[1] "Iteration 7 : obj -36544.66"
[1] "Iteration 8 : obj -36543.914"
[1] "Iteration 9 : obj -36543.192"
[1] "Iteration 10 : obj -36542.476"
[1] "Iteration 11 : obj -36541.897"
[1] "Iteration 12 : obj -36541.456"
[1] "Iteration 13 : obj -36541.028"
[1] "Iteration 14 : obj -36540.483"
[1] "Iteration 15 : obj -36539.719"
[1] "Iteration 16 : obj -36538.874"
[1] "Iteration 17 : obj -36538.237"
[1] "Iteration 18 : obj -36537.829"
[1] "Iteration 19 : obj -36537.583"
[1] "Iteration 20 : obj -36537.455"
[1] "Iteration 21 : obj -36537.407"
[1] "Iteration 22 : obj -36537.386"
[1] "Iteration 23 : obj -36537.376"
[1] "Performing nullcheck"
[1] "Deleting factor 5 decreases objective by 15.764"
[1] "Fitting dimension 6"
[1] "Iteration 1 : obj -36555.83"
[1] "Iteration 2 : obj -36546.617"
[1] "Iteration 3 : obj -36545.169"
[1] "Iteration 4 : obj -36543.693"
[1] "Iteration 5 : obj -36541.957"
[1] "Iteration 6 : obj -36541.069"
[1] "Iteration 7 : obj -36540.398"
[1] "Iteration 8 : obj -36539.768"
[1] "Iteration 9 : obj -36539.029"
[1] "Iteration 10 : obj -36538.015"
[1] "Iteration 11 : obj -36536.674"
[1] "Iteration 12 : obj -36535.364"
[1] "Iteration 13 : obj -36534.462"
[1] "Iteration 14 : obj -36533.887"
[1] "Iteration 15 : obj -36533.466"
[1] "Iteration 16 : obj -36533.11"
[1] "Iteration 17 : obj -36532.782"
[1] "Iteration 18 : obj -36532.474"
[1] "Iteration 19 : obj -36532.189"
[1] "Iteration 20 : obj -36531.919"
[1] "Iteration 21 : obj -36531.652"
[1] "Iteration 22 : obj -36531.398"
[1] "Iteration 23 : obj -36531.184"
[1] "Iteration 24 : obj -36531.02"
[1] "Iteration 25 : obj -36530.888"
[1] "Iteration 26 : obj -36530.77"
[1] "Iteration 27 : obj -36530.653"
[1] "Iteration 28 : obj -36530.572"
[1] "Iteration 29 : obj -36530.545"
[1] "Iteration 30 : obj -36530.53"
[1] "Iteration 31 : obj -36530.52"
[1] "Performing nullcheck"
[1] "Deleting factor 6 decreases objective by 6.856"
[1] "Fitting dimension 7"
[1] "Iteration 1 : obj -36551.284"
[1] "Iteration 2 : obj -36540.887"
[1] "Iteration 3 : obj -36539.045"
[1] "Iteration 4 : obj -36538.041"
[1] "Iteration 5 : obj -36537.387"
[1] "Iteration 6 : obj -36536.901"
[1] "Iteration 7 : obj -36536.513"
[1] "Iteration 8 : obj -36536.183"
[1] "Iteration 9 : obj -36535.901"
[1] "Iteration 10 : obj -36535.667"
[1] "Iteration 11 : obj -36535.463"
[1] "Iteration 12 : obj -36535.271"
[1] "Iteration 13 : obj -36535.063"
[1] "Iteration 14 : obj -36534.758"
[1] "Iteration 15 : obj -36534.196"
[1] "Iteration 16 : obj -36533.311"
[1] "Iteration 17 : obj -36532.281"
[1] "Iteration 18 : obj -36531.466"
[1] "Iteration 19 : obj -36531.051"
[1] "Iteration 20 : obj -36530.857"
[1] "Iteration 21 : obj -36530.754"
[1] "Iteration 22 : obj -36530.689"
[1] "Iteration 23 : obj -36530.64"
[1] "Iteration 24 : obj -36530.596"
[1] "Iteration 25 : obj -36530.552"
[1] "Iteration 26 : obj -36530.502"
[1] "Iteration 27 : obj -36530.443"
[1] "Iteration 28 : obj -36530.366"
[1] "Iteration 29 : obj -36530.431"
[1] "An iteration decreased the objective"
[1] "Performing nullcheck"
[1] "Deleting factor 7 decreases objective by 0.089"
[1] "Fitting dimension 8"
[1] "Iteration 1 : obj -36555.419"
[1] "Iteration 2 : obj -36544.1"
[1] "Iteration 3 : obj -36541.481"
[1] "Iteration 4 : obj -36539.907"
[1] "Iteration 5 : obj -36538.924"
[1] "Iteration 6 : obj -36538.113"
[1] "Iteration 7 : obj -36537.403"
[1] "Iteration 8 : obj -36536.816"
[1] "Iteration 9 : obj -36536.26"
[1] "Iteration 10 : obj -36535.608"
[1] "Iteration 11 : obj -36534.841"
[1] "Iteration 12 : obj -36532.196"
[1] "Iteration 13 : obj -36530.562"
[1] "Iteration 14 : obj -36529.037"
[1] "Iteration 15 : obj -36527.231"
[1] "Iteration 16 : obj -36525.214"
[1] "Iteration 17 : obj -36523.883"
[1] "Iteration 18 : obj -36523.192"
[1] "Iteration 19 : obj -36522.795"
[1] "Iteration 20 : obj -36522.487"
[1] "Iteration 21 : obj -36522.229"
[1] "Iteration 22 : obj -36522.021"
[1] "Iteration 23 : obj -36521.876"
[1] "Iteration 24 : obj -36521.791"
[1] "Iteration 25 : obj -36521.747"
[1] "Iteration 26 : obj -36521.727"
[1] "Iteration 27 : obj -36521.717"
[1] "Performing nullcheck"
[1] "Deleting factor 8 decreases objective by 8.711"
[1] "Fitting dimension 9"
[1] "Iteration 1 : obj -36549.717"
[1] "Iteration 2 : obj -36537.425"
[1] "Iteration 3 : obj -36532.999"
[1] "Iteration 4 : obj -36527.859"
[1] "Iteration 5 : obj -36522.708"
[1] "Iteration 6 : obj -36518.923"
[1] "Iteration 7 : obj -36516.479"
[1] "Iteration 8 : obj -36515.16"
[1] "Iteration 9 : obj -36514.725"
[1] "Iteration 10 : obj -36514.555"
[1] "Iteration 11 : obj -36514.464"
[1] "Iteration 12 : obj -36514.406"
[1] "Iteration 13 : obj -36514.365"
[1] "Iteration 14 : obj -36514.333"
[1] "Iteration 15 : obj -36514.308"
[1] "Iteration 16 : obj -36514.287"
[1] "Iteration 17 : obj -36514.27"
[1] "Iteration 18 : obj -36514.255"
[1] "Iteration 19 : obj -36514.242"
[1] "Iteration 20 : obj -36514.231"
[1] "Iteration 21 : obj -36514.223"
[1] "Performing nullcheck"
[1] "Deleting factor 9 decreases objective by 7.494"
[1] "Fitting dimension 10"
[1] "Iteration 1 : obj -36547.686"
[1] "Iteration 2 : obj -36538.185"
[1] "Iteration 3 : obj -36537.024"
[1] "Iteration 4 : obj -36536.284"
[1] "Iteration 5 : obj -36535.419"
[1] "Iteration 6 : obj -36534.125"
[1] "Iteration 7 : obj -36531.989"
[1] "Iteration 8 : obj -36528.791"
[1] "Iteration 9 : obj -36525.073"
[1] "Iteration 10 : obj -36521.385"
[1] "Iteration 11 : obj -36517.71"
[1] "Iteration 12 : obj -36515.125"
[1] "Iteration 13 : obj -36514.075"
[1] "Iteration 14 : obj -36513.245"
[1] "Iteration 15 : obj -36511.74"
[1] "Iteration 16 : obj -36509.491"
[1] "Iteration 17 : obj -36507.784"
[1] "Iteration 18 : obj -36506.909"
[1] "Iteration 19 : obj -36506.694"
[1] "Iteration 20 : obj -36506.662"
[1] "Iteration 21 : obj -36506.658"
[1] "Performing nullcheck"
[1] "Deleting factor 10 decreases objective by 7.565"plot(fit$ldf$f[,1],type='l')
plot(fit$ldf$f[,2],type='l')
plot(fit$ldf$f[,3],type='l')
plot(fit$ldf$f[,4],type='l')
plot(fit$ldf$f[,5],type='l')
plot(fit$ldf$f[,6],type='l')
plot(fit$ldf$f[,7],type='l')
There are some redundant factors. Why?
datax = funflash_set_data(X,reflect.data = T,
type='wavelet',filter.number = 10,
family="DaubLeAsymm")
fit = funflash(datax,Kmax = 3,var.type = 'constant')[1] "Fitting dimension 1"
[1] "Iteration 1 : obj -73483.412"
[1] "Iteration 2 : obj -73465.576"
[1] "Iteration 3 : obj -73465.353"
[1] "Iteration 4 : obj -73465.352"
[1] "Performing nullcheck"
[1] "Deleting factor 1 decreases objective by 1397.816"
[1] "Fitting dimension 2"
[1] "Iteration 1 : obj -73192.658"
[1] "Iteration 2 : obj -73149.365"
[1] "Iteration 3 : obj -73125.475"
[1] "Iteration 4 : obj -73118.567"
[1] "Iteration 5 : obj -73114.206"
[1] "Iteration 6 : obj -73110.957"
[1] "Iteration 7 : obj -73108.745"
[1] "Iteration 8 : obj -73107.178"
[1] "Iteration 9 : obj -73106.179"
[1] "Iteration 10 : obj -73105.662"
[1] "Iteration 11 : obj -73105.452"
[1] "Iteration 12 : obj -73105.588"
[1] "An iteration decreased the objective"
[1] "Performing nullcheck"
[1] "Deleting factor 2 decreases objective by 359.764"
[1] "Fitting dimension 3"
[1] "Iteration 1 : obj -72884.33"
[1] "Iteration 2 : obj -72857.562"
[1] "Iteration 3 : obj -72846.97"
[1] "Iteration 4 : obj -72841.59"
[1] "Iteration 5 : obj -72838.345"
[1] "Iteration 6 : obj -72835.914"
[1] "Iteration 7 : obj -72837.2"
[1] "An iteration decreased the objective"
[1] "Performing nullcheck"
[1] "Deleting factor 3 decreases objective by 268.388"plot(fit$ldf$f[,1],type='l')
plot(fit$ldf$f[,2],type='l')
plot(fit$ldf$f[,3],type='l')
datax = funflash_set_data(X,reflect.data = T,
type='station',filter.number = 10,
family="DaubLeAsymm")
dim(datax$Y)[1] 100 4608fit = funflash(datax,Kmax = 5,var.type = 'constant')[1] "Fitting dimension 1"
[1] "Iteration 1 : obj -691136.438"
[1] "Iteration 2 : obj -691100.483"
[1] "Iteration 3 : obj -691095.705"
[1] "Iteration 4 : obj -691094.215"
[1] "Iteration 5 : obj -691093.677"
[1] "Iteration 6 : obj -691093.472"
[1] "Iteration 7 : obj -691093.394"
[1] "Iteration 8 : obj -691093.363"
[1] "Iteration 9 : obj -691093.351"
[1] "Iteration 10 : obj -691093.347"
[1] "Performing nullcheck"
[1] "Deleting factor 1 decreases objective by 63744.485"
[1] "Fitting dimension 2"
[1] "Iteration 1 : obj -641961.359"
[1] "Iteration 2 : obj -641942.001"
[1] "Iteration 3 : obj -641941.964"
[1] "Iteration 4 : obj -641941.96"
[1] "Performing nullcheck"
[1] "Deleting factor 2 decreases objective by 49151.387"
[1] "Fitting dimension 3"
[1] "Iteration 1 : obj -612132.893"
[1] "Iteration 2 : obj -612106.241"
[1] "Iteration 3 : obj -612105.853"
[1] "Iteration 4 : obj -612105.828"
[1] "Iteration 5 : obj -612105.825"
[1] "Performing nullcheck"
[1] "Deleting factor 3 decreases objective by 29836.134"
[1] "Fitting dimension 4"
[1] "Iteration 1 : obj -590926.131"
[1] "Iteration 2 : obj -590892.56"
[1] "Iteration 3 : obj -590891.418"
[1] "Iteration 4 : obj -590891.275"
[1] "Iteration 5 : obj -590891.249"
[1] "Iteration 6 : obj -590891.244"
[1] "Performing nullcheck"
[1] "Deleting factor 4 decreases objective by 21214.581"
[1] "Fitting dimension 5"
[1] "Iteration 1 : obj -579265.803"
[1] "Iteration 2 : obj -579193.455"
[1] "Iteration 3 : obj -579168.247"
[1] "Iteration 4 : obj -579150.284"
[1] "Iteration 5 : obj -579136.604"
[1] "Iteration 6 : obj -579126.244"
[1] "Iteration 7 : obj -579118.611"
[1] "Iteration 8 : obj -579113.167"
[1] "Iteration 9 : obj -579109.377"
[1] "Iteration 10 : obj -579106.774"
[1] "Iteration 11 : obj -579104.993"
[1] "Iteration 12 : obj -579103.781"
[1] "Iteration 13 : obj -579103.28"
[1] "Iteration 14 : obj -579103.066"
[1] "Iteration 15 : obj -579102.565"
[1] "Iteration 16 : obj -579102.211"
[1] "Iteration 17 : obj -579101.967"
[1] "Iteration 18 : obj -579101.798"
[1] "Iteration 19 : obj -579101.681"
[1] "Iteration 20 : obj -579101.6"
[1] "Iteration 21 : obj -579101.542"
[1] "Iteration 22 : obj -579101.502"
[1] "Iteration 23 : obj -579101.473"
[1] "Iteration 24 : obj -579101.452"
[1] "Iteration 25 : obj -579101.436"
[1] "Iteration 26 : obj -579101.425"
[1] "Iteration 27 : obj -579101.417"
[1] "Performing nullcheck"
[1] "Deleting factor 5 decreases objective by 11789.828"plot(fit$ldf$f[,1],type='l')
plot(fit$ldf$f[,2],type='l')
plot(fit$ldf$f[,3],type='l')
plot(fit$ldf$f[,4],type='l')
plot(fit$ldf$f[,5],type='l')
Another example
set.seed(12345)
n <- 50
p <- 256
K <- 3
snr <- 1
## Step 1: sample U, an orthogonal matrix
rand_semdef_sym_mat <- crossprod(matrix(runif(n * n), n, n))
rand_ortho_mat <- eigen(rand_semdef_sym_mat)$vector[, 1:K]
u_1 <- rand_ortho_mat[, 1]
u_2 <- rand_ortho_mat[, 2]
u_3 <- rand_ortho_mat[, 3]
f1 = c(rep(0,p/8), rep(1, p/4), rep(0, p/4), rep(0, p/4),rep(0,p/8))
f2 = c(rep(0,p/8), rep(0, p/4), rep(1, p/4), rep(0, p/4),rep(0,p/8))
f3 = c(rep(0,p/8), rep(0, p/4), rep(0, p/4), rep(1, p/4),rep(0,p/8))
L = cbind(u_1,u_2,u_3)
FF=cbind(f1,f2,f3)
plot(f1,type='l')
plot(f2,type='l')

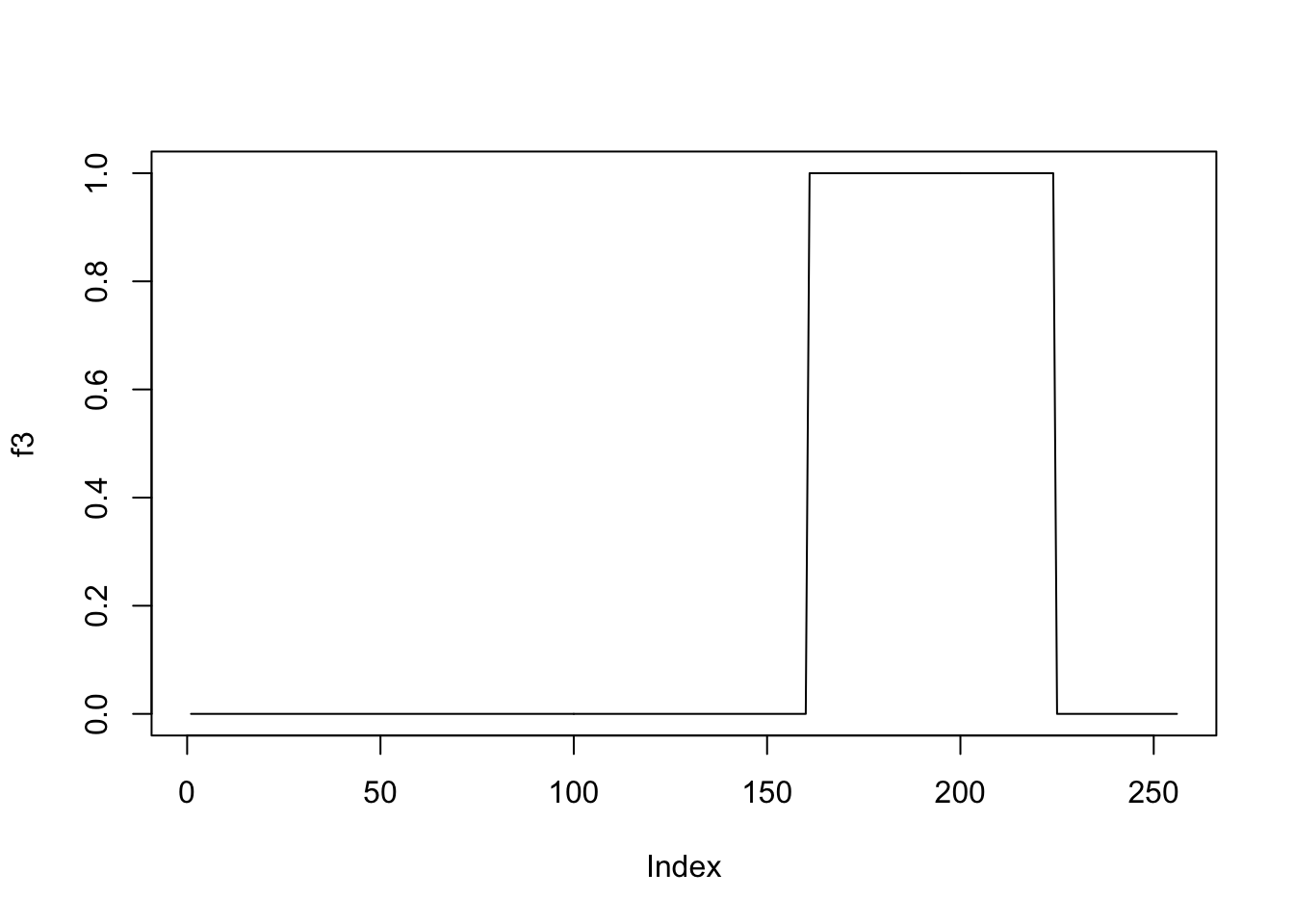

plot(f3,type='l')
M = n / 3 * u_1 %*% t(f1) +
n / 5 * u_2 %*% t(f2) +
n / 6 * u_3 %*% t(f3)
v = var(c(M))/snr
X = M + matrix(rnorm(n*p,0,sqrt(v)),nrow=n,ncol=p)Omega_v <- second_diff_mat(p)
res <- moma_sfpca(
X,
center = FALSE,
v_sparse = moma_lasso(
lambda = seq(0, 3, length.out = 40),
select_scheme = "b"
),
v_smooth = moma_smoothness(Omega_v,
alpha = seq(0, 3, length.out = 40),
select_scheme = "b"),
rank = 3,
deflation_scheme = "PCA_Schur_Complement"
)Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 2.84615]Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 2.92308]
Start a final run on the chosen parameters.[av, au, lu, lv] = [0, 0, 0, 2.92308]plot(res$get_mat_by_index()$V[,1],type='l')
plot(res$get_mat_by_index()$V[,2],type='l')
plot(res$get_mat_by_index()$V[,3],type='l')
fit.flash = flash(X,var_type = 'constant')Fitting factor/loading 1 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -25062.76 Inf 2 -25060.49 2.27e+00 3 -25060.49 3.93e-03Performing nullcheck... Deleting factor 1 decreases objective by 2.21e+03. Factor retained. Nullcheck complete. Objective: -25060.49Fitting factor/loading 2 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -24123.63 Inf 2 -24119.47 4.16e+00 3 -24119.33 1.38e-01 4 -24119.32 7.29e-03Performing nullcheck... Deleting factor 2 decreases objective by 9.41e+02. Factor retained. Nullcheck complete. Objective: -24119.32Fitting factor/loading 3 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -23307.99 Inf 2 -23305.42 2.58e+00 3 -23305.41 6.30e-03Performing nullcheck... Deleting factor 3 decreases objective by 8.14e+02. Factor retained. Nullcheck complete. Objective: -23305.41Fitting factor/loading 4 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -23335.07 Inf 2 -23326.57 8.50e+00 3 -23325.95 6.21e-01 4 -23325.81 1.41e-01 5 -23325.76 5.10e-02 6 -23325.73 2.39e-02 7 -23325.72 1.33e-02 8 -23325.71 8.41e-03Performing nullcheck... Deleting factor 4 increases objective by 2.03e+01. Factor zeroed out. Nullcheck complete. Objective: -23305.41plot(fit.flash$ldf$f[,1],type='l')
plot(fit.flash$ldf$f[,2],type='l')
plot(fit.flash$ldf$f[,3],type='l')
datax = funflash_set_data(X,reflect.data = F,
type='wavelet',filter.number = 1,
family="DaubExPhase")
fit = funflash(datax,var.type = 'constant')[1] "Fitting dimension 1"
[1] "Iteration 1 : obj -23950.971"
[1] "Iteration 2 : obj -23948.958"
[1] "Iteration 3 : obj -23948.958"
[1] "Performing nullcheck"
[1] "Deleting factor 1 decreases objective by 2319.822"
[1] "Fitting dimension 2"
[1] "Iteration 1 : obj -22788.057"
[1] "Iteration 2 : obj -22784.019"
[1] "Iteration 3 : obj -22784.013"
[1] "Performing nullcheck"
[1] "Deleting factor 2 decreases objective by 1164.945"
[1] "Fitting dimension 3"
[1] "Iteration 1 : obj -22466.143"
[1] "Iteration 2 : obj -22458.425"
[1] "Iteration 3 : obj -22458.378"
[1] "Iteration 4 : obj -22458.377"
[1] "Performing nullcheck"
[1] "Deleting factor 3 decreases objective by 325.636"
[1] "Fitting dimension 4"
[1] "Iteration 1 : obj -22483.151"
[1] "Iteration 2 : obj -22475.424"
[1] "Iteration 3 : obj -22474.966"
[1] "Iteration 4 : obj -22474.858"
[1] "Iteration 5 : obj -22474.799"
[1] "Iteration 6 : obj -22474.75"
[1] "Iteration 7 : obj -22474.704"
[1] "Iteration 8 : obj -22474.657"
[1] "Iteration 9 : obj -22474.608"
[1] "Iteration 10 : obj -22474.554"
[1] "Iteration 11 : obj -22474.494"
[1] "Iteration 12 : obj -22474.427"
[1] "Iteration 13 : obj -22474.35"
[1] "Iteration 14 : obj -22474.262"
[1] "Iteration 15 : obj -22474.159"
[1] "Iteration 16 : obj -22474.037"
[1] "Iteration 17 : obj -22473.89"
[1] "Iteration 18 : obj -22473.708"
[1] "Iteration 19 : obj -22473.475"
[1] "Iteration 20 : obj -22473.163"
[1] "Iteration 21 : obj -22472.728"
[1] "Iteration 22 : obj -22472.173"
[1] "Iteration 23 : obj -22471.494"
[1] "Iteration 24 : obj -22468.783"
[1] "Iteration 25 : obj -22465.491"
[1] "Iteration 26 : obj -22464.863"
[1] "Iteration 27 : obj -22462.601"
[1] "Iteration 28 : obj -22462.197"
[1] "Iteration 29 : obj -22462.014"
[1] "Iteration 30 : obj -22461.889"
[1] "Iteration 31 : obj -22461.744"
[1] "Iteration 32 : obj -22461.573"
[1] "Iteration 33 : obj -22461.429"
[1] "Iteration 34 : obj -22461.346"
[1] "Iteration 35 : obj -22461.305"
[1] "Iteration 36 : obj -22461.287"
[1] "Iteration 37 : obj -22461.278"
[1] "Performing nullcheck"
[1] "Deleting factor 4 increases objective by 2.901"plot(fit$ldf$f[,1],type='l')
plot(fit$ldf$f[,2],type='l')
plot(fit$ldf$f[,3],type='l')
datax = funflash_set_data(X,reflect.data = F,
type='wavelet',filter.number = 1,
family="DaubExPhase")
fit = funflash(datax,var.type = 'constant')[1] "Fitting dimension 1"
[1] "Iteration 1 : obj -23950.971"
[1] "Iteration 2 : obj -23948.958"
[1] "Iteration 3 : obj -23948.958"
[1] "Performing nullcheck"
[1] "Deleting factor 1 decreases objective by 2319.822"
[1] "Fitting dimension 2"
[1] "Iteration 1 : obj -22788.057"
[1] "Iteration 2 : obj -22784.019"
[1] "Iteration 3 : obj -22784.013"
[1] "Performing nullcheck"
[1] "Deleting factor 2 decreases objective by 1164.945"
[1] "Fitting dimension 3"
[1] "Iteration 1 : obj -22466.143"
[1] "Iteration 2 : obj -22458.425"
[1] "Iteration 3 : obj -22458.378"
[1] "Iteration 4 : obj -22458.377"
[1] "Performing nullcheck"
[1] "Deleting factor 3 decreases objective by 325.636"
[1] "Fitting dimension 4"
[1] "Iteration 1 : obj -22483.151"
[1] "Iteration 2 : obj -22475.424"
[1] "Iteration 3 : obj -22474.966"
[1] "Iteration 4 : obj -22474.858"
[1] "Iteration 5 : obj -22474.799"
[1] "Iteration 6 : obj -22474.75"
[1] "Iteration 7 : obj -22474.704"
[1] "Iteration 8 : obj -22474.657"
[1] "Iteration 9 : obj -22474.608"
[1] "Iteration 10 : obj -22474.554"
[1] "Iteration 11 : obj -22474.494"
[1] "Iteration 12 : obj -22474.427"
[1] "Iteration 13 : obj -22474.35"
[1] "Iteration 14 : obj -22474.262"
[1] "Iteration 15 : obj -22474.159"
[1] "Iteration 16 : obj -22474.037"
[1] "Iteration 17 : obj -22473.89"
[1] "Iteration 18 : obj -22473.708"
[1] "Iteration 19 : obj -22473.475"
[1] "Iteration 20 : obj -22473.163"
[1] "Iteration 21 : obj -22472.728"
[1] "Iteration 22 : obj -22472.173"
[1] "Iteration 23 : obj -22471.494"
[1] "Iteration 24 : obj -22468.783"
[1] "Iteration 25 : obj -22465.491"
[1] "Iteration 26 : obj -22464.863"
[1] "Iteration 27 : obj -22462.601"
[1] "Iteration 28 : obj -22462.197"
[1] "Iteration 29 : obj -22462.014"
[1] "Iteration 30 : obj -22461.889"
[1] "Iteration 31 : obj -22461.744"
[1] "Iteration 32 : obj -22461.573"
[1] "Iteration 33 : obj -22461.429"
[1] "Iteration 34 : obj -22461.346"
[1] "Iteration 35 : obj -22461.305"
[1] "Iteration 36 : obj -22461.287"
[1] "Iteration 37 : obj -22461.278"
[1] "Performing nullcheck"
[1] "Deleting factor 4 increases objective by 2.901"plot(fit$ldf$f[,1],type='l')
plot(fit$ldf$f[,2],type='l')
plot(fit$ldf$f[,3],type='l')
datax = funflash_set_data(X,reflect.data = F,
type='station',filter.number = 1,
family="DaubExPhase")
fit = funflash(datax,var.type = 'constant',Kmax = 3)[1] "Fitting dimension 1"
[1] "Iteration 1 : obj -264122.596"
[1] "Iteration 2 : obj -264116.019"
[1] "Iteration 3 : obj -264115.895"
[1] "Iteration 4 : obj -264115.879"
[1] "Iteration 5 : obj -264115.877"
[1] "Performing nullcheck"
[1] "Deleting factor 1 decreases objective by 50831.67"
[1] "Fitting dimension 2"
[1] "Iteration 1 : obj -212286.49"
[1] "Iteration 2 : obj -212277.643"
[1] "Iteration 3 : obj -212277.579"
[1] "Iteration 4 : obj -212277.574"
[1] "Performing nullcheck"
[1] "Deleting factor 2 decreases objective by 51838.302"
[1] "Fitting dimension 3"
[1] "Iteration 1 : obj -177725.355"
[1] "Iteration 2 : obj -177711.544"
[1] "Iteration 3 : obj -177711.537"
[1] "Performing nullcheck"
[1] "Deleting factor 3 decreases objective by 34566.037"plot(fit$ldf$f[,1],type='l')
plot(fit$ldf$f[,2],type='l')
plot(fit$ldf$f[,3],type='l')
datax = funflash_set_data(X,reflect.data = F,
type='wavelet',filter.number = 1,
family="DaubExPhase")
fit = funflash(datax,var.type = 'zero',sigma2=v,Kmax = 3)[1] "Fitting dimension 1"
[1] "Iteration 1 : obj -24181.963"
[1] "Iteration 2 : obj -24181.162"
[1] "Iteration 3 : obj -24181.162"
[1] "Performing nullcheck"
[1] "Deleting factor 1 decreases objective by 3754.444"
[1] "Fitting dimension 2"
[1] "Iteration 1 : obj -22795.111"
[1] "Iteration 2 : obj -22792.818"
[1] "Iteration 3 : obj -22792.811"
[1] "Performing nullcheck"
[1] "Deleting factor 2 decreases objective by 1388.351"
[1] "Fitting dimension 3"
[1] "Iteration 1 : obj -22462.922"
[1] "Iteration 2 : obj -22456.809"
[1] "Iteration 3 : obj -22456.773"
[1] "Iteration 4 : obj -22456.773"
[1] "Performing nullcheck"
[1] "Deleting factor 3 decreases objective by 336.038"plot(fit$ldf$f[,1],type='l')
plot(fit$ldf$f[,2],type='l')
plot(fit$ldf$f[,3],type='l')
source('code/smooth_flash.R')Loading required package: usethisℹ Loading flashrLoading required package: MASSWaveThresh: R wavelet software, release 4.6.8, installedCopyright Guy Nason and others 1993-2016Note: nlevels has been renamed to nlevelsWT
Attaching package: 'wavethresh'The following object is masked from 'package:devtools':
wdfit = smooth_flash(X)Fitting factor/loading 1 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -24584.51 Inf 2 -24579.00 5.50e+00 3 -24578.47 5.30e-01 4 -24578.39 7.98e-02 5 -24578.38 1.21e-02 6 -24578.38 1.95e-03Performing nullcheck... Deleting factor 1 decreases objective by 2.60e+03. Factor retained. Nullcheck complete. Objective: -24578.38Fitting factor/loading 2 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -23488.39 Inf 2 -23483.47 4.93e+00 3 -23483.06 4.02e-01 4 -23482.79 2.74e-01 5 -23482.69 1.05e-01 6 -23482.66 2.95e-02 7 -23482.65 7.57e-03Performing nullcheck... Deleting factor 2 decreases objective by 1.10e+03. Factor retained. Nullcheck complete. Objective: -23482.65Fitting factor/loading 3 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -22557.11 Inf 2 -22548.98 8.13e+00 3 -22548.86 1.20e-01 4 -22548.86 8.44e-04Performing nullcheck... Deleting factor 3 decreases objective by 9.34e+02. Factor retained. Nullcheck complete. Objective: -22548.86Fitting factor/loading 4 (stop when difference in obj. is < 1.00e-02): Iteration Objective Obj Diff 1 -22582.57 Inf 2 -22571.55 1.10e+01 3 -22570.54 1.01e+00 4 -22570.09 4.44e-01 5 -22569.64 4.58e-01 6 -22569.05 5.82e-01 7 -22568.42 6.34e-01 8 -22567.74 6.76e-01 9 -22567.04 7.02e-01 10 -22566.43 6.15e-01 11 -22566.07 3.56e-01 12 -22565.84 2.33e-01 13 -22565.67 1.67e-01 14 -22565.54 1.35e-01 15 -22565.41 1.27e-01 16 -22565.28 1.32e-01 17 -22565.14 1.40e-01 18 -22564.99 1.46e-01 19 -22564.84 1.48e-01 20 -22564.69 1.48e-01 21 -22564.55 1.46e-01 22 -22564.41 1.39e-01 23 -22564.28 1.27e-01 24 -22564.19 9.46e-02 25 -22564.12 6.59e-02 26 -22564.07 5.39e-02 27 -22564.02 4.84e-02 28 -22563.97 4.72e-02 29 -22563.92 5.00e-02 30 -22563.86 5.77e-02 31 -22563.79 7.33e-02 32 -22563.69 1.04e-01 33 -22563.52 1.69e-01 34 -22563.21 3.12e-01 35 -22562.62 5.88e-01 36 -22561.79 8.24e-01Warning in verbose_obj_decrease_warning(): An iteration decreased the objective.
This happens occasionally, perhaps due to numeric reasons. You could ignore this
warning, but you might like to check out https://github.com/stephenslab/flashr/
issues/26 for more details. 37 -22565.28 -3.49e+00Performing nullcheck... Deleting factor 4 increases objective by 1.64e+01. Factor zeroed out. Nullcheck complete. Objective: -22548.86plot(fit$ldf$f[,1],type='l')
plot(fit$ldf$f[,2],type='l')
plot(fit$ldf$f[,3],type='l')
sessionInfo()R version 4.1.2 (2021-11-01)
Platform: x86_64-apple-darwin17.0 (64-bit)
Running under: macOS Big Sur 10.16
Matrix products: default
BLAS: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRblas.0.dylib
LAPACK: /Library/Frameworks/R.framework/Versions/4.1/Resources/lib/libRlapack.dylib
locale:
[1] en_US.UTF-8/en_US.UTF-8/en_US.UTF-8/C/en_US.UTF-8/en_US.UTF-8
attached base packages:
[1] stats graphics grDevices utils datasets methods base
other attached packages:
[1] wavethresh_4.6.8 MASS_7.3-54 flashr_0.6-7 testthat_3.1.2
[5] devtools_2.4.3 usethis_2.1.5 funflash_0.1.0 MoMA_0.1
[9] workflowr_1.7.0
loaded via a namespace (and not attached):
[1] httr_1.4.2 pkgload_1.2.4 splines_4.1.2 brio_1.1.3
[5] assertthat_0.2.1 getPass_0.2-2 horseshoe_0.2.0 mixsqp_0.3-43
[9] highr_0.9 deconvolveR_1.2-1 remotes_2.4.2 yaml_2.2.2
[13] sessioninfo_1.2.2 ebnm_1.0-9 pillar_1.7.0 lattice_0.20-45
[17] glue_1.6.1 digest_0.6.29 promises_1.2.0.1 colorspace_2.0-3
[21] htmltools_0.5.2 httpuv_1.6.5 Matrix_1.3-4 plyr_1.8.6
[25] pkgconfig_2.0.3 invgamma_1.1 purrr_0.3.4 scales_1.1.1
[29] processx_3.5.2 whisker_0.4 later_1.3.0 git2r_0.29.0
[33] tibble_3.1.6 generics_0.1.2 ggplot2_3.3.5 ellipsis_0.3.2
[37] cachem_1.0.6 withr_2.4.3 ashr_2.2-47 cli_3.1.1
[41] magrittr_2.0.2 crayon_1.4.2 memoise_2.0.1 evaluate_0.14
[45] ps_1.6.0 fs_1.5.2 fansi_1.0.2 truncnorm_1.0-8
[49] pkgbuild_1.3.1 tools_4.1.2 prettyunits_1.1.1 softImpute_1.4-1
[53] lifecycle_1.0.1 stringr_1.4.0 trust_0.1-8 munsell_0.5.0
[57] irlba_2.3.5 callr_3.7.0 compiler_4.1.2 jquerylib_0.1.4
[61] rlang_1.0.1 grid_4.1.2 rstudioapi_0.13 rmarkdown_2.11
[65] gtable_0.3.0 DBI_1.1.2 reshape2_1.4.4 R6_2.5.1
[69] knitr_1.37 dplyr_1.0.8 fastmap_1.1.0 utf8_1.2.2
[73] rprojroot_2.0.2 desc_1.4.0 stringi_1.7.6 SQUAREM_2021.1
[77] Rcpp_1.0.8 vctrs_0.3.8 tidyselect_1.1.2 xfun_0.29
