Summary

1. L1 penalty in NNLM::nnmf either put no/littlle thresholding or thresholds all entries to zero.

2. nsNMF and snmf in NMF package give sparse estimate of loadings and factors.

Data

set.seed(123)
n = 99
p = 300
k= 4
mfac = 2 # controls PVE of dense factor
L = matrix(0, nrow=n, ncol=k)
F = matrix(0, nrow=p, ncol=k)

L[1:(n/3),1] = 1
L[((n/3)+1):(2*n/3),2] = 1
L[((2*n/3)+1):n,3] = 1
L[,4] = 1+mfac*runif(n)

F[1:(p/3),1] = 1+10*runif(p/3)
F[((p/3)+1):(2*p/3),2] = 1+10*runif(p/3)
F[((2*p/3)+1):p,3] = 1+10*runif(p/3)
F[,4]= 1+mfac*runif(p)

lambda = L %*% t(F)
X = matrix(rpois(n=length(lambda),lambda),nrow=n)
image(X)

Past versions of unnamed-chunk-1-1.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

NNLM-nnmf

library(NNLM)



fit_scd_L1.1 = NNLM::nnmf(A = X, k = 4, loss = "mse", method = "scd", max.iter = 10000, alpha=c(0,0,1))

for(i in 1:k){
    plot(fit_scd_L1.1$W[,i],main=paste0("L1 penalty = 1: estimated loadings ",i))
}

Past versions of unnamed-chunk-2-1.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-2.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-3.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-4.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

fit_scd_L1.10 = NNLM::nnmf(A = X, k = 4, loss = "mse", method = "scd", max.iter = 10000, alpha=c(0,0,10))

for(i in 1:k){
    plot(fit_scd_L1.10$W[,i],main=paste0("L1 penalty = 10: estimated loadings ",i))
}

Past versions of unnamed-chunk-2-5.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-6.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-7.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-8.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

fit_scd_L1.11 = NNLM::nnmf(A = X, k = 4, loss = "mse", method = "scd", max.iter = 10000, alpha=c(0,0,11))

for(i in 1:k){
    plot(fit_scd_L1.11$W[,i],main=paste0("L1 penalty = 11: estimated loadings ",i))
}

Past versions of unnamed-chunk-2-9.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-10.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-11.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-12.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

fit_scd_L1.100 = NNLM::nnmf(A = X, k = 4, loss = "mse", method = "scd", max.iter = 10000, alpha=c(0,0,100))

for(i in 1:k){
    plot(fit_scd_L1.100$W[,i],main=paste0("L1 penalty = 100: estimated loadings ",i))
}

Past versions of unnamed-chunk-2-13.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-14.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-15.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-2-16.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

NMF-nmf

Non-smooth NMF

Non-smooth NMF. Uses a modified version of Lee and Seung’s multiplicative updates for Kullback-Leibler divergence to fit a extension of the standard NMF model. It is meant to give sparser results.

Reference: Pascual-Montano2006

library(NMF)

Loading required package: pkgmaker

Loading required package: registry

Attaching package: 'pkgmaker'

The following object is masked from 'package:base':

    isFALSE

Loading required package: rngtools

Loading required package: cluster

NMF - BioConductor layer [OK] | Shared memory capabilities [NO: bigmemory] | Cores 7/8

  To enable shared memory capabilities, try: install.extras('
NMF
')

fit_nsNMF = nmf(X,4,method = 'nsNMF')

for(i in 1:k){
    plot(fit_nsNMF@fit@W[,i],main=paste0("nsNMF: estimated loadings ",i))
}

Past versions of unnamed-chunk-3-1.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-3-2.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-3-3.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-3-4.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

for(i in 1:k){
    plot(fit_nsNMF@fit@H[i,],main=paste0("nsNMF: estimated factors ",i))
}

Past versions of unnamed-chunk-3-5.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-3-6.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-3-7.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-3-8.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Sparse NMF

Alternating Least Square (ALS) approach. It is meant to be very fast com- pared to other approaches.

Reference: KimH2007

Sparse Loading:

fit_snmfl = nmf(X,4,method = 'snmf/l',beta=1)

Warning in nmf_snmf(beta = 1, A = y, x = x, version = "L", verbose
= FALSE): NMF::snmf - Too many restarts due to too big 'beta' value
[Computation stopped after the 9th restart]

for(i in 1:k){
    plot(fit_snmfl@fit@W[,i],main=paste0("snmfl: estimated loadings ",i))
}

Past versions of unnamed-chunk-4-1.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-4-2.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-4-3.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

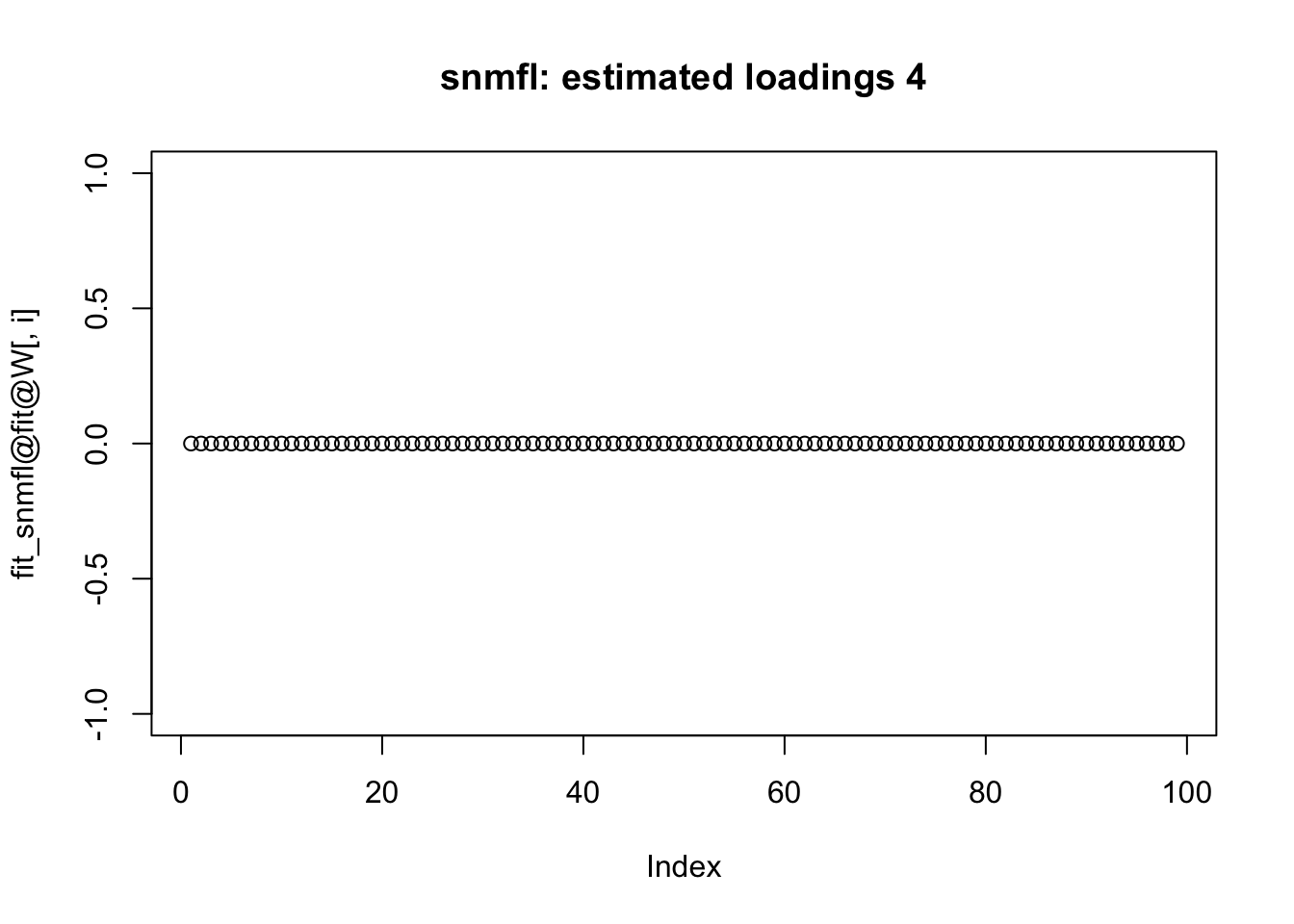

Past versions of unnamed-chunk-4-4.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Sparse Factors:

fit_snmfr = nmf(X,4,method = 'snmf/r',beta=1)

Warning in nmf_snmf(beta = 1, A = y, x = x, version = "R", verbose
= FALSE): NMF::snmf - Too many restarts due to too big 'beta' value
[Computation stopped after the 9th restart]

for(i in 1:k){
    plot(fit_snmfr@fit@H[i,],main=paste0("snmfr: estimated factors ",i))
}

Past versions of unnamed-chunk-5-1.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-5-2.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-5-3.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05

Past versions of unnamed-chunk-5-4.png

Version	Author	Date
1aacddd	Dongyue Xie	2019-11-05
