Outlier in Wavelet smoothing

New method 02/05/2020

The methods I tried on 02/01/2020 has a problem that it also treats true signal as outliers. For example, in step funciton, true signals are jumps hence have large level \(J-1\) wavelet coefficients but apparently they are not outliers. If setting their variance large, the smoothing is oversmoothed.

Inspired by Kovac and Silverman(1998), we can firstly identify the outliers and then set their variance to a larger one.

Identify outliers: 1. apply running mad to \(J-1\) level wavelet coefficients and obtain \(\hat\sigma\); 2. apply running median to y. If the difference between data point and med is greate than 3*\(\hat\sigma\), then set its vairance to be \(J-1\) level wavelet coefficients or running mean.

Now let’s try some examples

set.seed(12345)
n = 256
x = seq(-2*pi,2*pi,length.out = n)
f = 1.5*sin(x) + sin(2*x)
e_z = rbinom(n,1,0.05)
e = e_z*rnorm(n,0,1) + (1-e_z)*rnorm(n,0,1/rgamma(10,5))
y = f+e

# identify outliers
library(caTools)
library(wavethresh)

Loading required package: MASS

WaveThresh: R wavelet software, release 4.6.8, installed

Copyright Guy Nason and others 1993-2016

Note: nlevels has been renamed to nlevelsWT

J = log(n,2)-1
x.w = wd(y, filter.number=1,family='DaubExPhase', type = "station")
win.size = 25
sigma.est = runmad(accessD(x.w, J - 1), win.size, endrule = "func")
outliers.idx = which(abs(y-runquantile(y,win.size,probs=0.5, endrule = "func"))>2.58*sigma.est)

# plot outliers
plot(y,col='grey80')
points(outliers.idx,y[outliers.idx],col=4,pch=16)

sigma.est[outliers.idx] = accessD(x.w, J - 1)[outliers.idx]

library(smashr)

Past versions of unnamed-chunk-1-1.png

plot(y,col='grey80')
lines(smash.gaus(y))

Past versions of unnamed-chunk-1-2.png

plot(y,col='grey80')
lines(smash.gaus(y,sigma.est),col=4)

Introduction

Investigate how the outlier will influecne the wavelet smoothing and how to automatically account for outliers.

Generate outliers from Huber’s contamination model:

set.seed(12345)
n = 256
x = seq(-2*pi,2*pi,length.out = n)
f = 1.5*sin(x) + sin(2*x)
e_z = rbinom(n,1,0.05)
e = e_z*rnorm(n,0,1) + (1-e_z)*rnorm(n,0,0.2)
y = f+e
library(smashr)
out = smash.gaus(y)
plot(y,col='grey80')
lines(out)

Past versions of unnamed-chunk-2-1.png

plot(y,col='grey80')
lines(ti.thresh(y))

Try robust scatter plot smoothing

plot(y,col='grey80')
lines(runmed(y,11))

Past versions of unnamed-chunk-3-1.png

Let’s see the outliers

plot(x,y)
points(x[which(e_z==1)],y[which(e_z==1)],pch=16,col=4)

Past versions of unnamed-chunk-4-1.png

Running mad estimate of variance:

library(wavethresh)
library(caTools)
J = log2(n)
x.w = wd(y, filter.number=1,family='DaubExPhase', type = "station")
win.size = 25
sigma.est = runmad(accessD(x.w, J - 1), win.size, endrule = "func")

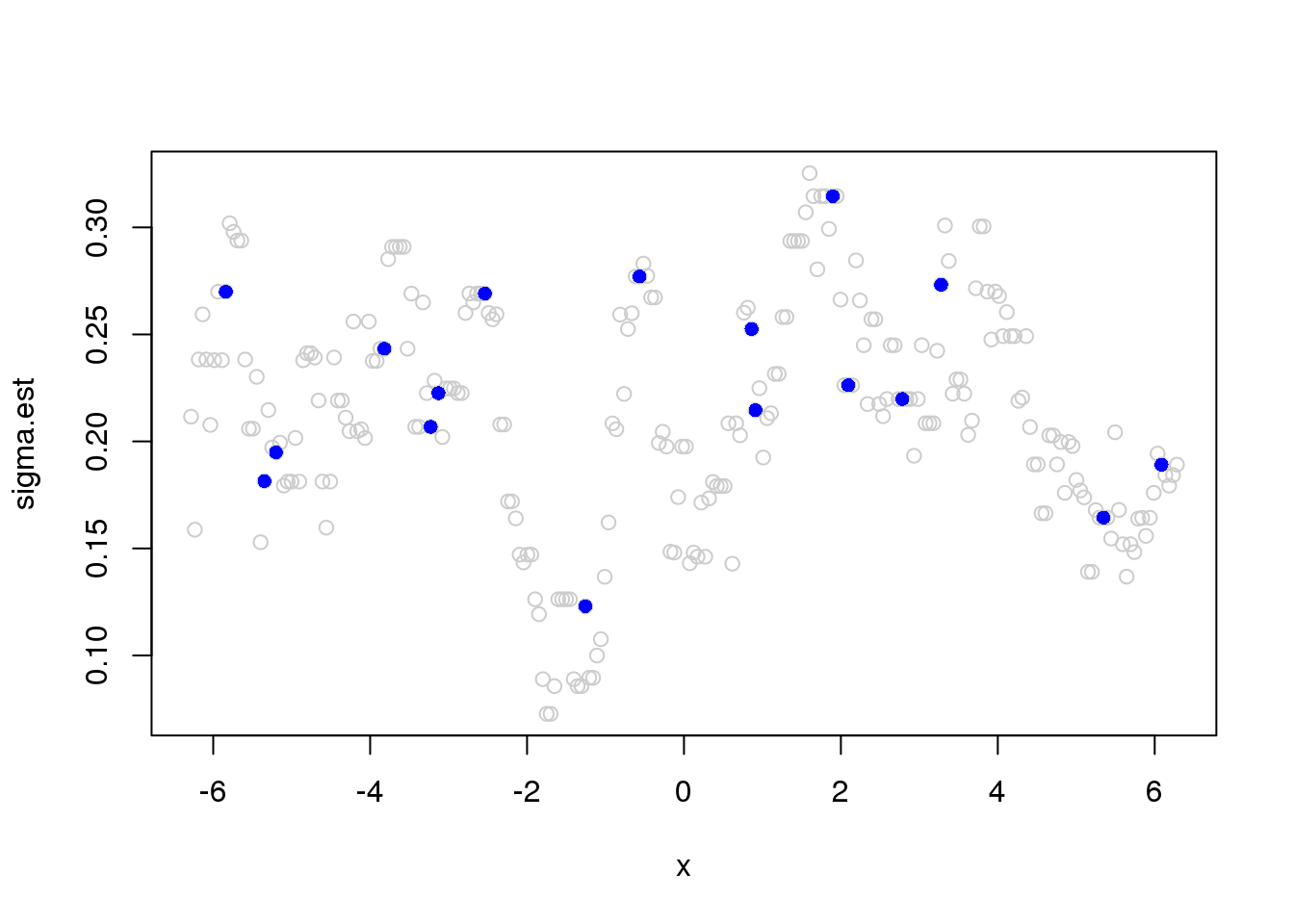

plot(x,sigma.est,col='grey80')
points(x[which(e_z==1)],sigma.est[which(e_z==1)],pch=16,col=4)

Past versions of unnamed-chunk-5-1.png

plot(abs(y[which(e_z==1)] - f[which(e_z==1)]),sigma.est[which(e_z==1)])
abline(0,1)

# reduce window size

win.size = 10
sigma.est = runmad(accessD(x.w, J - 1), win.size, endrule = "func")

Warning in runmed(x, k): 'k' must be odd! Changing 'k' to 11

plot(x,sigma.est,col='grey80')
points(x[which(e_z==1)],sigma.est[which(e_z==1)],pch=16,col=4)

plot(abs(y[which(e_z==1)] - f[which(e_z==1)]),sigma.est[which(e_z==1)])
abline(0,1)

plot(y,col='grey80')
lines(smash.gaus(y,sigma.est))

#

win.size = 3
sigma.est = runmad(accessD(x.w, J - 1), win.size, endrule = "func")


plot(x,sigma.est,col='grey80')
points(x[which(e_z==1)],sigma.est[which(e_z==1)],pch=16,col=4)

plot(abs(y[which(e_z==1)] - f[which(e_z==1)]),sigma.est[which(e_z==1)])
abline(0,1)

plot(x,y,col='grey80')
lines(x,smash.gaus(y,sigma.est))
lines(x,f,col=4)

Summary 1

can not achieve robustness via change running MAD window size

Let’s look at the finest level NDWT coefficients

plot(x,accessD(x.w, J - 1))
points(x[which(e_z==1)],accessD(x.w, J - 1)[which(e_z==1)],pch=16,col=4)

Past versions of unnamed-chunk-6-1.png

Let’s directly use the absolute deviation as the sigma.est. Much better….

plot(y,col='grey80')
lines(smash.gaus(y,abs(accessD(x.w, J - 1)-median(accessD(x.w, J - 1)))))

Past versions of unnamed-chunk-7-1.png

plot(y,col='grey80')
lines(ti.thresh(y,abs(accessD(x.w, J - 1)-median(accessD(x.w, J - 1)))))

Let’s increase the number of outliers

set.seed(12345)
e_z = rbinom(n,1,0.1)
e = e_z*rnorm(n,0,1) + (1-e_z)*rnorm(n,0,0.2)
y = f+e
x.w = wd(y, filter.number=1,family='DaubExPhase', type = "station")

plot(y,col='grey80')
lines(smash.gaus(y,abs(accessD(x.w, J - 1)-median(accessD(x.w, J - 1)))))

Past versions of unnamed-chunk-10-1.png

plot(y,col='grey80')
lines(ti.thresh(y,abs(accessD(x.w, J - 1)-median(accessD(x.w, J - 1)))))

Let’s increase the variance of outliers

set.seed(12345)
e_z = rbinom(n,1,0.1)
e = e_z*rnorm(n,0,3) + (1-e_z)*rnorm(n,0,0.2)
y = f+e
x.w = wd(y, filter.number=1,family='DaubExPhase', type = "station")

plot(y,col='grey80')
lines(smash.gaus(y,abs(accessD(x.w, J - 1)-median(accessD(x.w, J - 1)))))

Past versions of unnamed-chunk-13-1.png

plot(y,col='grey80')
lines(ti.thresh(y,abs(accessD(x.w, J - 1)-median(accessD(x.w, J - 1)))))

Let’s increase the variance of outliers and variance of random errors

set.seed(12345)
e_z = rbinom(n,1,0.1)
e = e_z*rnorm(n,0,4) + (1-e_z)*rnorm(n,0,1)
y = f+e
x.w = wd(y, filter.number=1,family='DaubExPhase', type = "station")

plot(y,col='grey80')
lines(smash.gaus(y,abs(accessD(x.w, J - 1)-median(accessD(x.w, J - 1)))))

Past versions of unnamed-chunk-16-1.png

plot(y,col='grey80')
lines(ti.thresh(y,abs(accessD(x.w, J - 1)-median(accessD(x.w, J - 1)))))

Past versions of unnamed-chunk-17-1.png

Pseudo-data approach

http://stat.snu.ac.kr/heeseok/html/paper/robusttech.pdf

smooth_outlier = function(y,maxiter=10,tol=1e-4){
  f_hat = ti.thresh(y)
  niter = 1
  while(niter<=maxiter){
    niter = niter + 1
    y_tilde = f_hat + tanh(y-f_hat)/2
    f_hat_new = ti.thresh(y_tilde)
    if(norm(f_hat-f_hat_new,'2')<=tol){
      break
    }else{
      f_hat = f_hat_new
    }
  }
  f_hat_new
}

plot(y,col='grey80')
lines(smooth_outlier(y))

Too slow. Does not work well.
