Last updated: 2018-05-08

workflowr checks: (Click a bullet for more information)

  • ✔ R Markdown file: up-to-date

    Great! Since the R Markdown file has been committed to the Git repository, you know the exact version of the code that produced these results.

  • ✔ Environment: empty

    Great job! The global environment was empty. Objects defined in the global environment can affect the analysis in your R Markdown file in unknown ways. For reproduciblity it’s best to always run the code in an empty environment.

  • ✔ Seed: set.seed(20180501)

    The command set.seed(20180501) was run prior to running the code in the R Markdown file. Setting a seed ensures that any results that rely on randomness, e.g. subsampling or permutations, are reproducible.

  • ✔ Session information: recorded

    Great job! Recording the operating system, R version, and package versions is critical for reproducibility.

  • ✔ Repository version: ee5a02b

    Great! You are using Git for version control. Tracking code development and connecting the code version to the results is critical for reproducibility. The version displayed above was the version of the Git repository at the time these results were generated.

    Note that you need to be careful to ensure that all relevant files for the analysis have been committed to Git prior to generating the results (you can use wflow_publish or wflow_git_commit). workflowr only checks the R Markdown file, but you know if there are other scripts or data files that it depends on. Below is the status of the Git repository when the results were generated:

Ignored files:
    Ignored:    .Rhistory
    Ignored:    .Rproj.user/
    Ignored:    log/

Untracked files:
    Untracked:  analysis/overdis.Rmd
    Untracked:  docs/figure/iter1.Rmd/

Unstaged changes:
    Modified:   analysis/nugget.Rmd
    Note that any generated files, e.g. HTML, png, CSS, etc., are not included in this status report because it is ok for generated content to have uncommitted changes.
Expand here to see past versions:
    File Version Author Date Message
    Rmd ee5a02b Dongyue 2018-05-08 one iteration
    Rmd 81599ba Dongyue 2018-05-08 one iteration

#' smash generaliation function

#' A modified version. Instead of input \sigma^2+s_t^2 and estiamte \mu_t, we simply input s_t^2 and after convergence, input both to estimate the final \mu_t.

#' This function is for $Y_t=\mu_t+N(0,s_t^2)+N(0,\sigma^2)$ with known $s_t^2$ and $\sigma^2$.


#' @param x: a vector of observations
#' @param sigma: standard deviations, scalar.
#' @param family: choice of wavelet basis to be used, as in wavethresh.
#' @param niter: number of iterations for IRLS
#' @param tol: tolerance of the criterion to stop the iterations


smash.gen=function(x,sigma,family='DaubExPhase',niter=30,tol=1e-2){
  mu=c()
  s=c()
  y=c()
  munorm=c()
  mu=rbind(mu,rep(mean(x),length(x)))
  s=rbind(s,rep(1/mu[1],length(x)))
  y=rbind(y,log(mean(x))+(x-mean(x))/mean(x))
  for(i in 1:niter){
    vars=ifelse(s[i,]<0,1e-8,s[i,])
    mu.hat=smash.gaus(y[i,],sigma=sqrt(vars))#mu.hat is \mu_t+E(u_t|y)

    mu=rbind(mu,mu.hat)
    munorm[i]=norm(mu.hat-mu[i,],'2')
    if(munorm[i]<tol){
      break
    }
    #update m and s_t
    mt=exp(mu.hat)
    s=rbind(s,1/mt)
    y=rbind(y,log(mt)+(x-mt)/mt)


  }
  mu.hat=smash.gaus(y[i,],sigma = sqrt(sigma^2+ifelse(s[i,]<0,1e-8,s[i,])))
  return(list(mu.hat=mu.hat,mu=mu,s=s,y=y,munorm=munorm))
}
#' Simulation study comparing smash and smashgen

simu_study=function(m,sigma,seed=1234,
                    niter=1,family='DaubExPhase',tol=1e-2,
                    reflect=FALSE){
  set.seed(seed)
  lamda=exp(m+rnorm(length(m),0,sigma))
  x=rpois(length(m),lamda)
  #fit data
  smash.out=smash.poiss(x,reflect=reflect)
  smash.gen.out=smash.gen(x,sigma=sigma,niter=niter,family = family,tol=tol)
  return(list(smash.out=smash.out,smash.gen.out=exp(smash.gen.out$mu.hat),smash.gen.est=smash.gen.out,x=x,loglik=smash.gen.out$loglik))
}

Simulation 1: Constant trend Poisson nugget

\(\sigma=0.01\)

library(smashr)
m=rep(3,256)
simu.out=simu_study(m,0.01)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright", # places a legend at the appropriate place
       c("truth","smash-gen"), # puts text in the legend
       lty=c(1,1), # gives the legend appropriate symbols (lines)
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

\(\sigma=0.1\)

simu.out=simu_study(m,0.1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

\(\sigma=0.5\)

simu.out=simu_study(m,0.5)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m),col='gray80')
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m),col='gray80')
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

\(\sigma=1\)

simu.out=simu_study(m,1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m),col='black')
legend("topleft",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m),col='black')
legend("topleft",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

Simulation 2: Step trend

\(\sigma=0.01\)

m=c(rep(3,128), rep(5, 128), rep(6, 128), rep(3, 128))
simu.out=simu_study(m,0.01)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

\(\sigma=0.1\)

simu.out=simu_study(m,0.1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

\(\sigma=0.5\)

simu.out=simu_study(m,0.5)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topright",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

\(\sigma=1\)

simu.out=simu_study(m,1)

#par(mfrow = c(1,2))

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.gen.out, col = "red", lwd = 2)
lines(exp(m))
legend("topleft",
       c("truth","smash-gen"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black","red", "blue"))

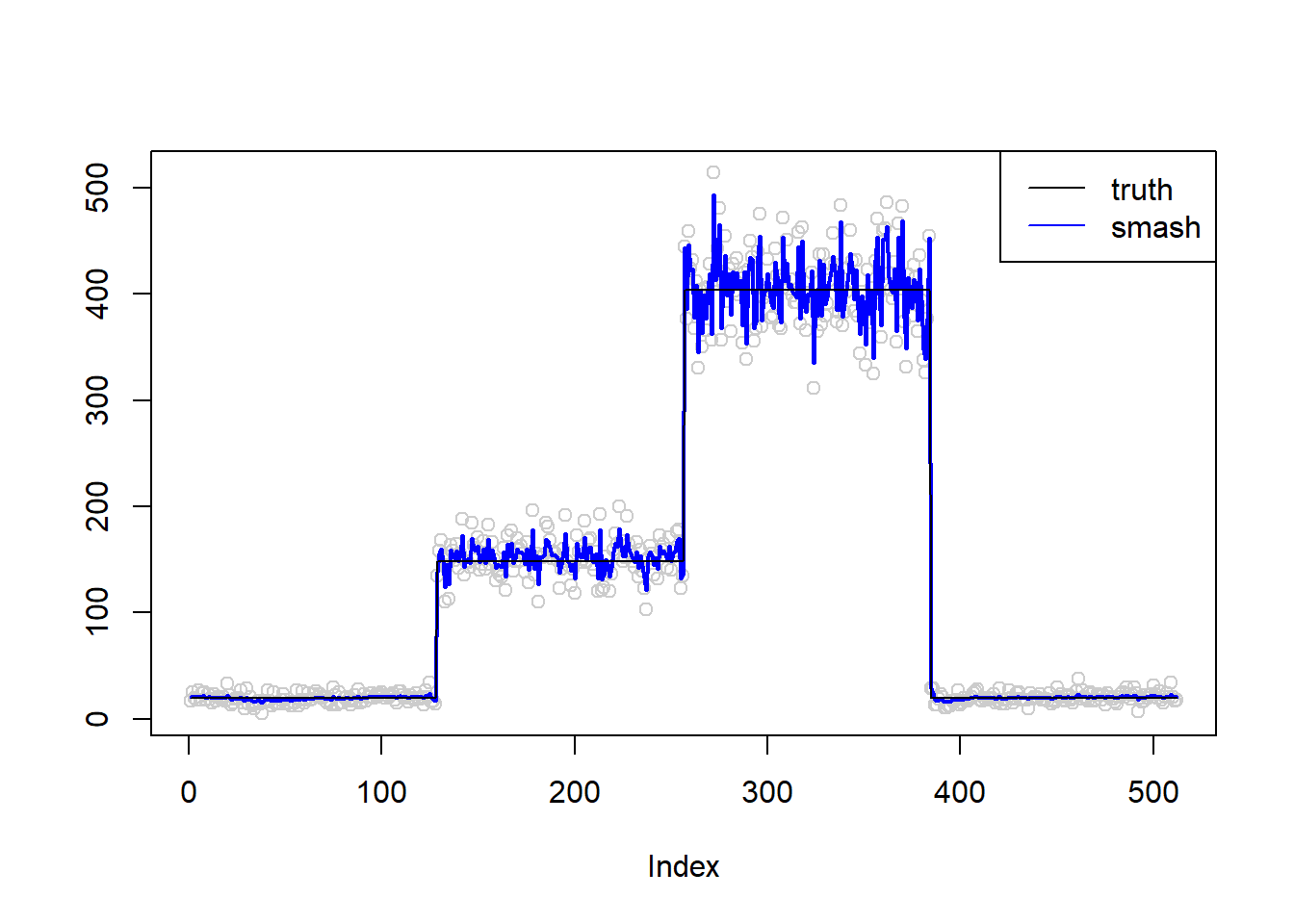

plot(simu.out$x,col = "gray80" ,ylab = '')
lines(simu.out$smash.out, col = "blue", lwd = 2)
lines(exp(m))
legend("topleft",
       c("truth", "smash"),
       lty=c(1,1),
       lwd=c(1,1),
       cex = 1,
       col=c("black", "blue"))

Session information

sessionInfo()
R version 3.4.0 (2017-04-21)
Platform: x86_64-w64-mingw32/x64 (64-bit)
Running under: Windows 10 x64 (build 16299)

Matrix products: default

locale:
[1] LC_COLLATE=English_United States.1252
[2] LC_CTYPE=English_United States.1252
[3] LC_MONETARY=English_United States.1252
[4] LC_NUMERIC=C
[5] LC_TIME=English_United States.1252

attached base packages:
[1] stats     graphics  grDevices utils     datasets  methods   base

other attached packages:
[1] smashr_1.1-1

loaded via a namespace (and not attached):
 [1] Rcpp_0.12.16        knitr_1.20          whisker_0.3-2
 [4] magrittr_1.5        workflowr_1.0.1     REBayes_1.3
 [7] MASS_7.3-47         pscl_1.4.9          doParallel_1.0.11
[10] SQUAREM_2017.10-1   lattice_0.20-35     foreach_1.4.3
[13] ashr_2.2-7          stringr_1.3.0       caTools_1.17.1
[16] tools_3.4.0         parallel_3.4.0      grid_3.4.0
[19] data.table_1.10.4-3 R.oo_1.21.0         git2r_0.21.0
[22] iterators_1.0.8     htmltools_0.3.5     assertthat_0.2.0
[25] yaml_2.1.19         rprojroot_1.3-2     digest_0.6.13
[28] Matrix_1.2-9        bitops_1.0-6        codetools_0.2-15
[31] R.utils_2.6.0       evaluate_0.10       rmarkdown_1.8
[34] wavethresh_4.6.8    stringi_1.1.6       compiler_3.4.0
[37] Rmosek_8.0.69       backports_1.0.5     R.methodsS3_1.7.1
[40] truncnorm_1.0-7

This reproducible R Markdown analysis was created with workflowr 1.0.1
