Compare smash and smashgen on estimating \(\mu\) and \(\log\mu\). \(T=256\), 100 runs.

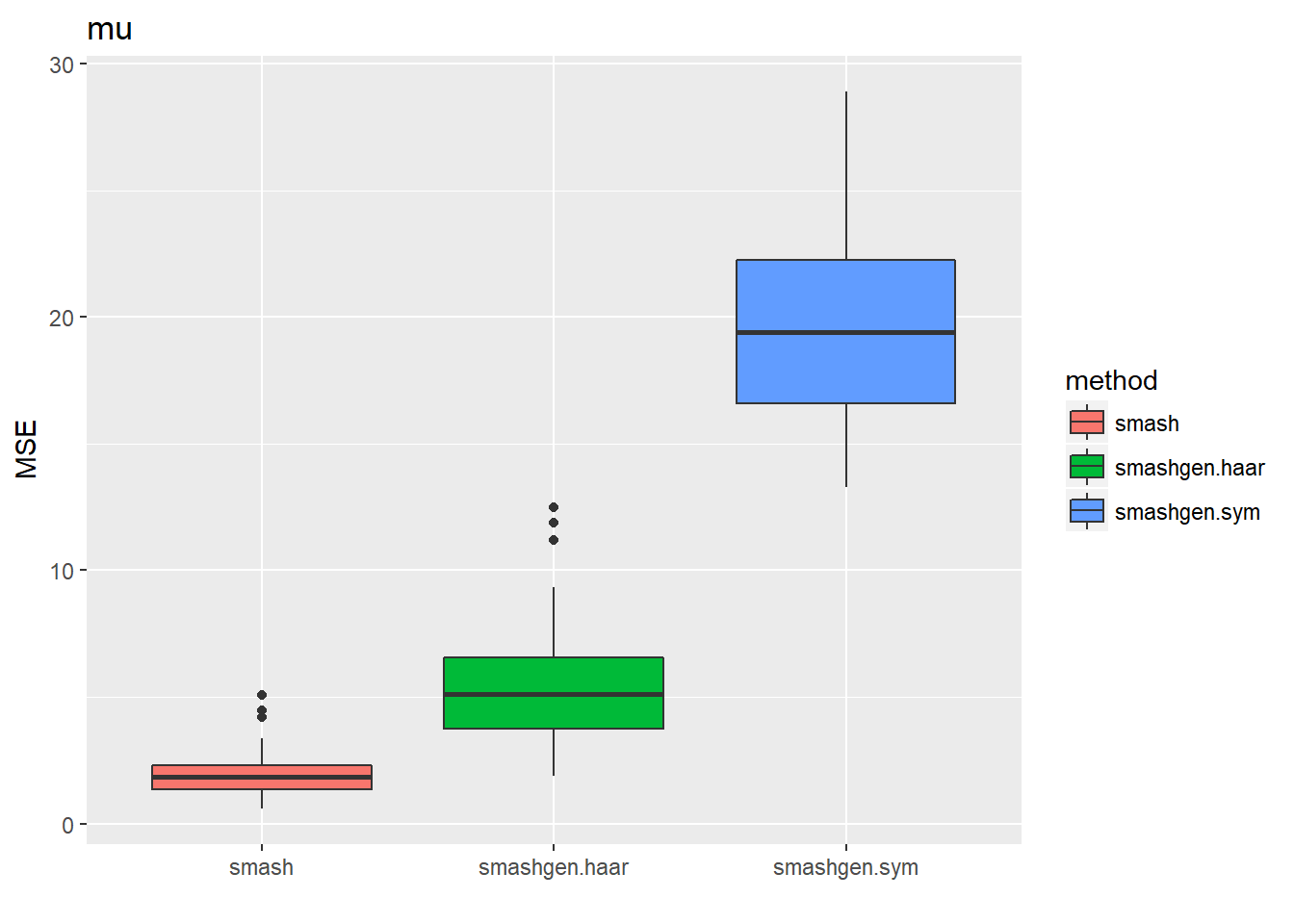

Step Function

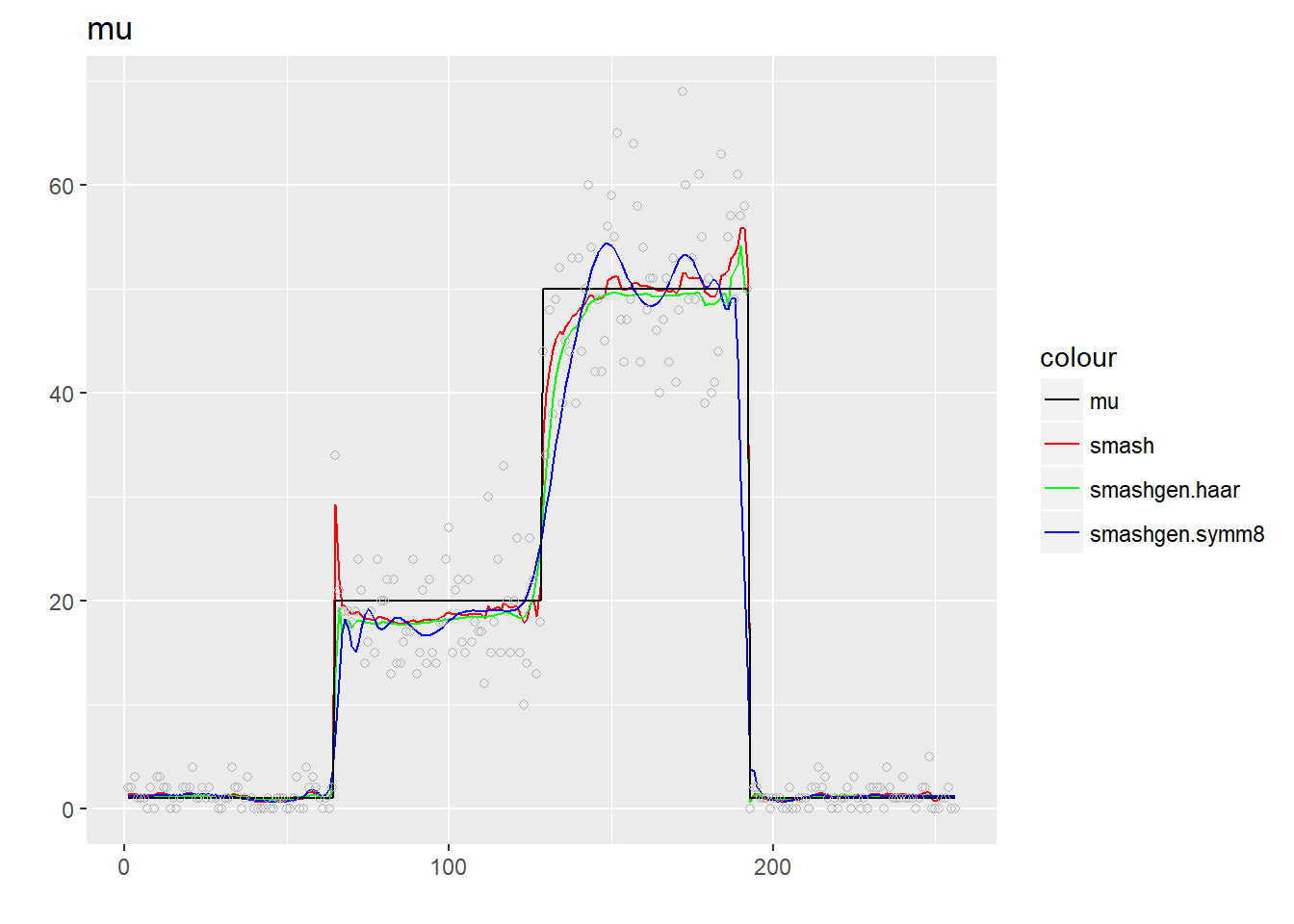

Mean function Range:(1,50)

mu=c(rep(1,64), rep(20, 64), rep(50, 64), rep(1, 64))
result=simu_study_scale(mu,nsimu=100)

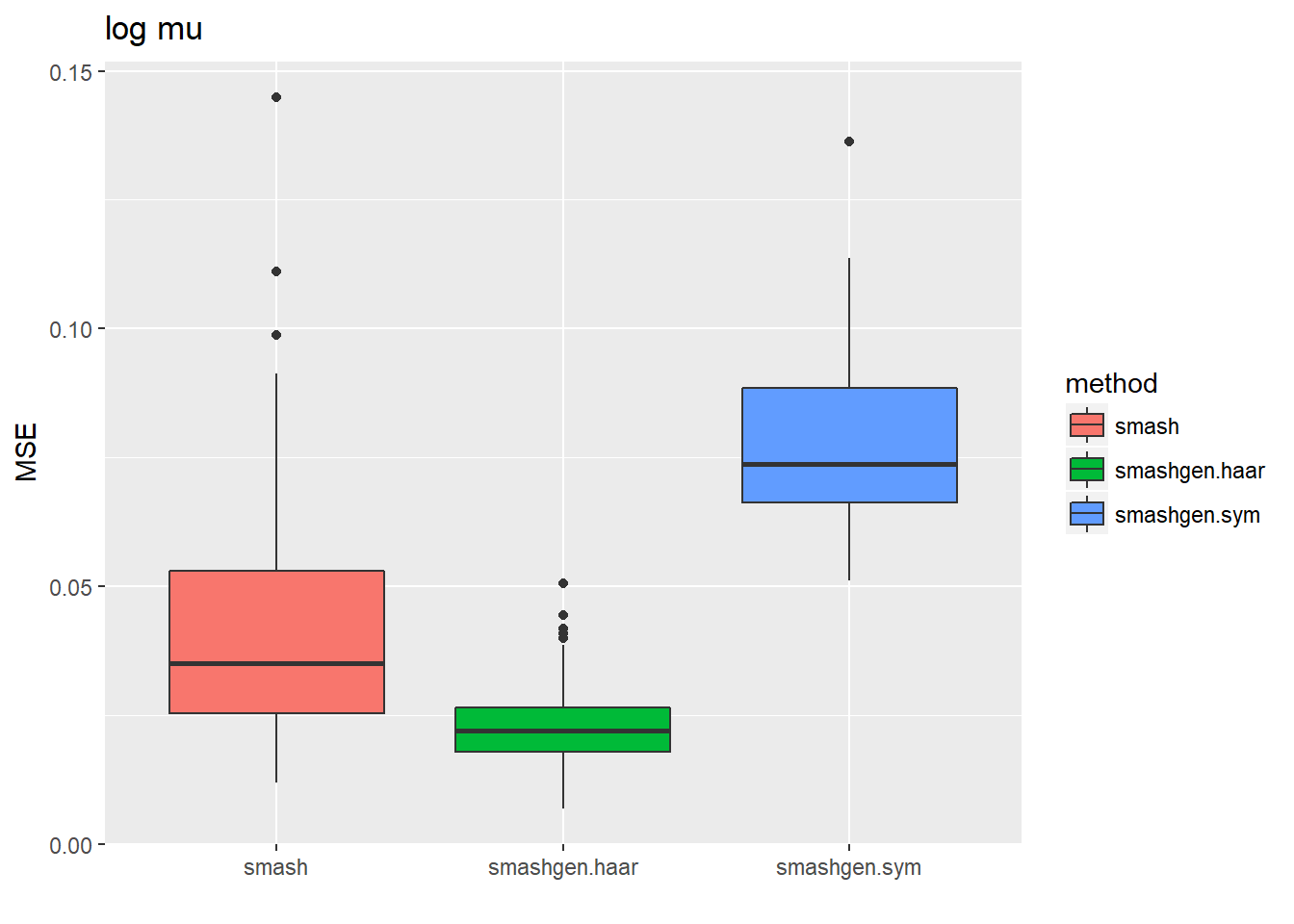

ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

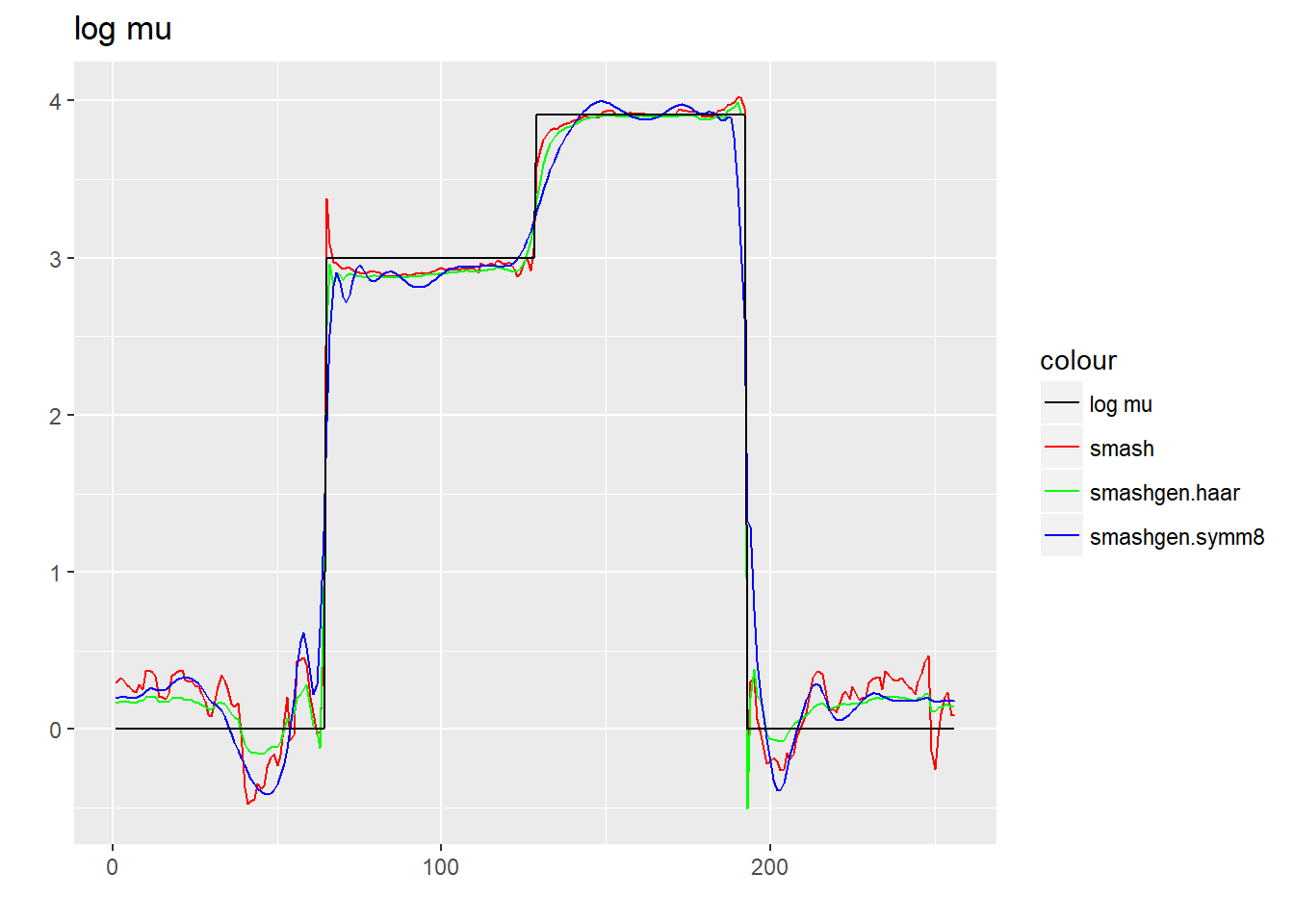

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

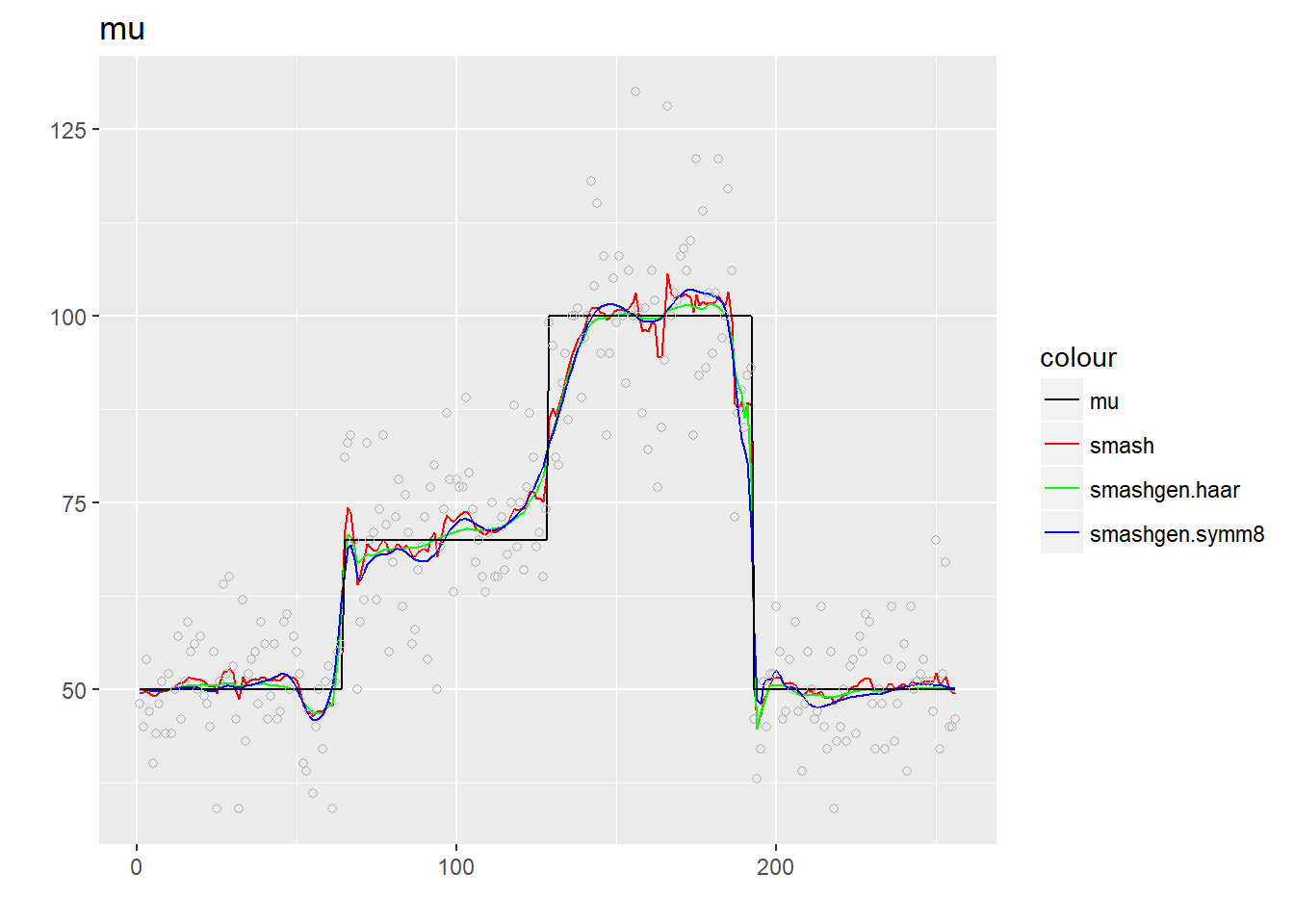

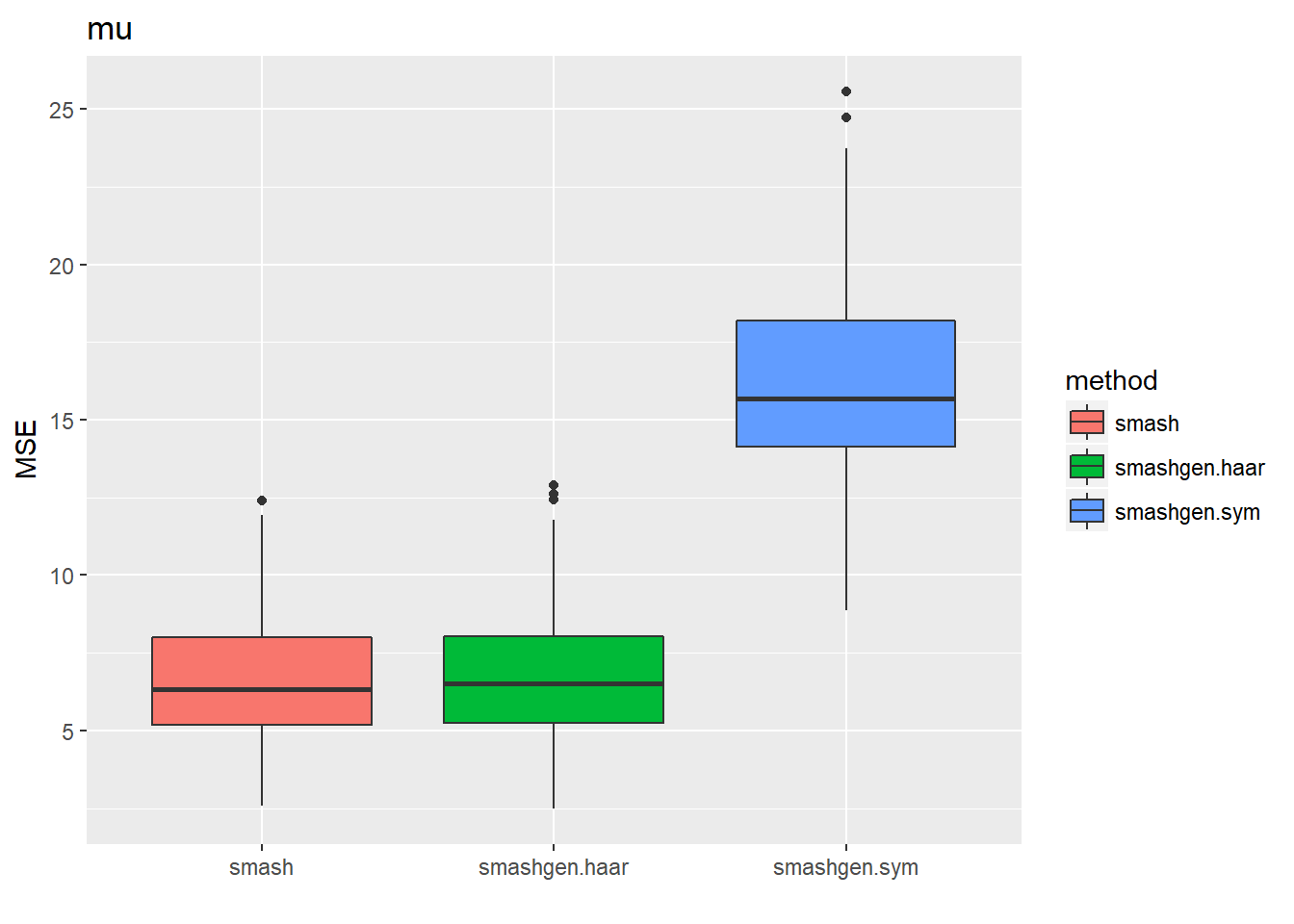

Mean function Range:(50,100)

mu=c(rep(50,64), rep(70, 64), rep(100, 64), rep(50, 64))
result=simu_study_scale(mu,nsimu=100)

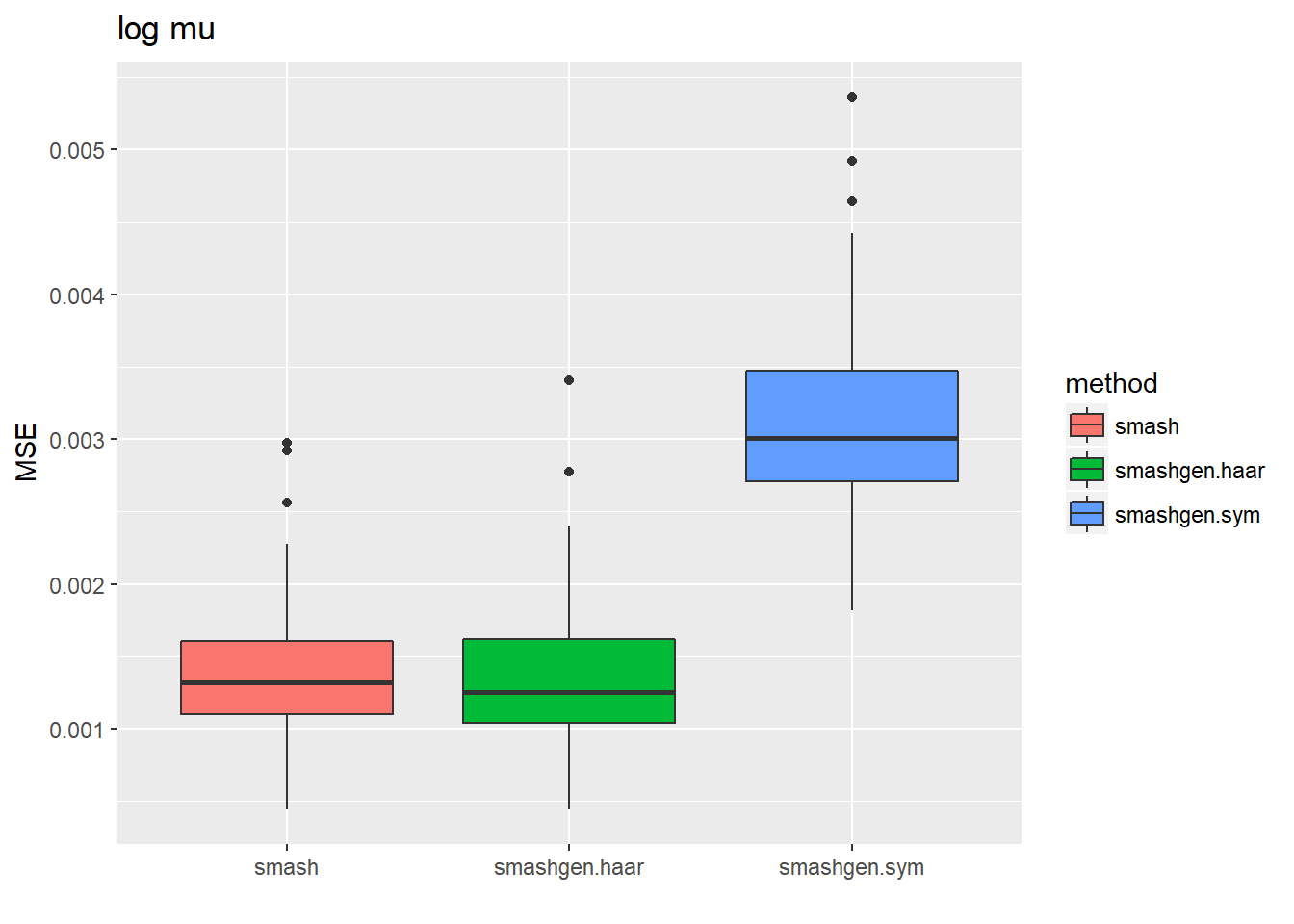

ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

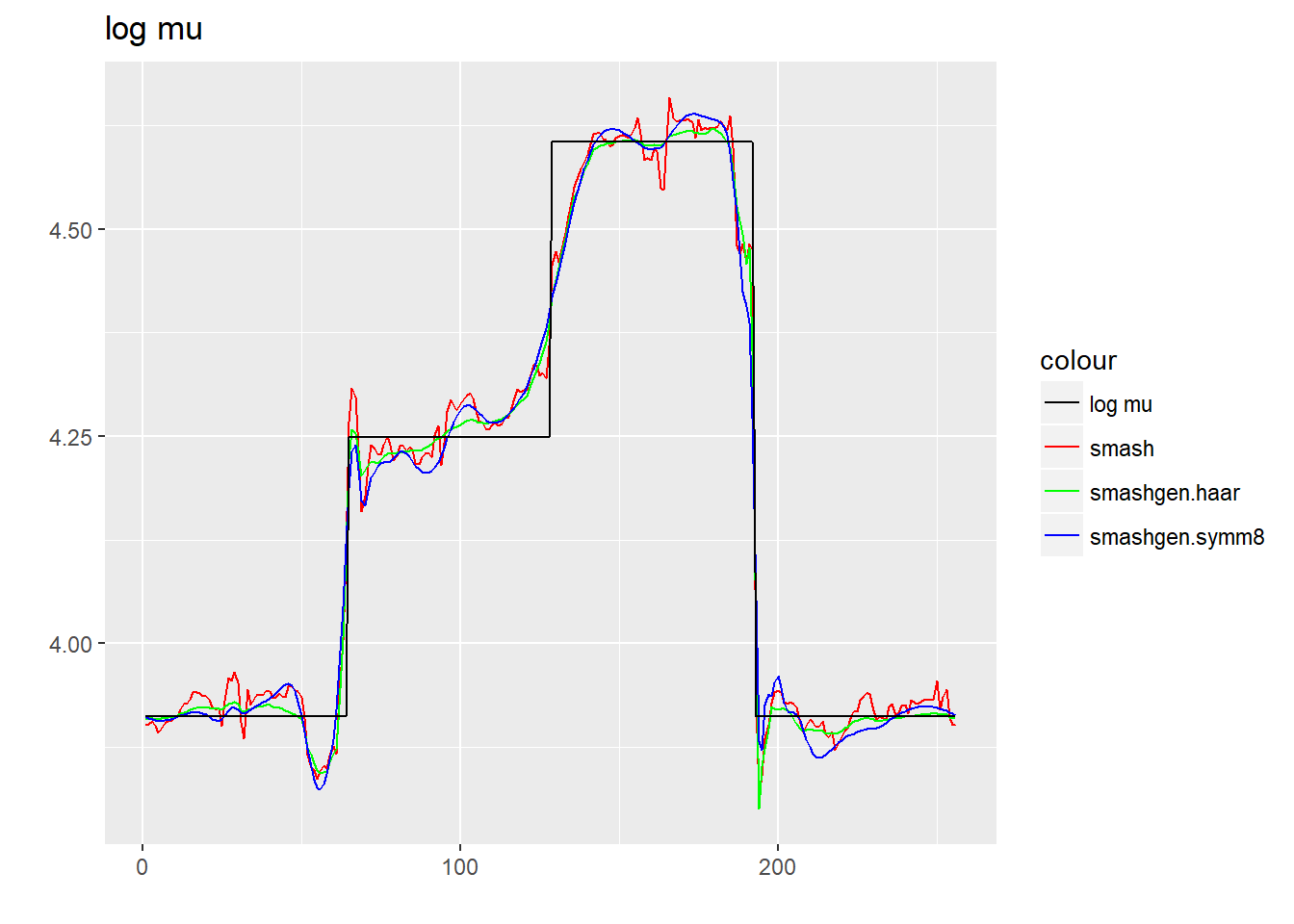

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

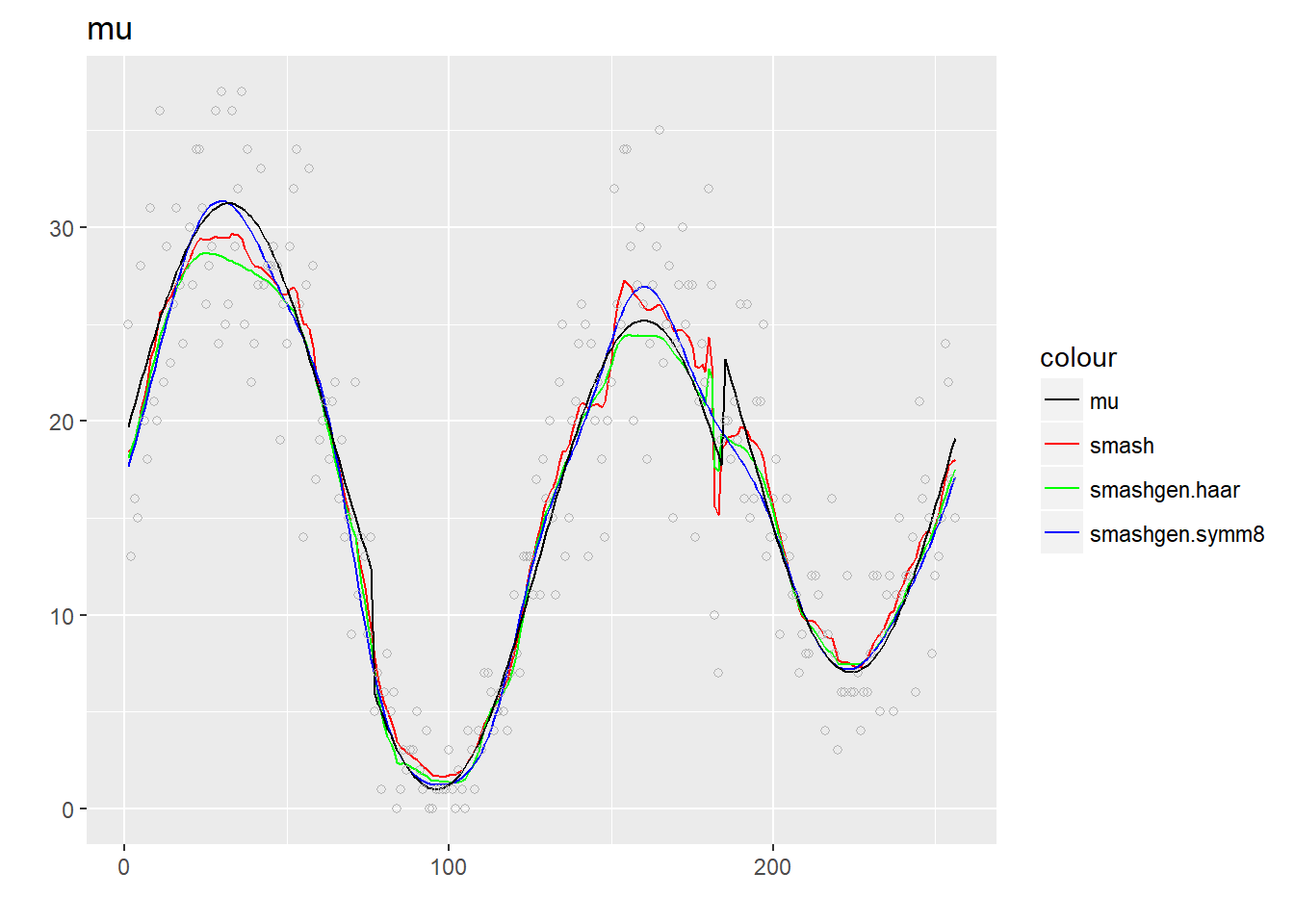

HeaviSine

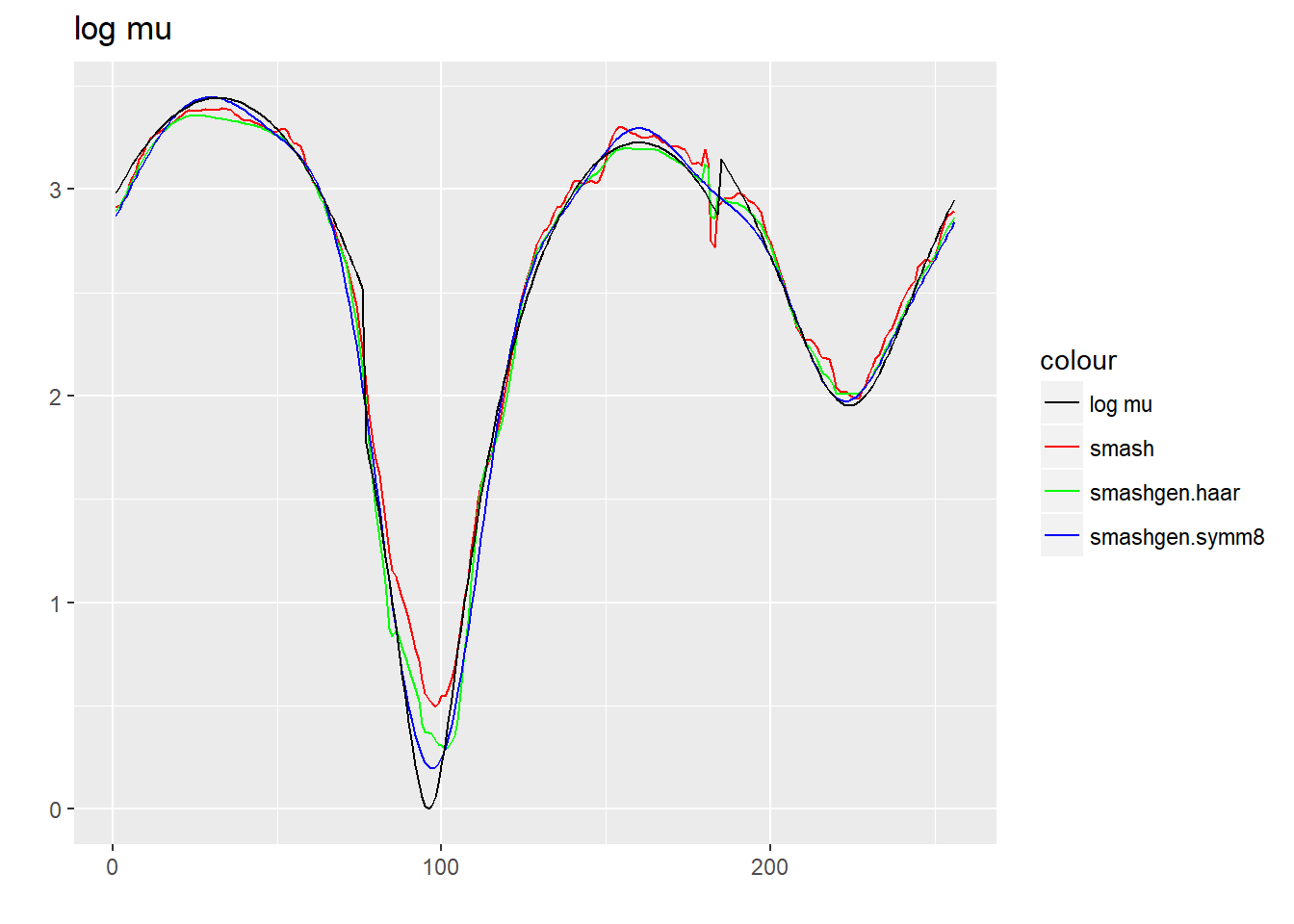

Range: (1,31)

mu=DJ.EX(256,signal = 9)$heavi
mu=mu-min(mu)+1
result=simu_study_scale(mu,nsimu=100)
ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

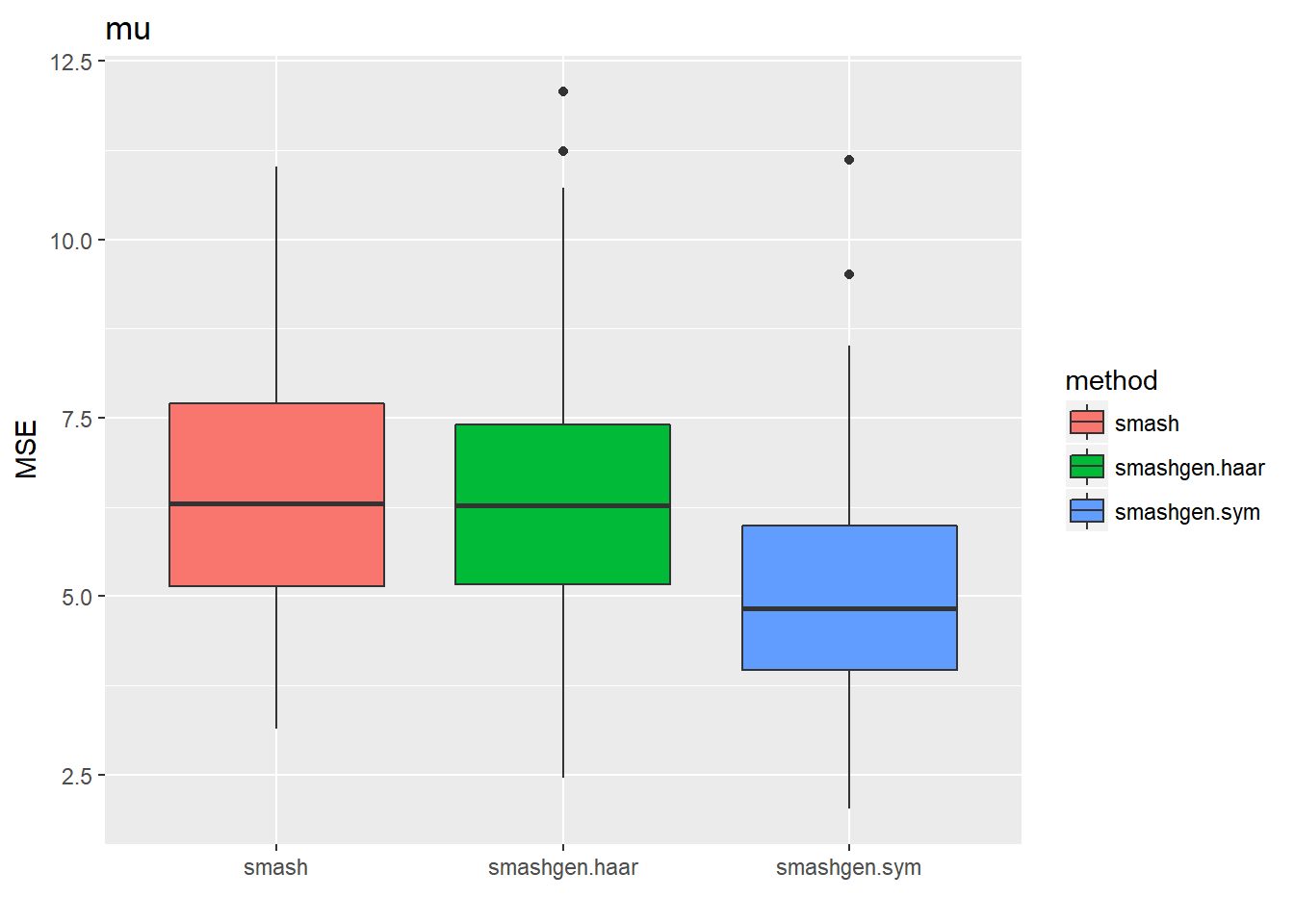

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

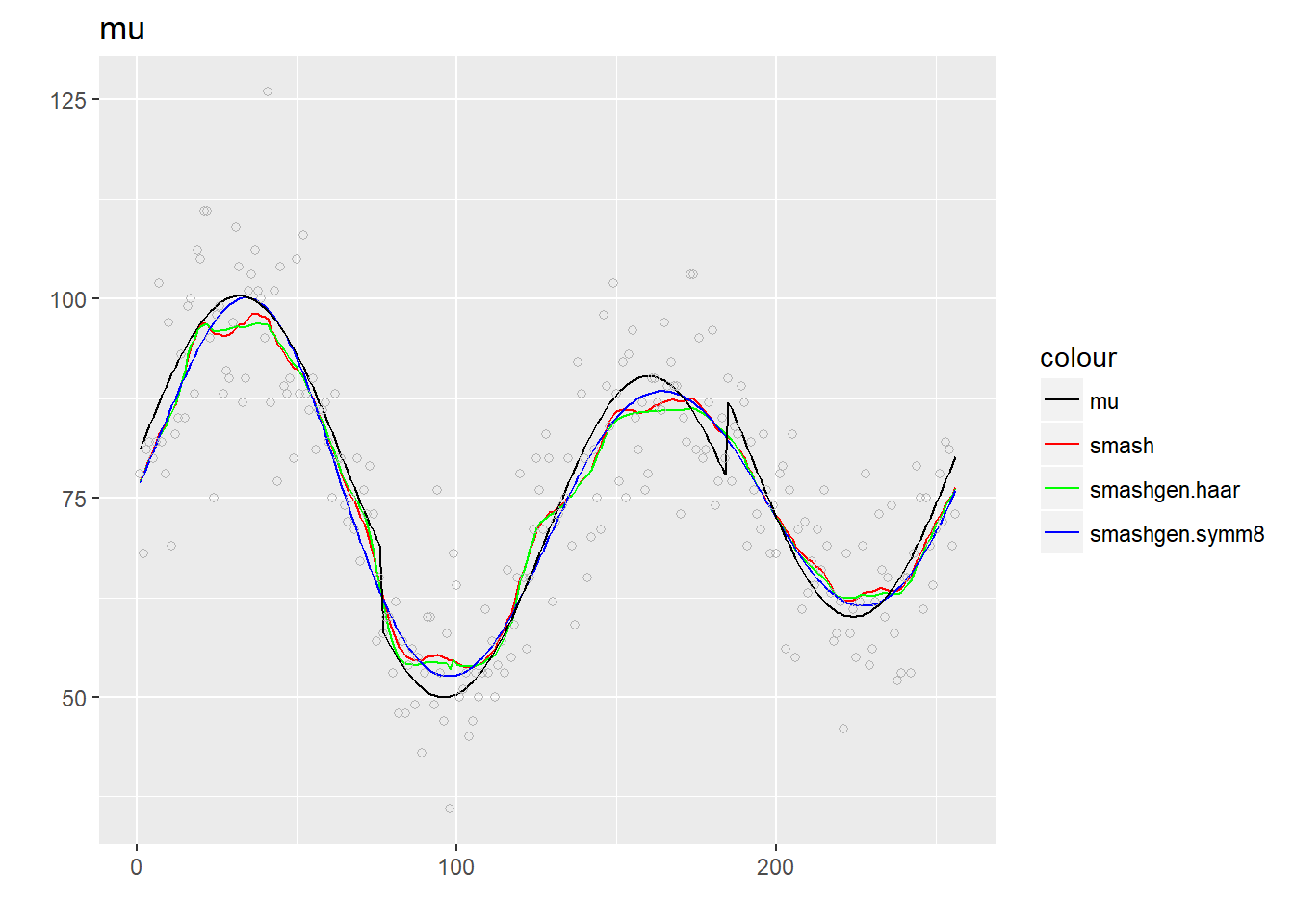

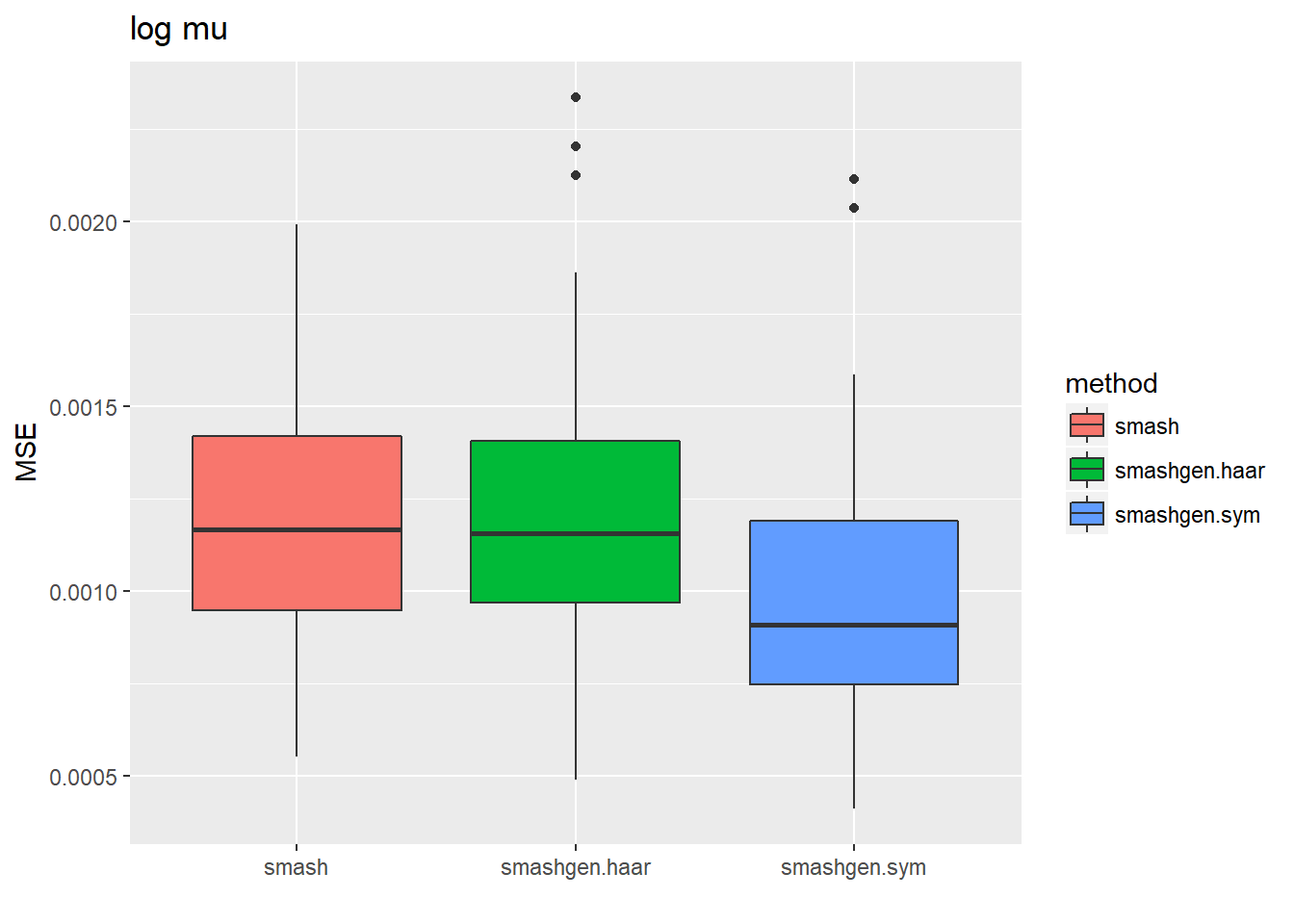

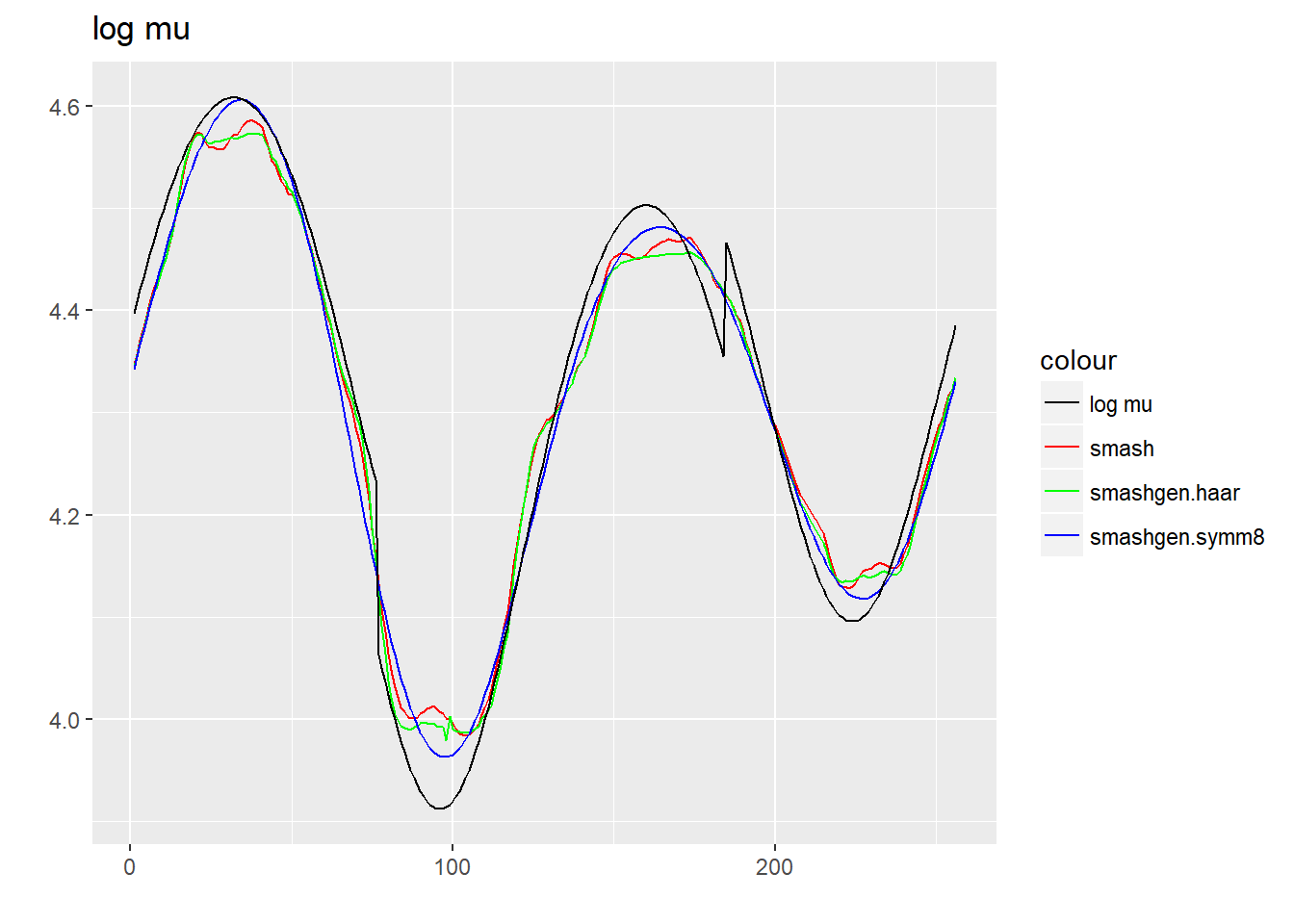

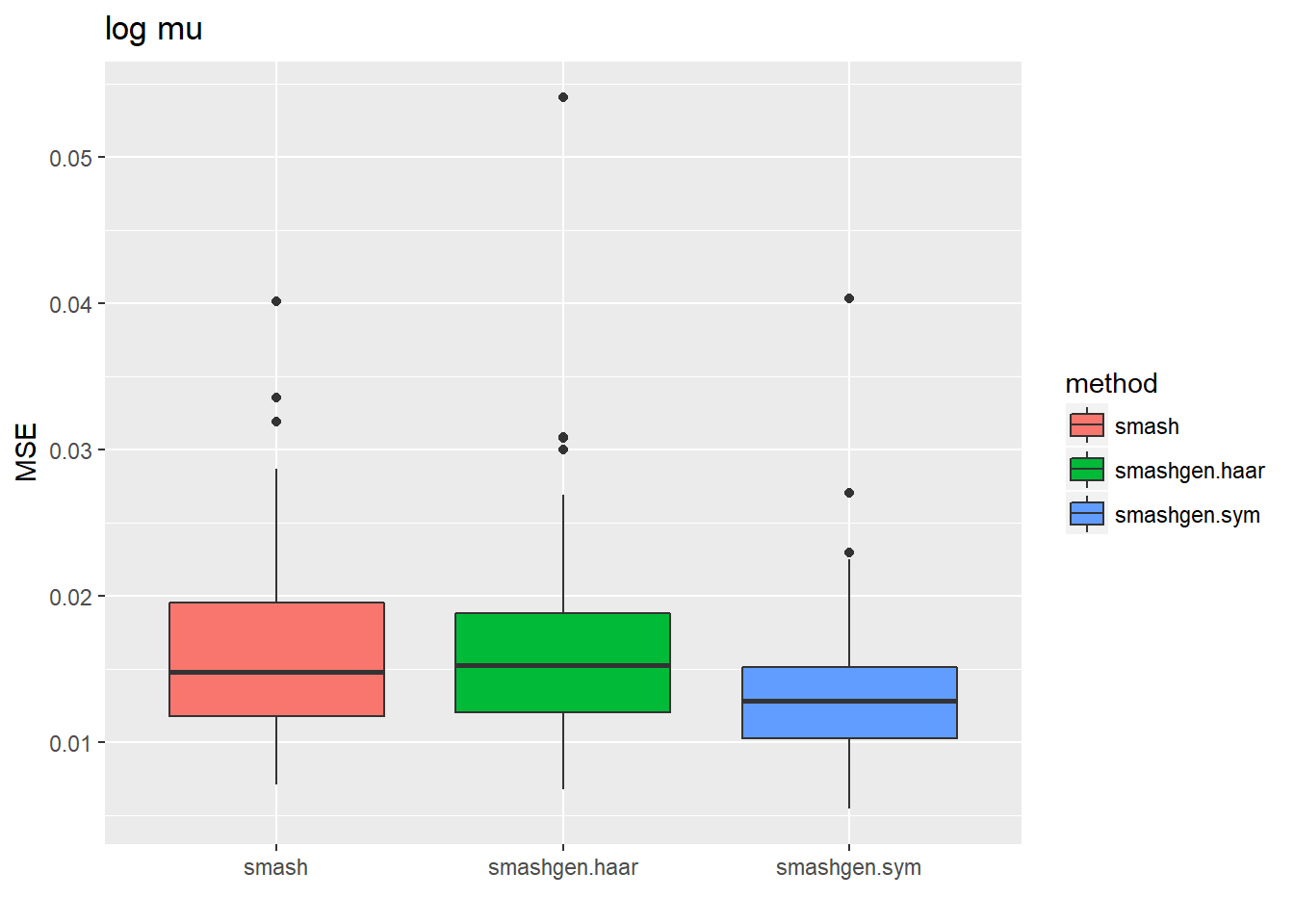

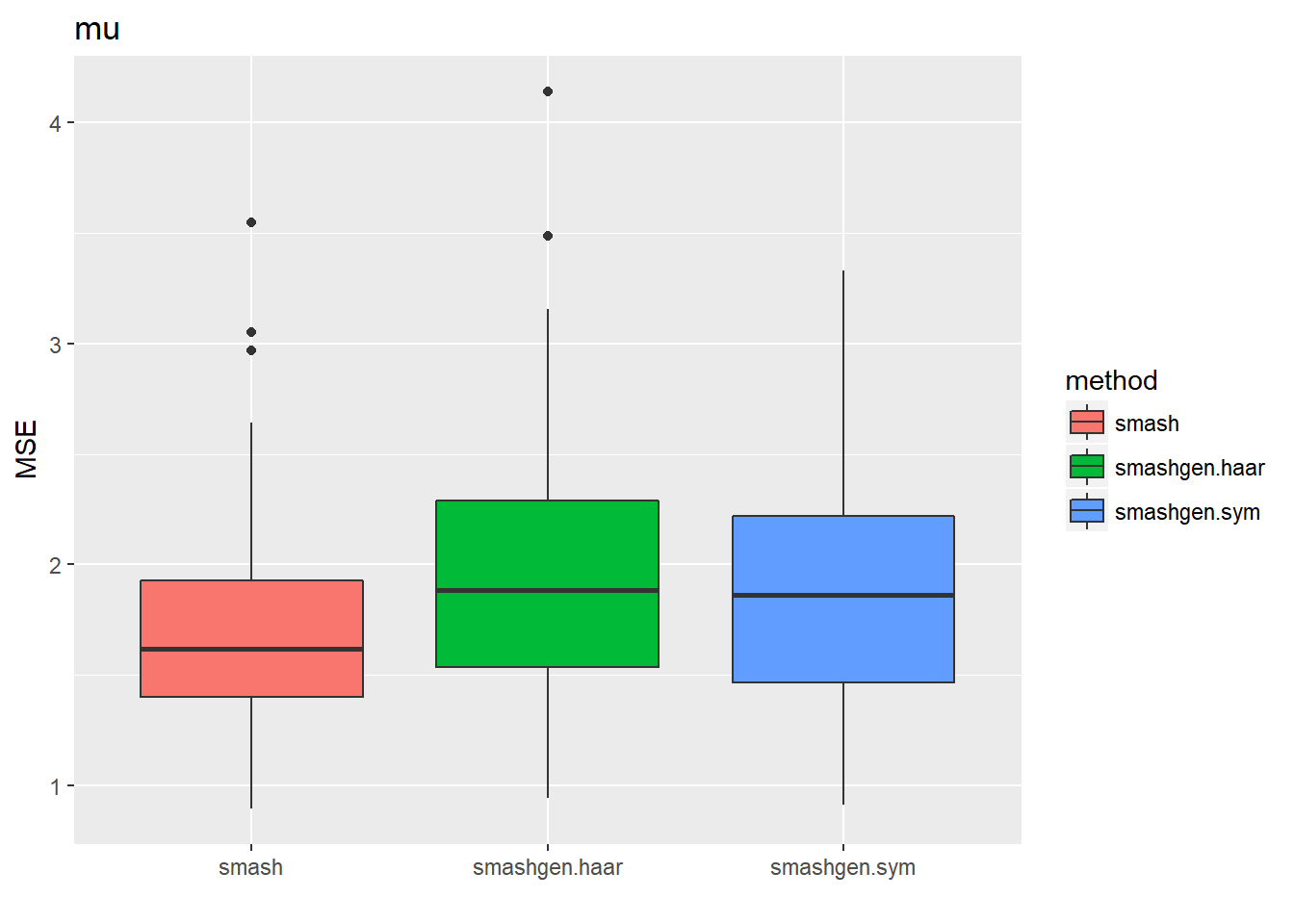

Range: (50,100)

mu=DJ.EX(256,signal = 15)$heavi
mu=mu-min(mu)+50
result=simu_study_scale(mu,nsimu=100)
ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

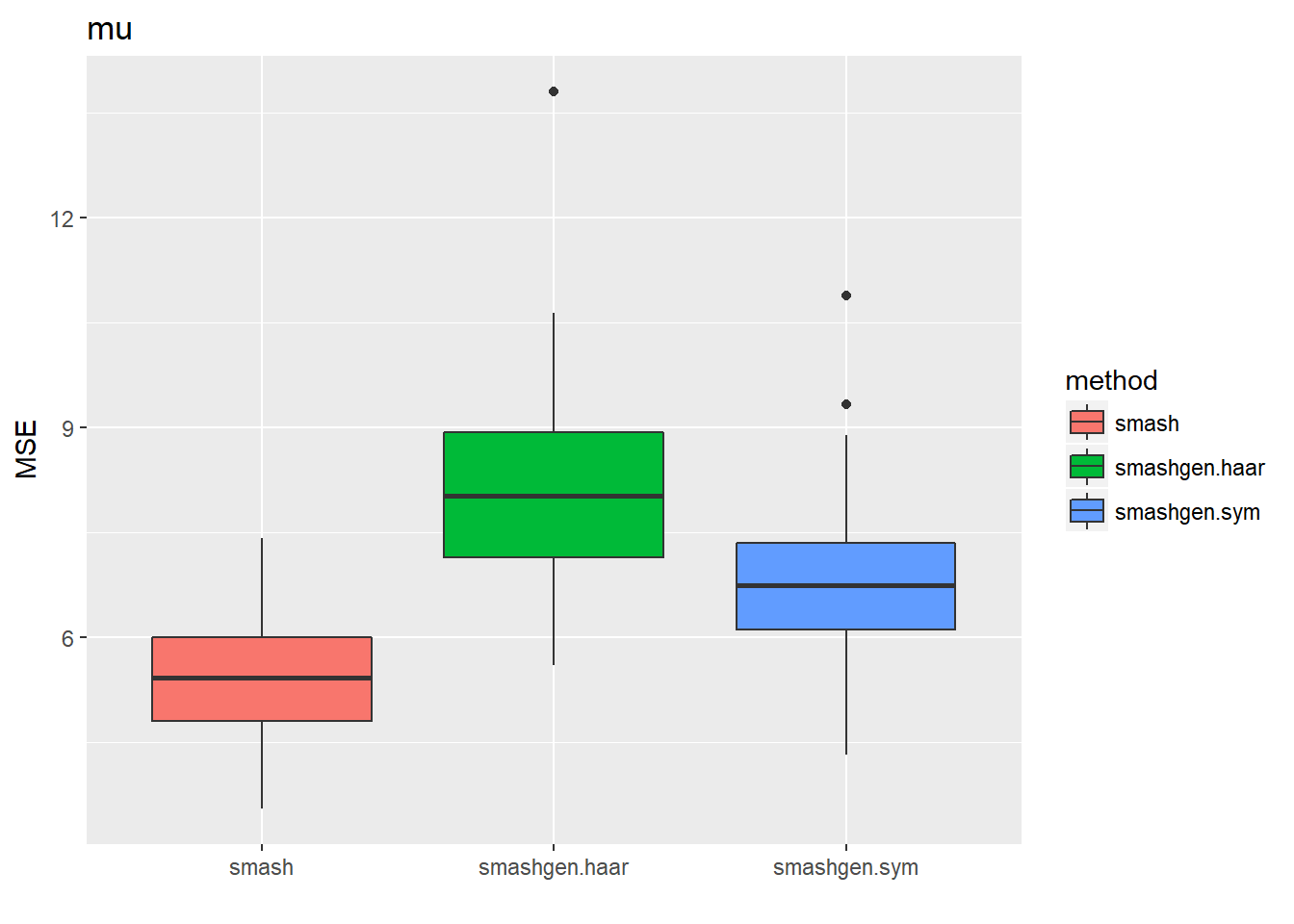

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

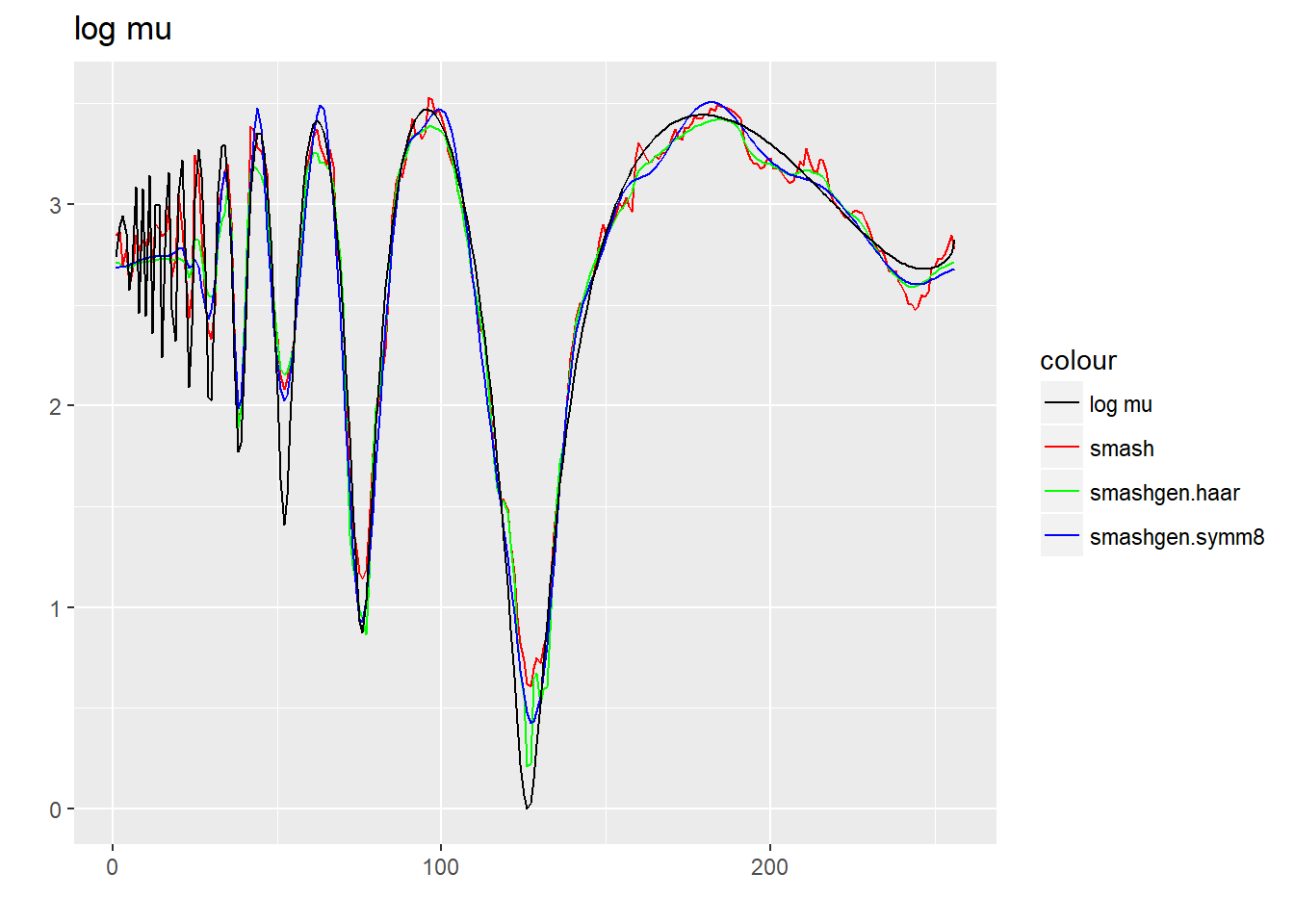

Doppler

Rnage: (1,32)

mu=DJ.EX(256,signal = 9)$doppler
mu=mu-min(mu)+1
result=simu_study_scale(mu,nsimu=100)
ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

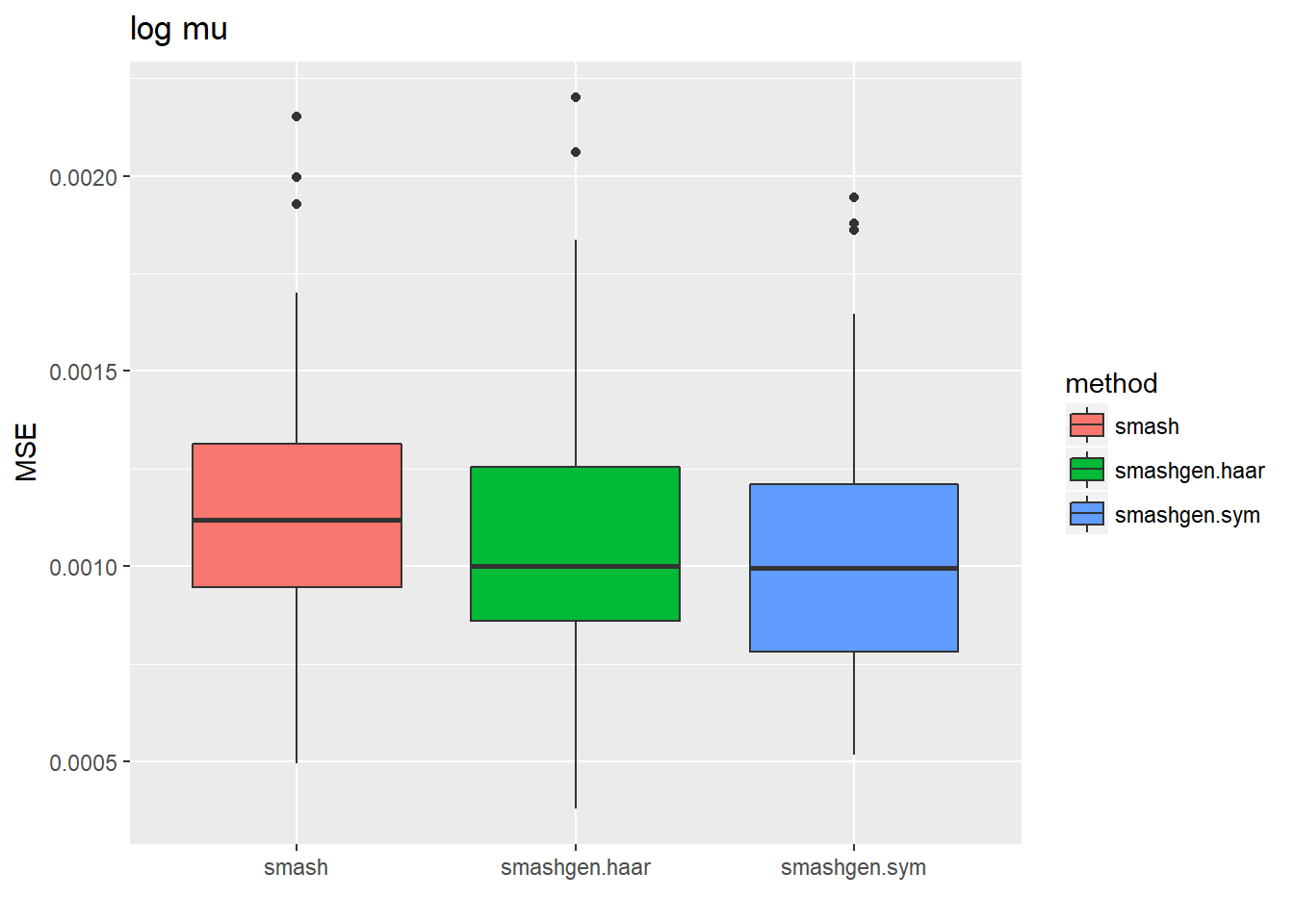

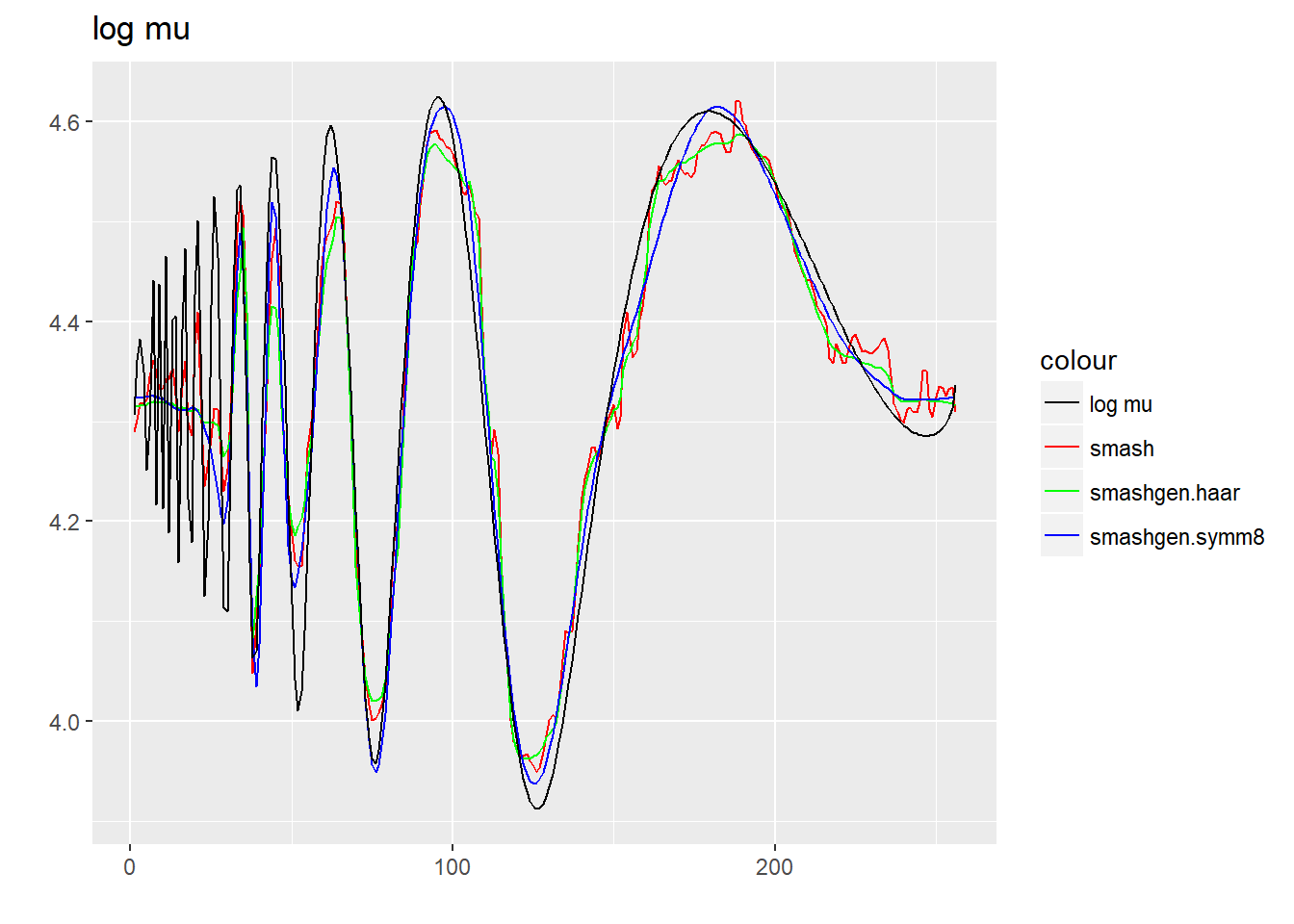

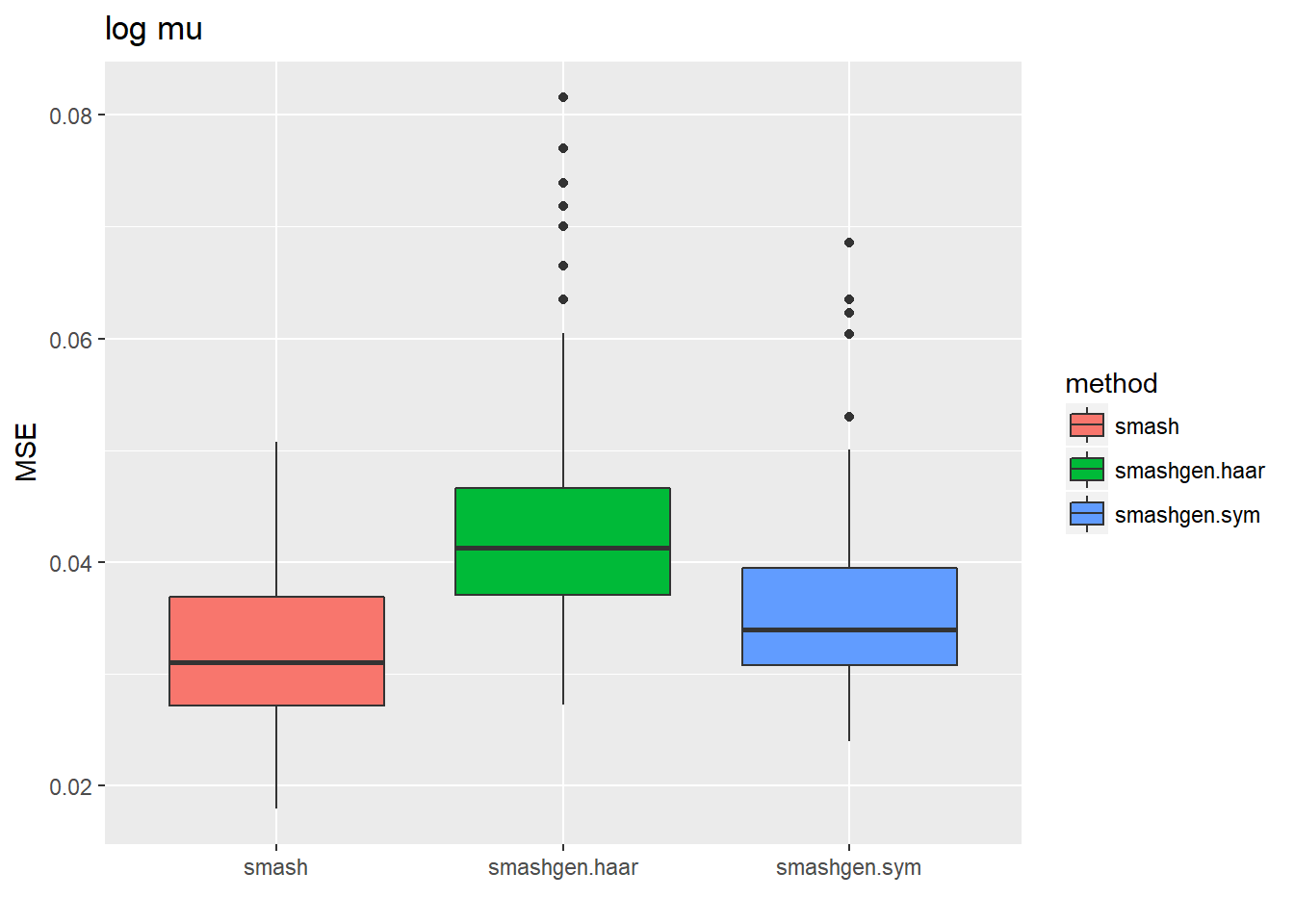

Rnage: (50,100)

mu=DJ.EX(256,signal = 15)$doppler
mu=mu-min(mu)+50
result=simu_study_scale(mu,nsimu=100)

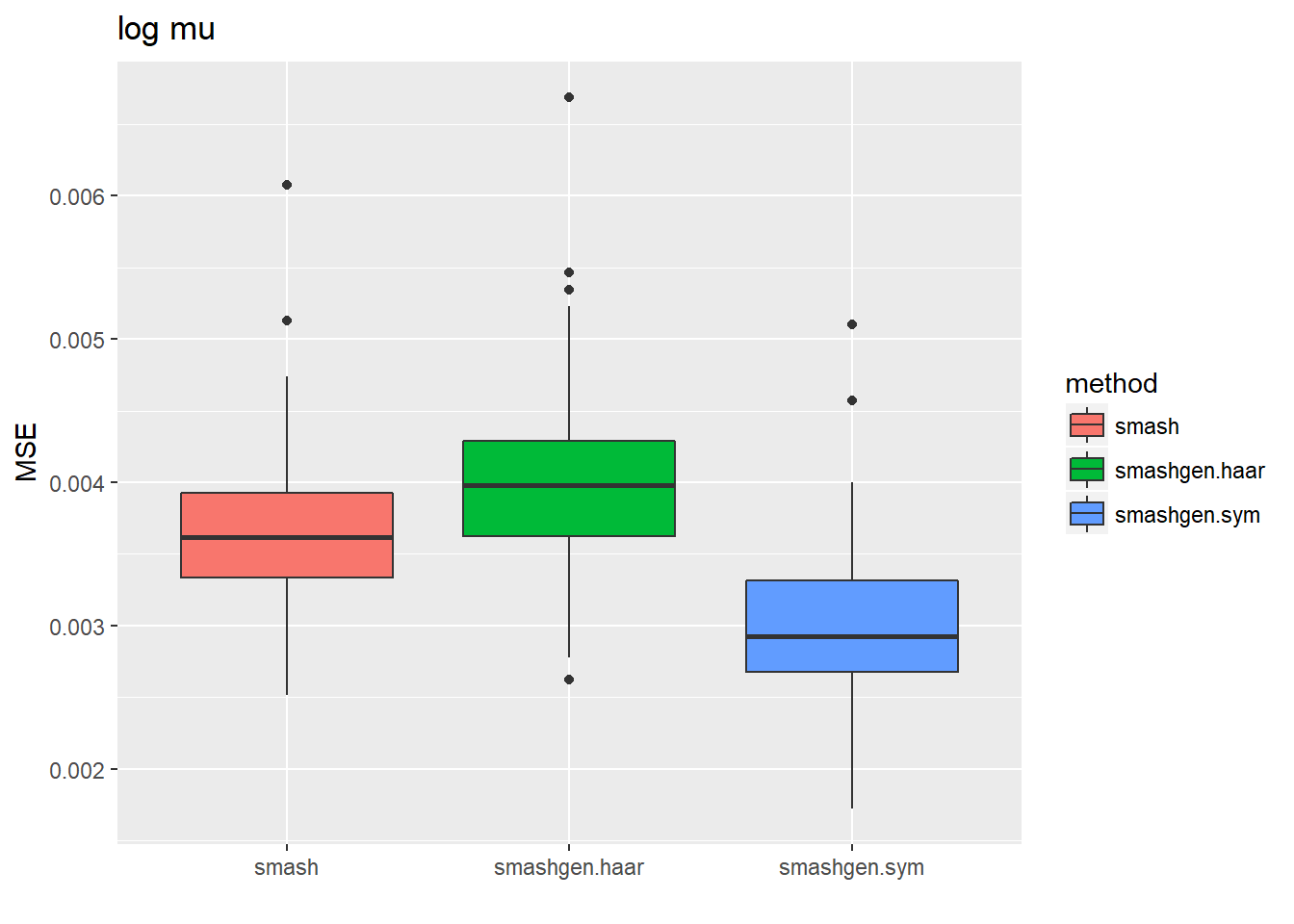

ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

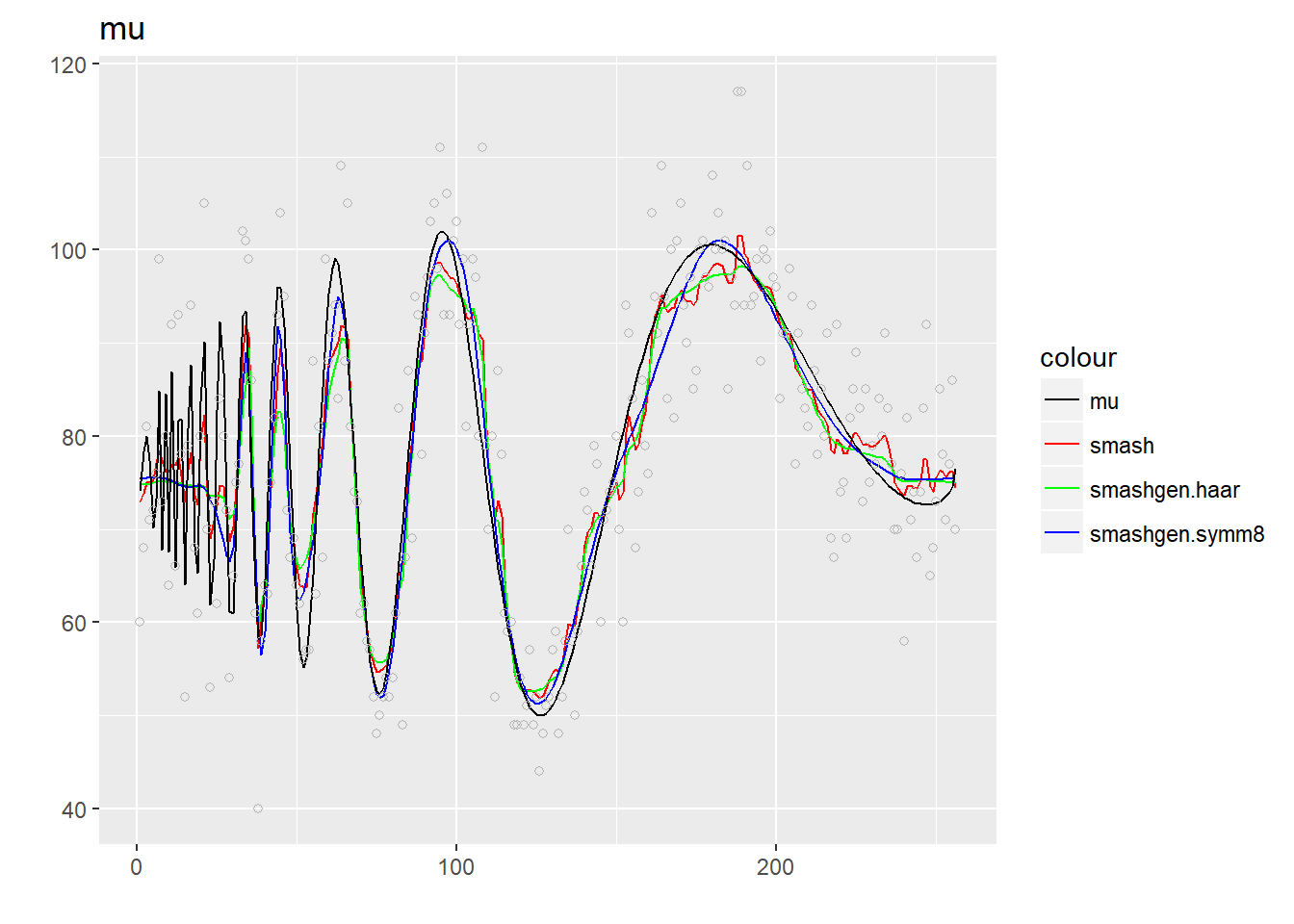

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

Parabola

Range: (1,31)

r=function(x,c){return((x-c)^2*(x>c)*(x<=1))}
f=function(x){return(0.8 − 30*r(x,0.1) + 60*r(x, 0.2) − 30*r(x, 0.3) +
500*r(x, 0.35) − 1000*r(x, 0.37) + 1000*r(x, 0.41) − 500*r(x, 0.43) +
7.5*r(x, 0.5) − 15*r(x, 0.7) + 7.5*r(x, 0.9))}
mu=f(1:256/256)
mu=mu*50-9

result=simu_study_scale(mu,nsimu=100)

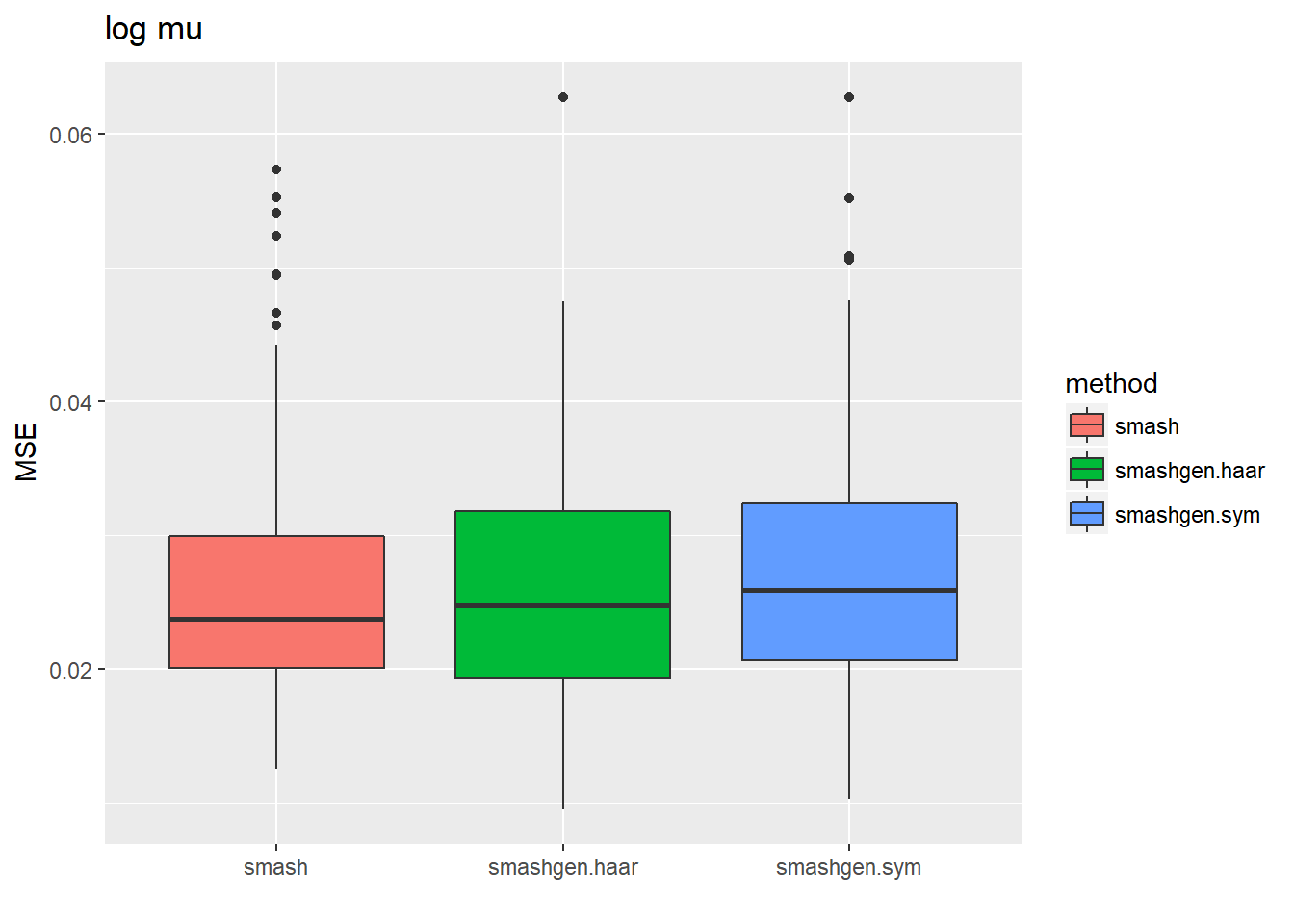

ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

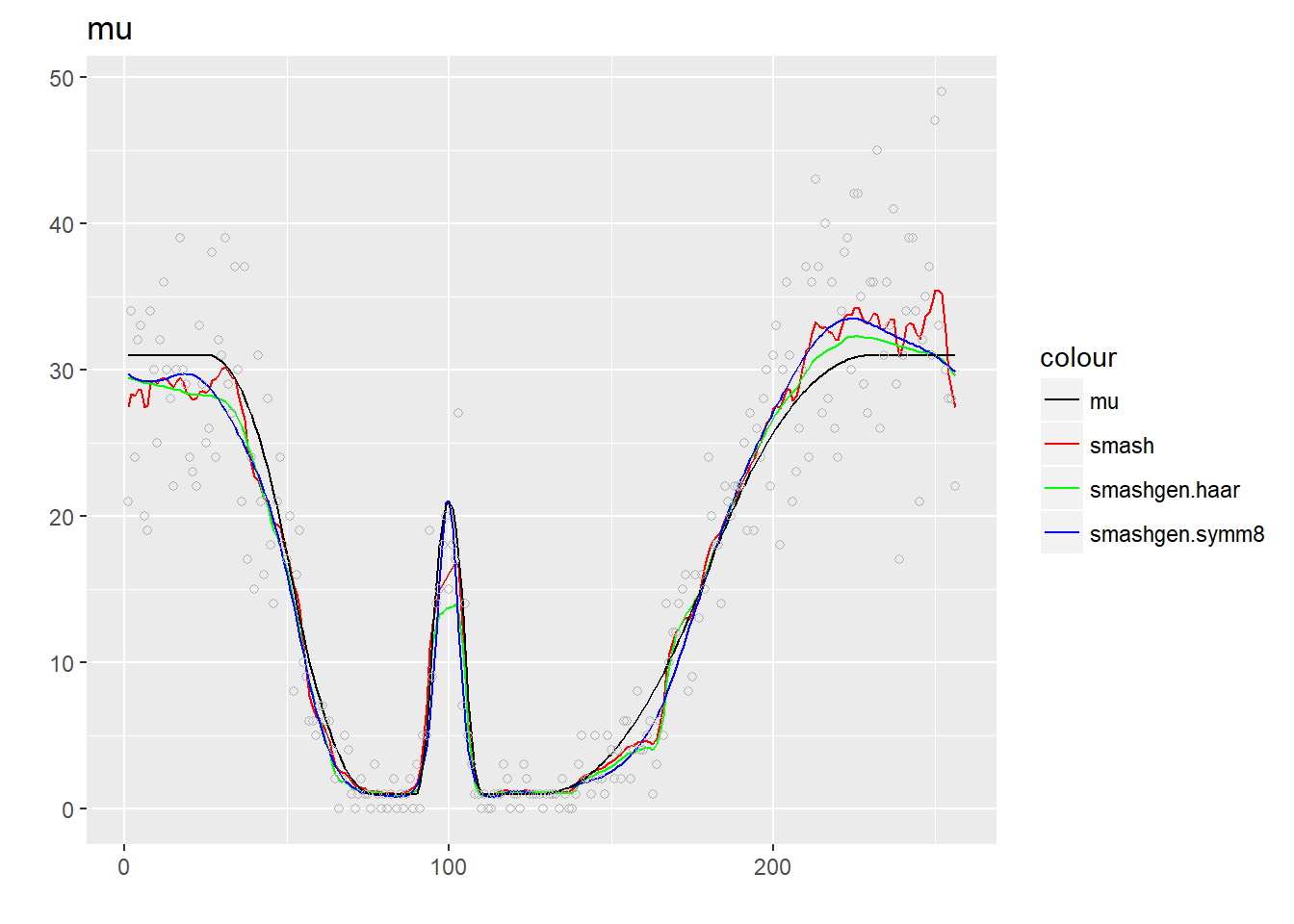

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

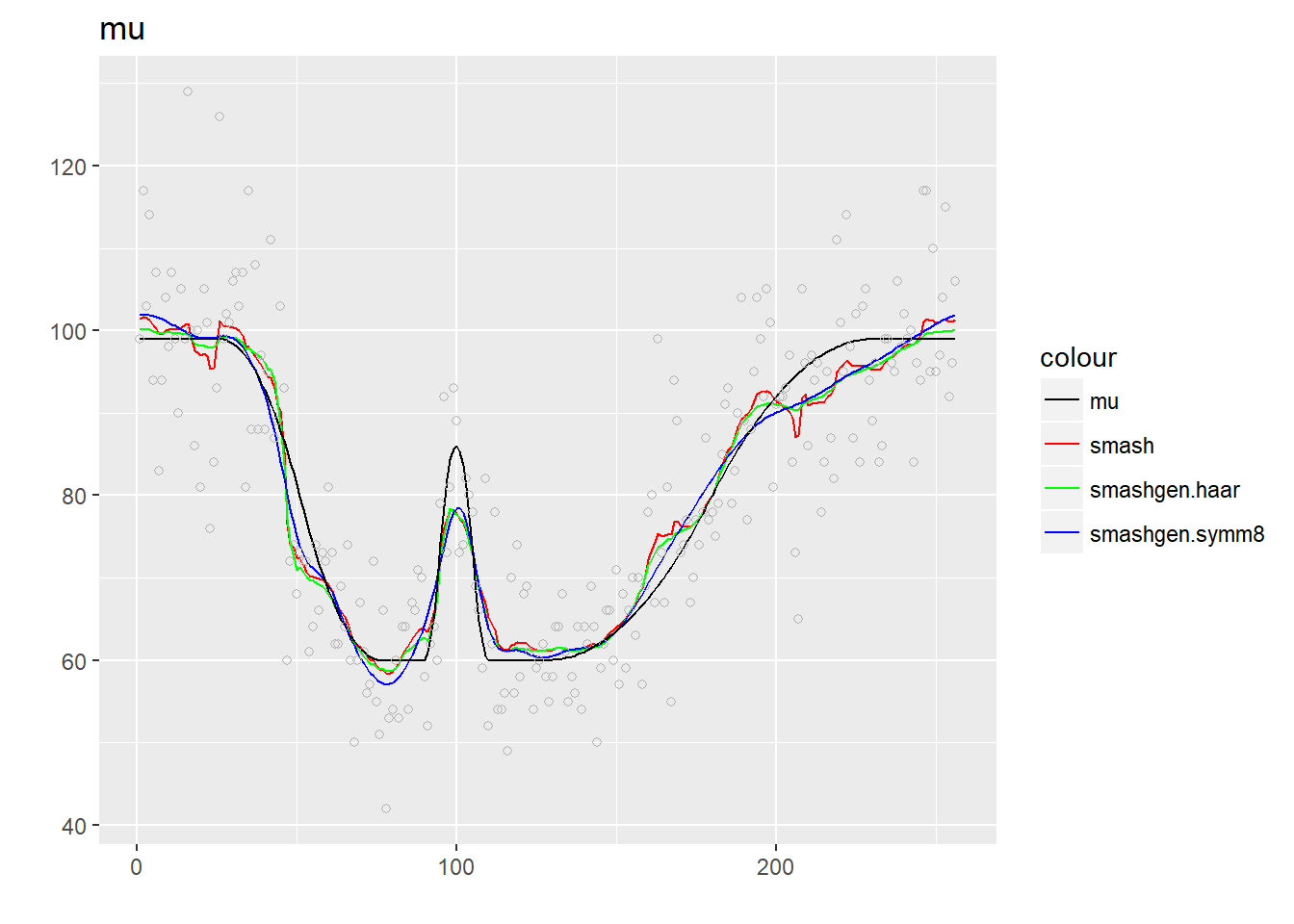

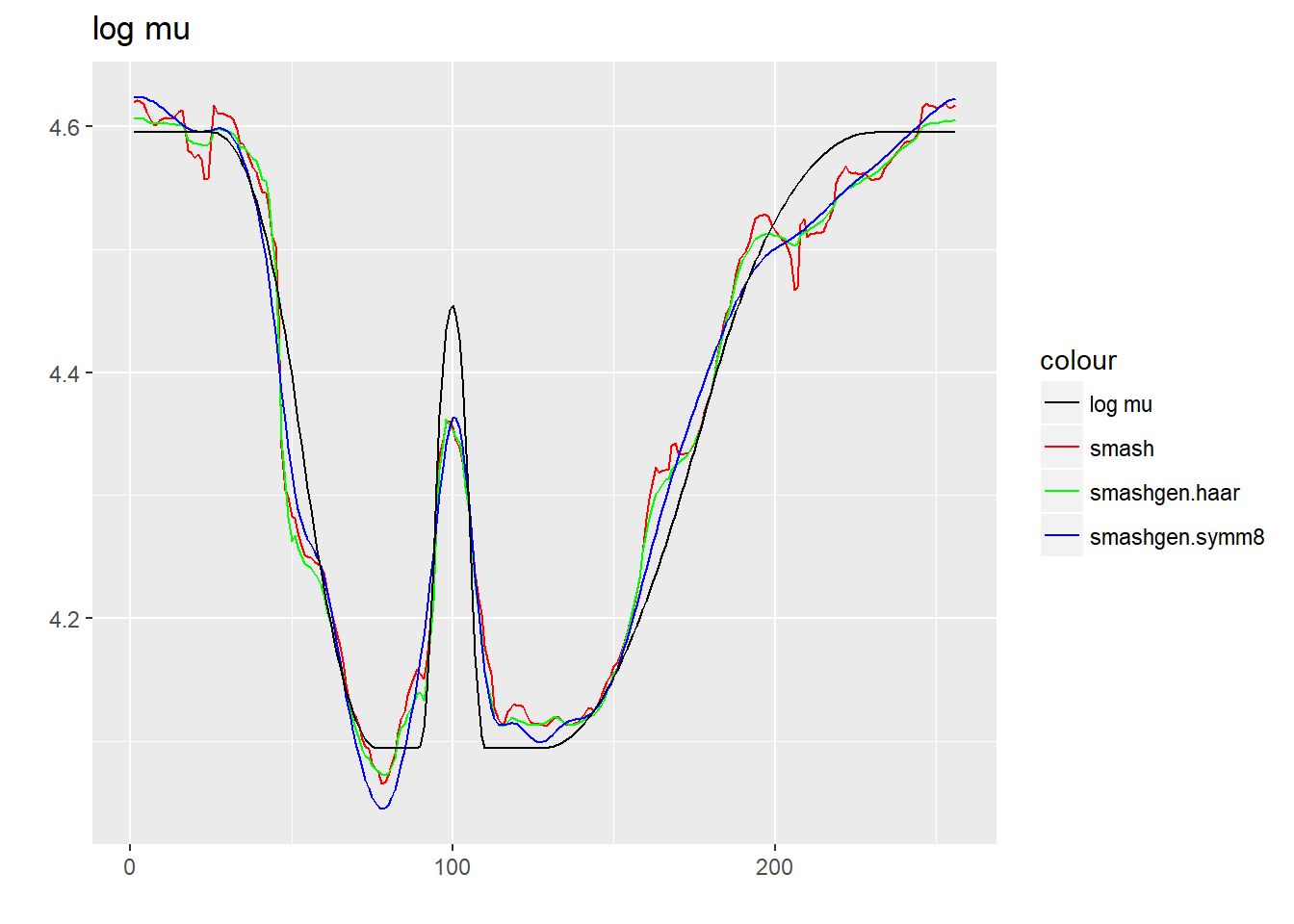

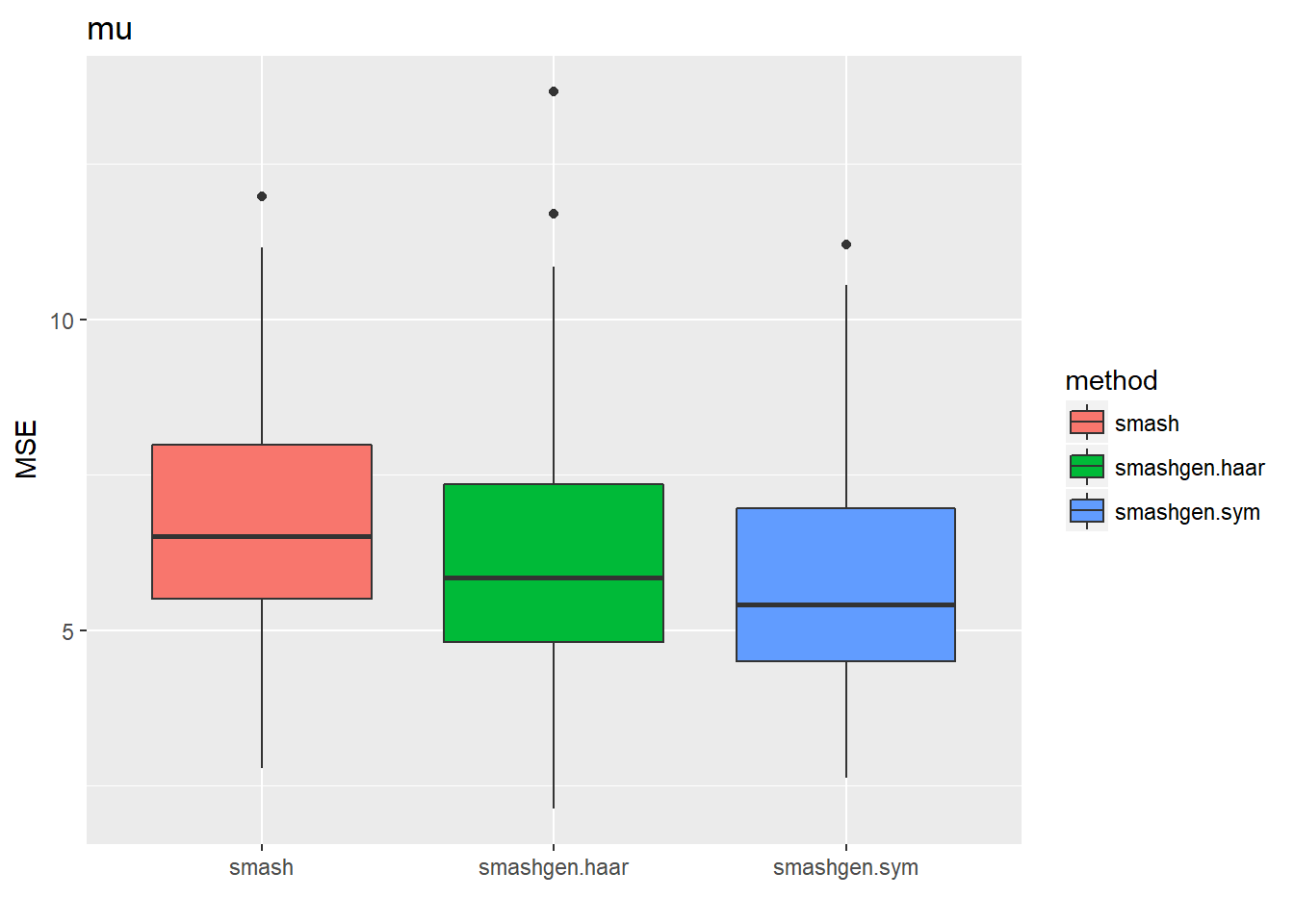

Range: (50,100)

mu=f(1:256/256)
mu=mu*65+47

result=simu_study_scale(mu,nsimu=100)
ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

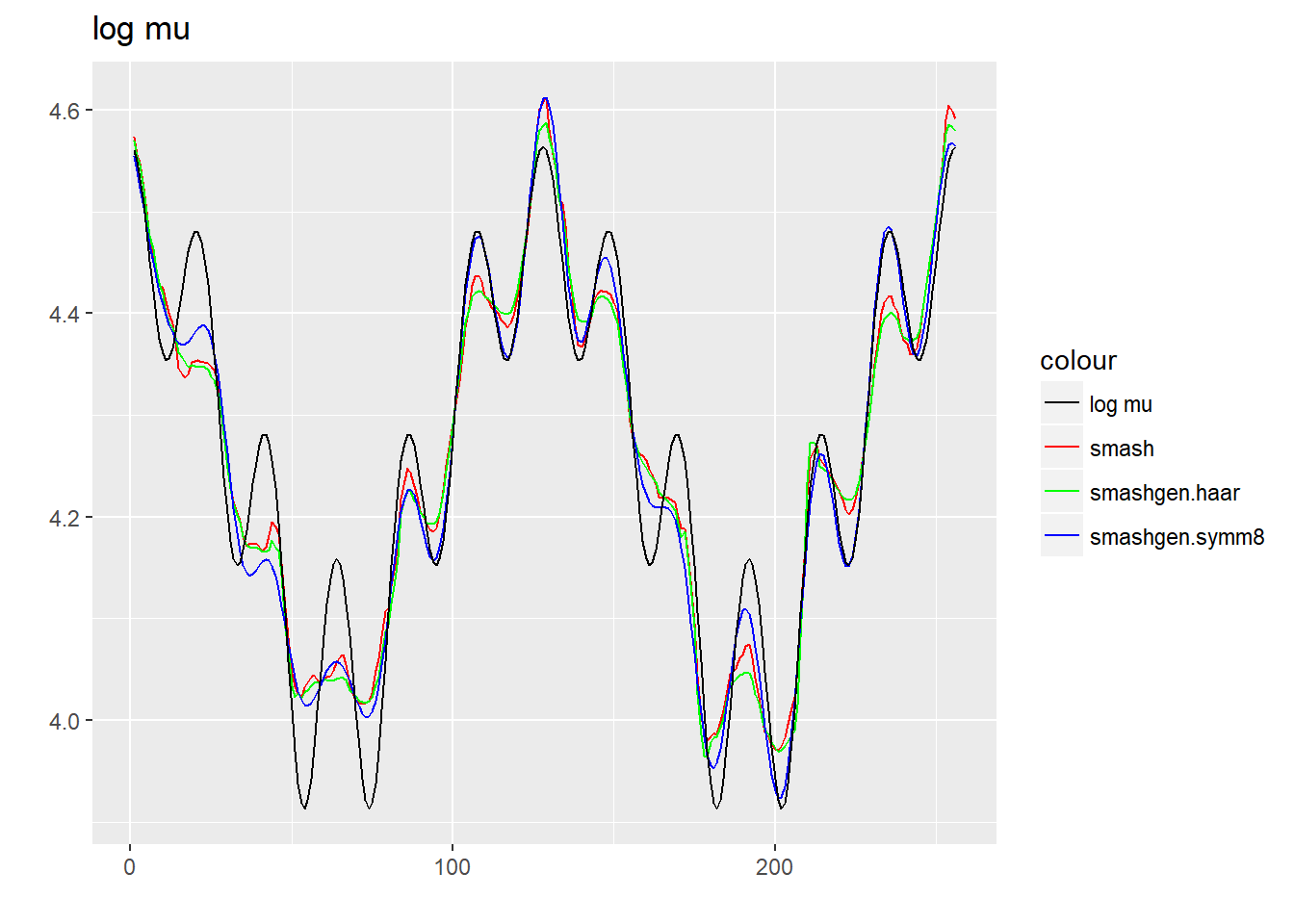

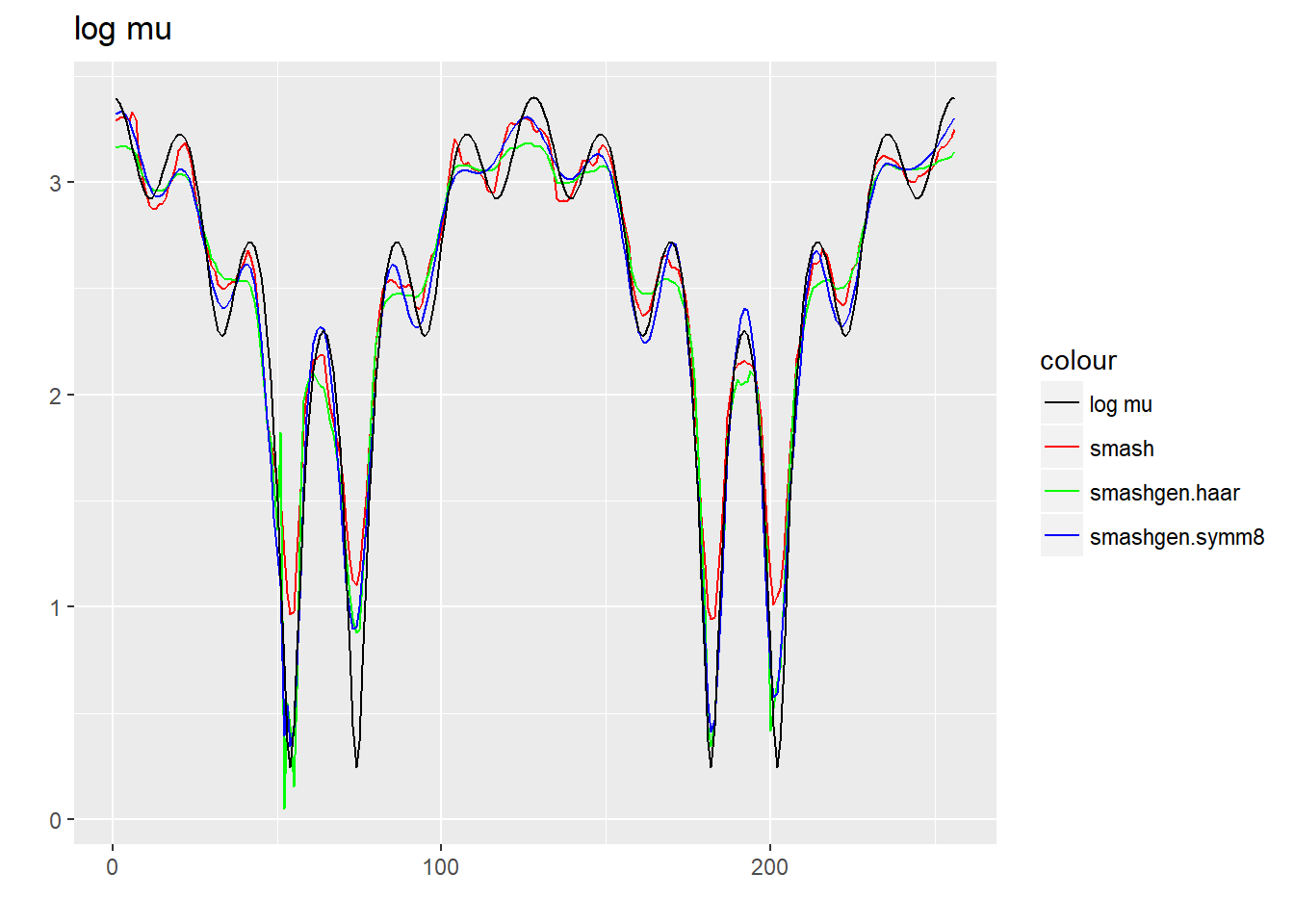

Wave

Range: (1,30)

f=function(x){return(0.5 + 0.2*cos(4*pi*x) + 0.1*cos(24*pi*x))}
mu=f(1:256/256)
mu=mu*50-10

result=simu_study_scale(mu,nsimu=100)

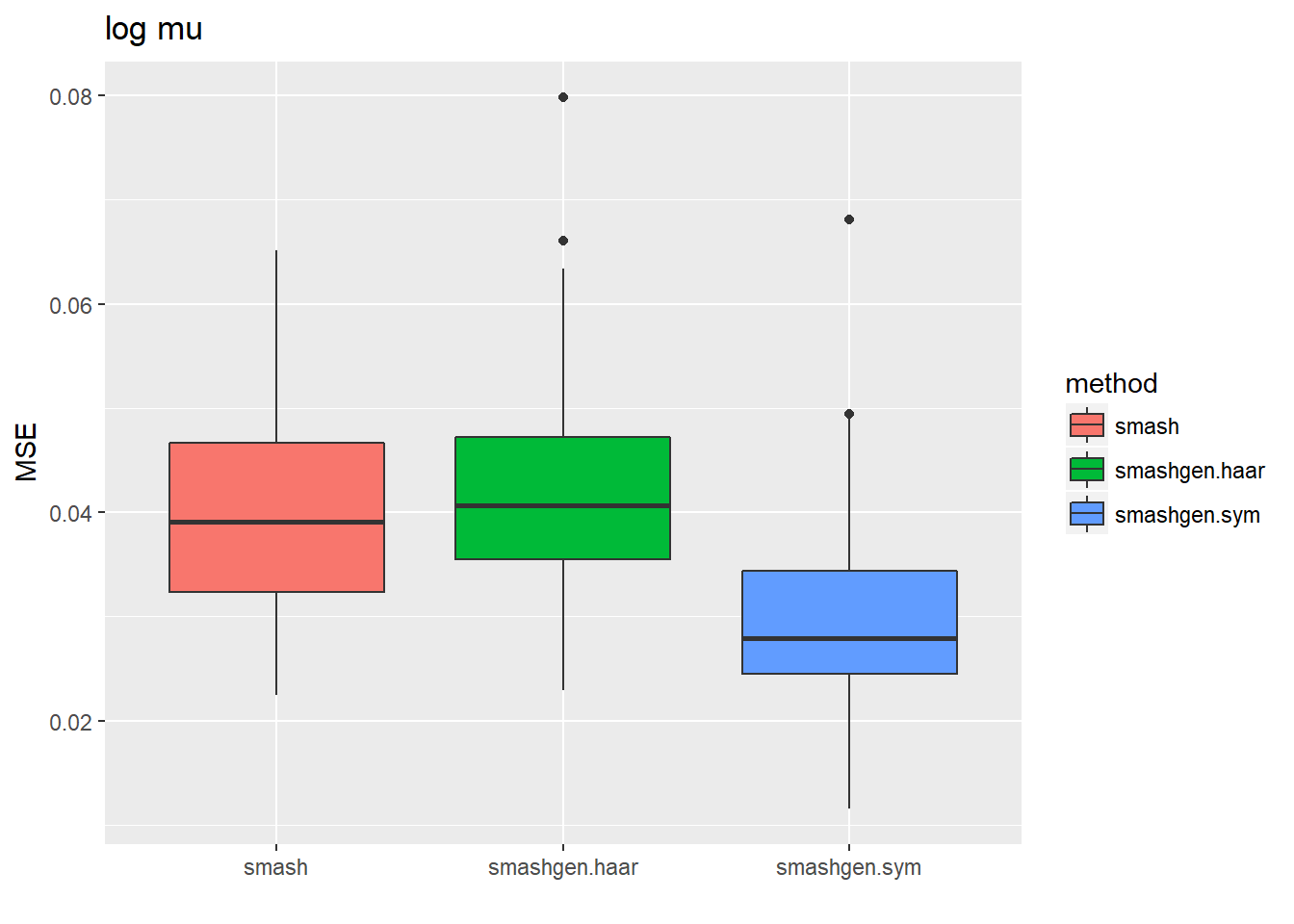

ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

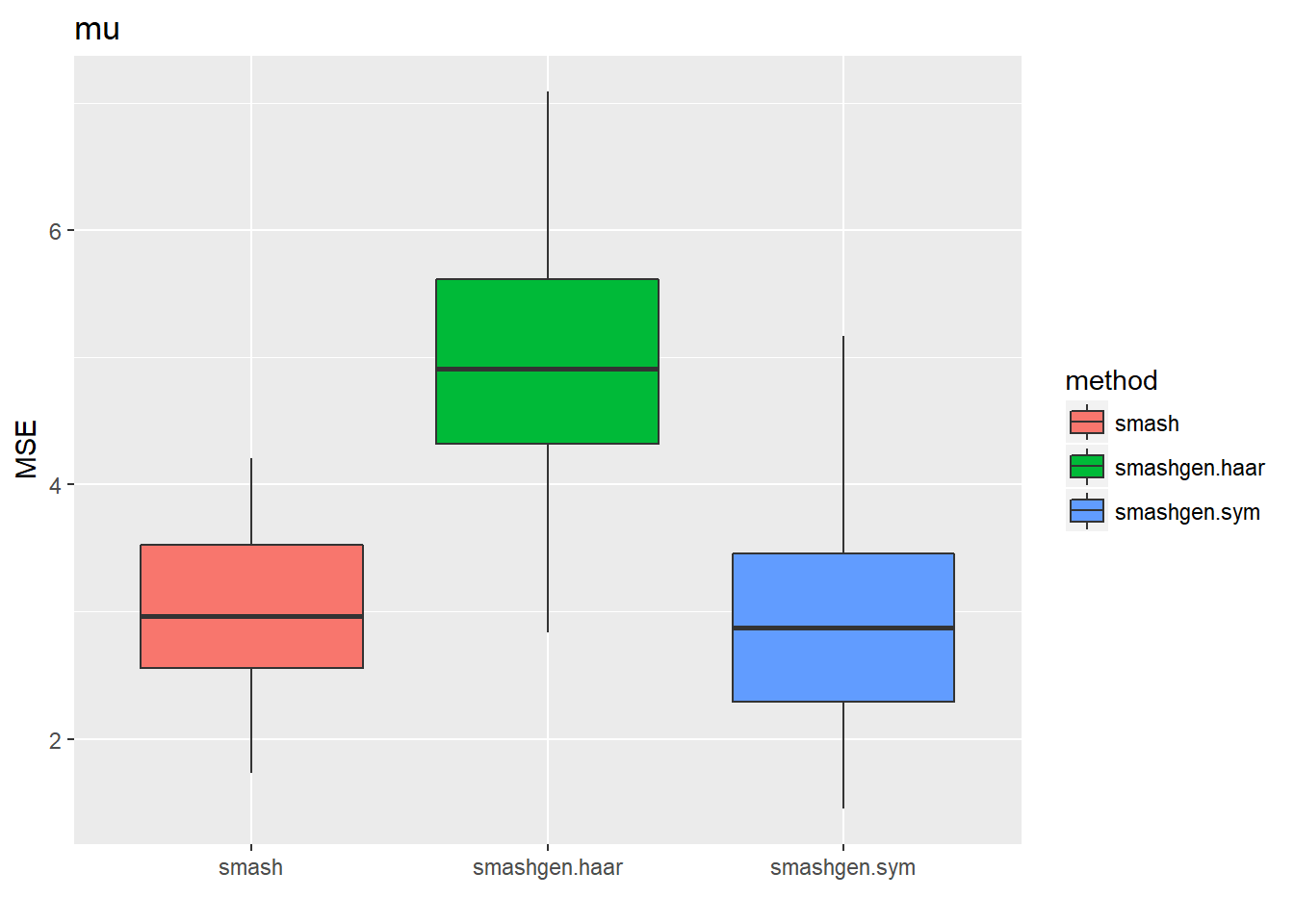

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

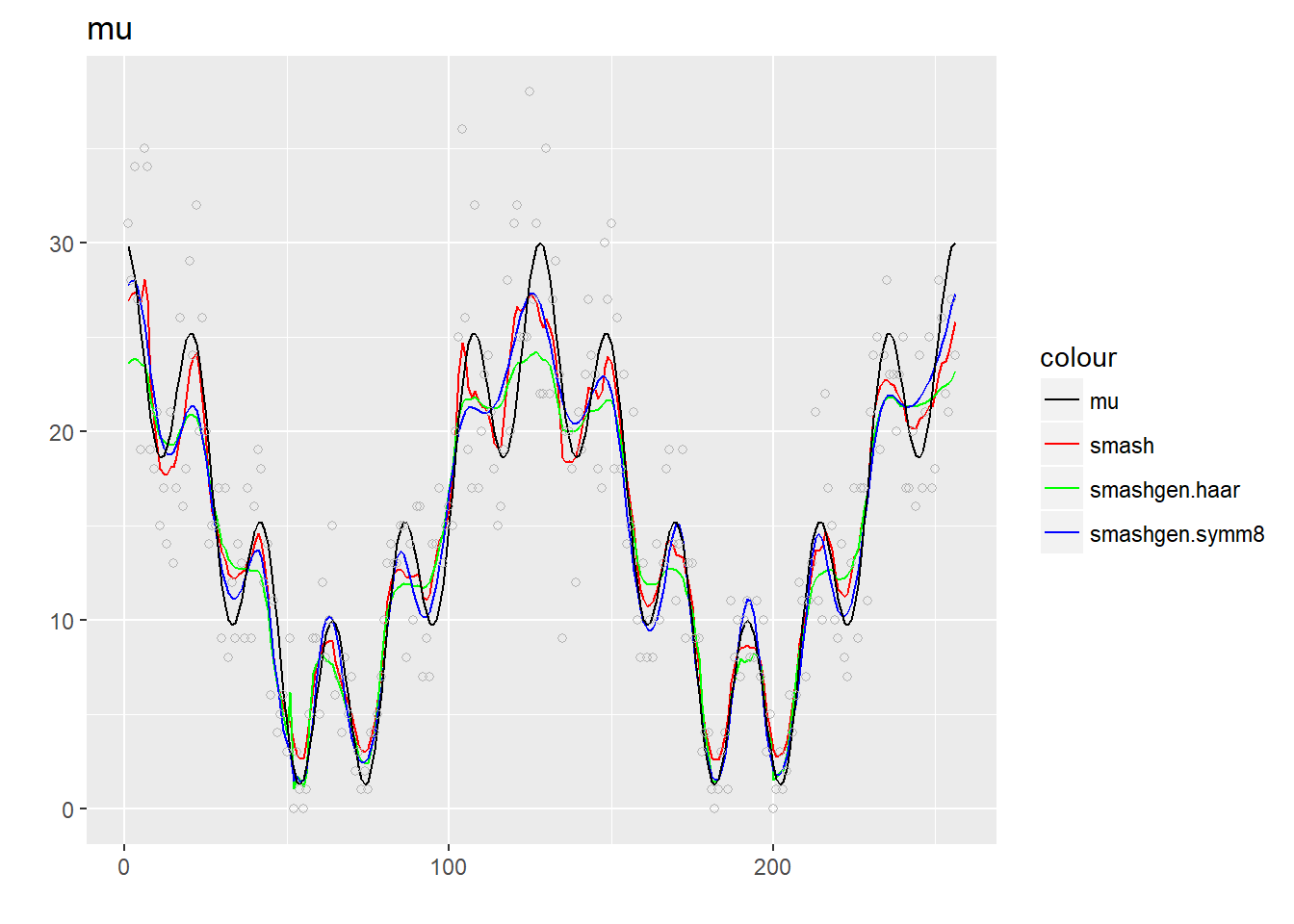

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

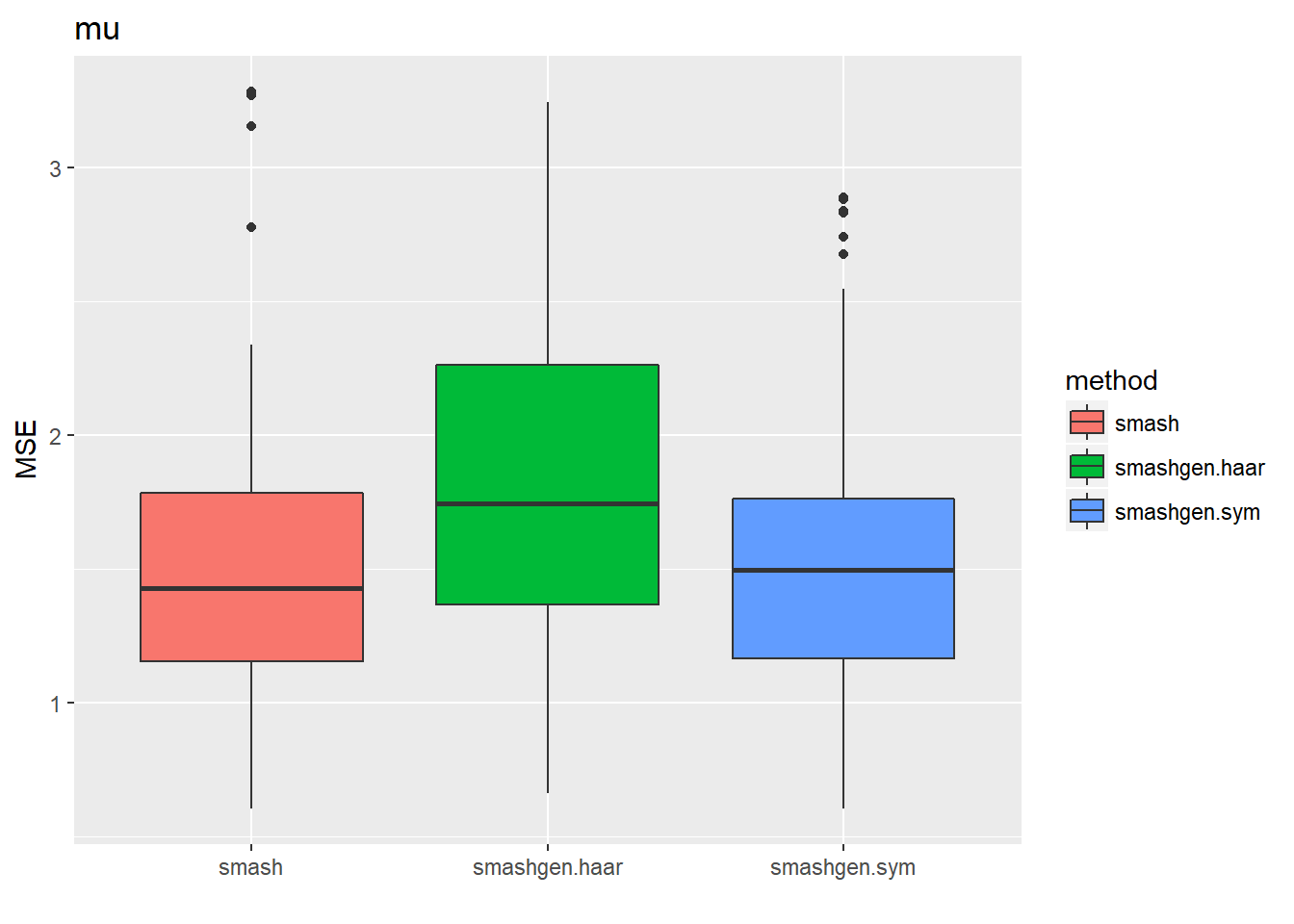

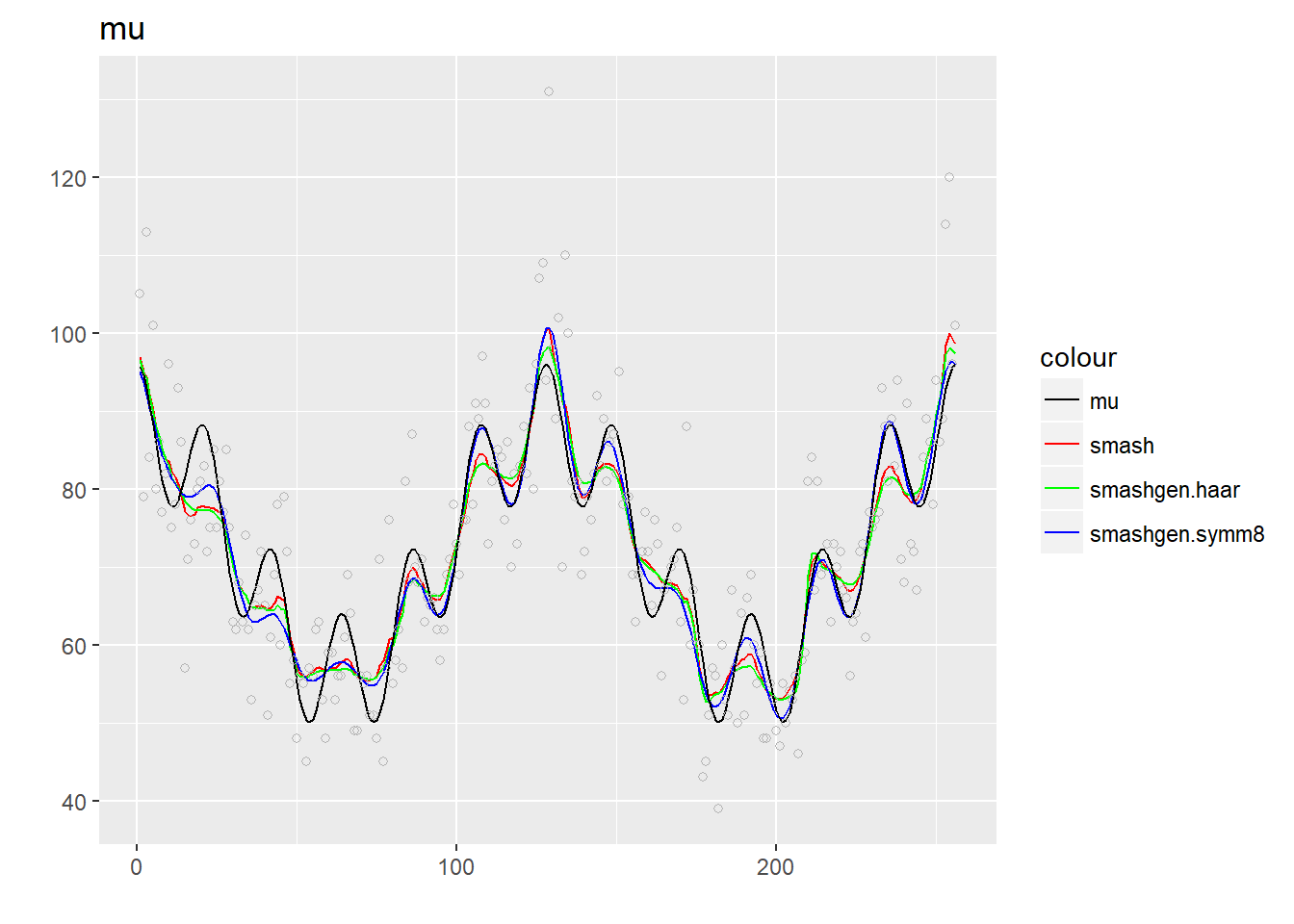

Range: (50,96)

mu=f(1:256/256)
mu=mu*80+32

result=simu_study_scale(mu,nsimu=100)

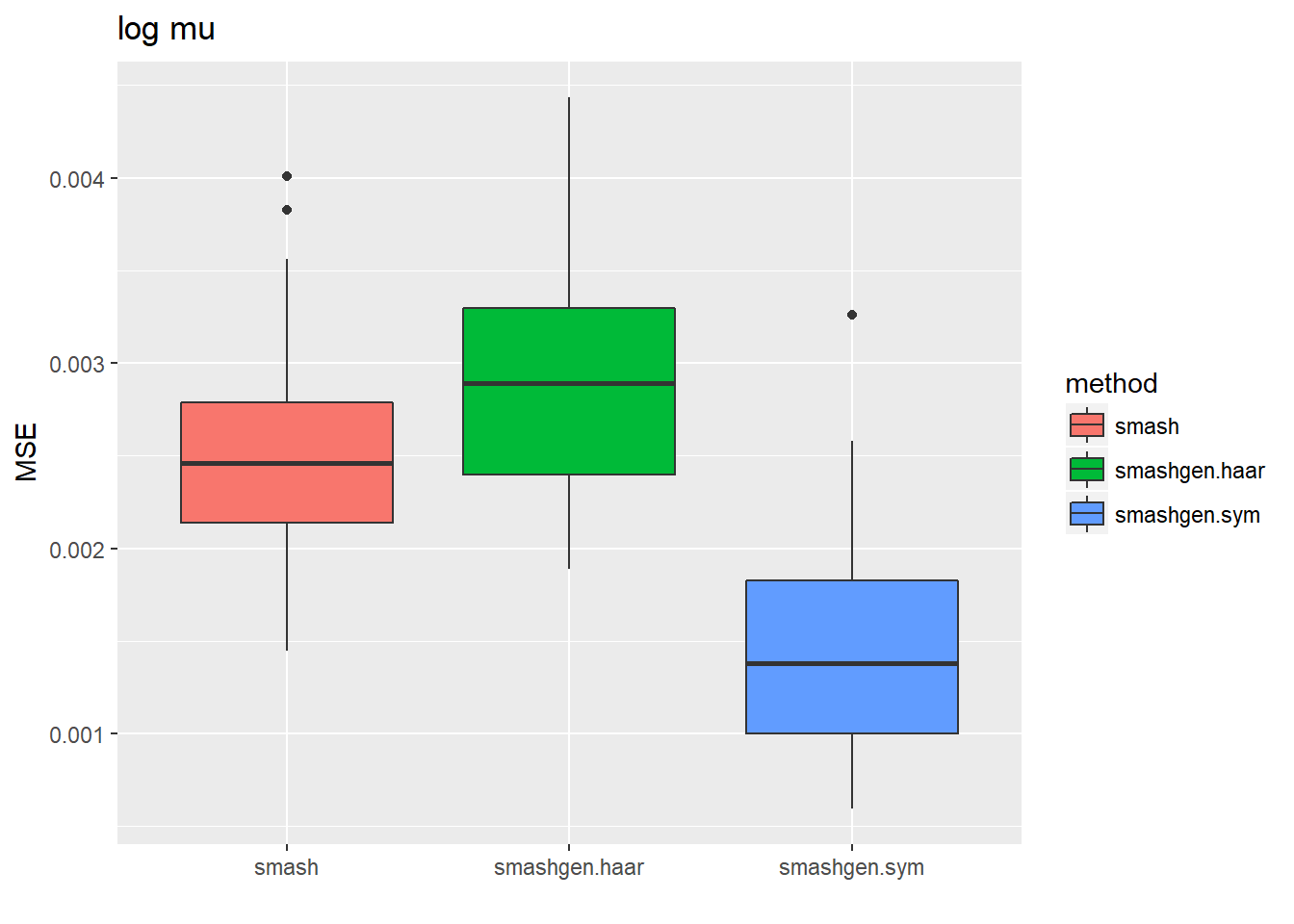

ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

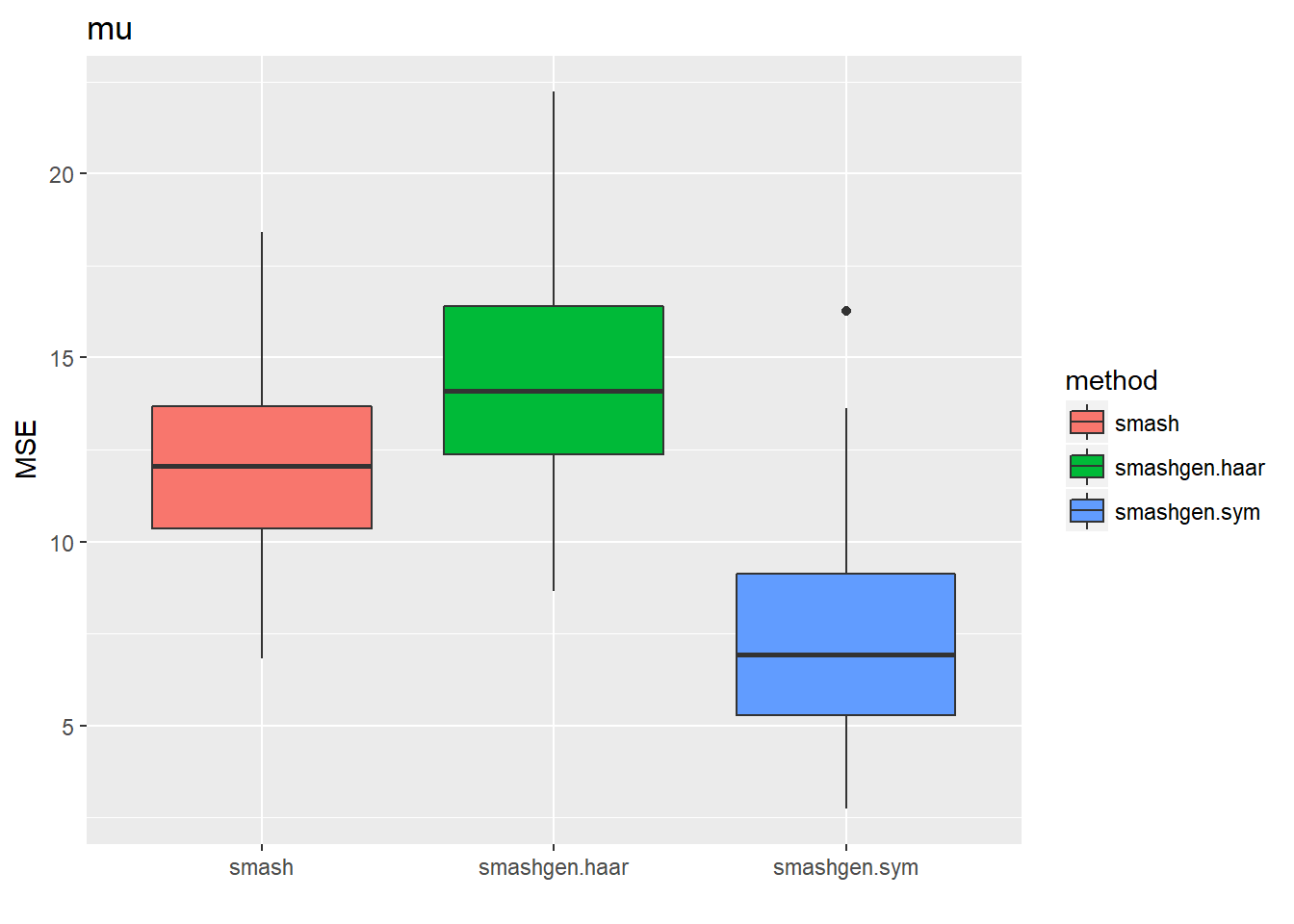

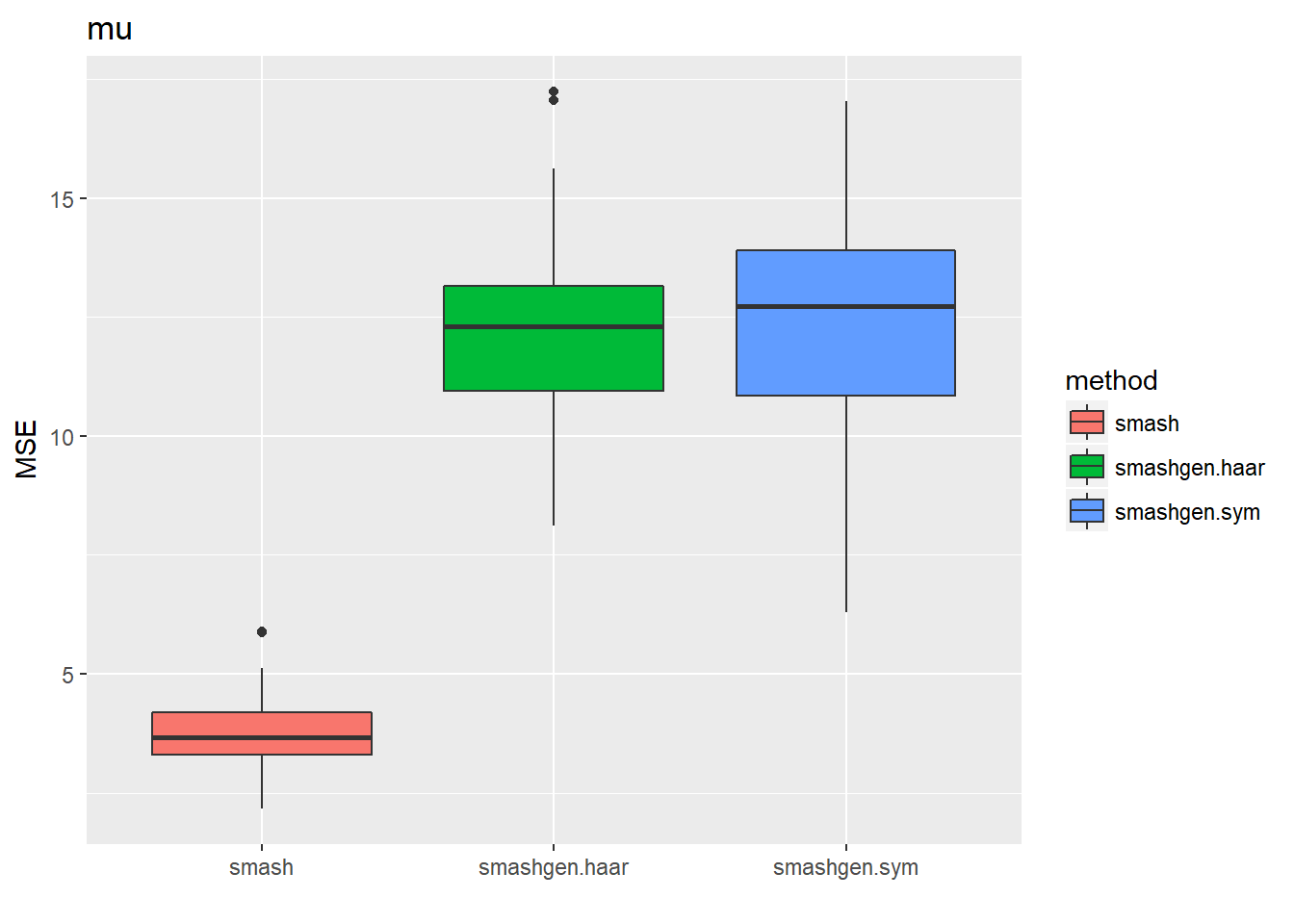

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

Bumps

Range: (1,33)

m=seq(0,1,length.out = 256)
h = c(4, 5, 3, 4, 5, 4.2, 2.1, 4.3, 3.1, 5.1, 4.2)
w = c(0.005, 0.005, 0.006, 0.01, 0.01, 0.03, 0.01, 0.01, 0.005,0.008,0.005)
t=c(.1,.13,.15,.23,.25,.4,.44,.65,.76,.78,.81)
f = c()
for(i in 1:length(m)){
  f[i]=sum(h*(1+((m[i]-t)/w)^4)^(-1))
}
mu=f*6+1

result=simu_study_scale(mu,nsimu=100)

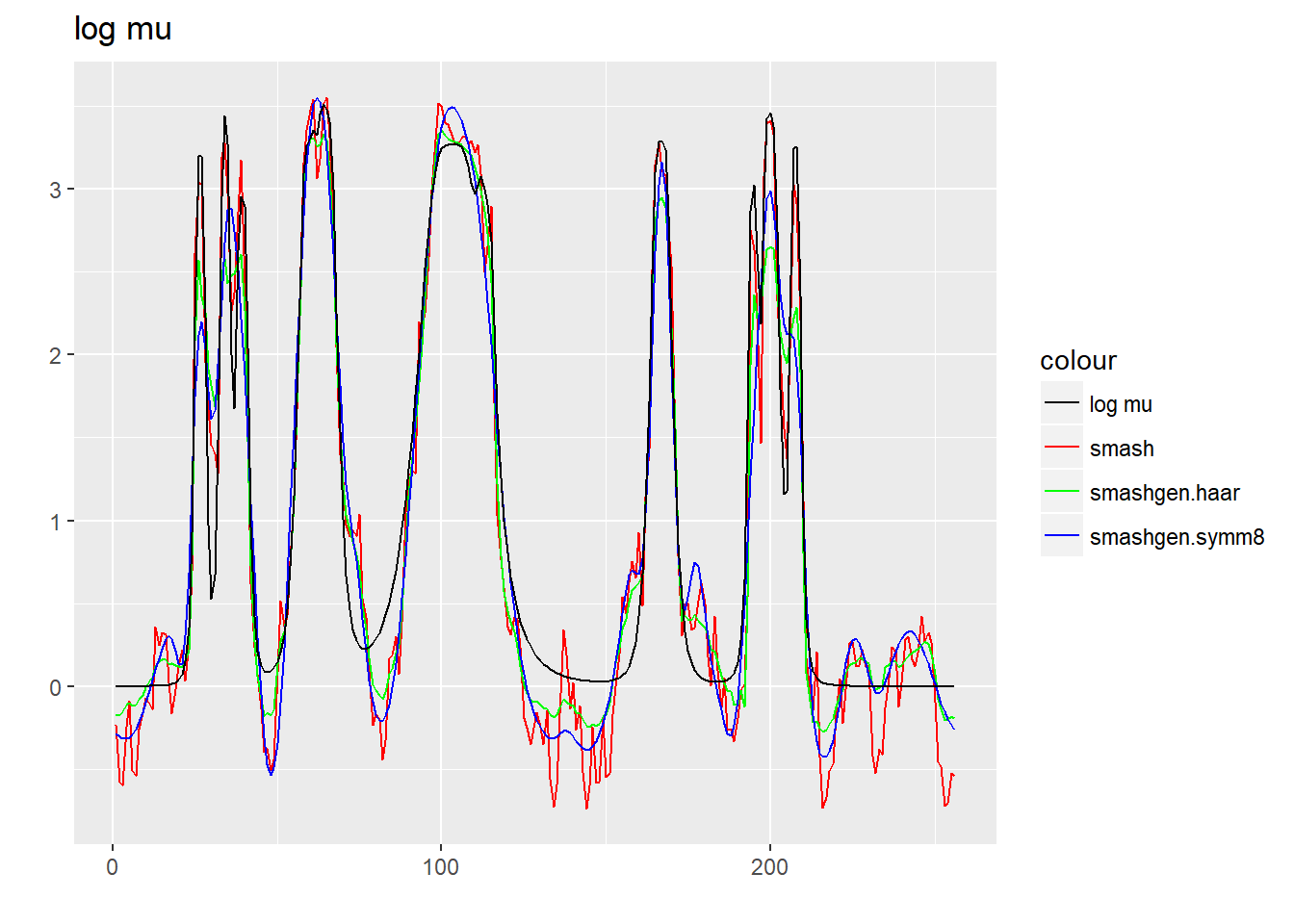

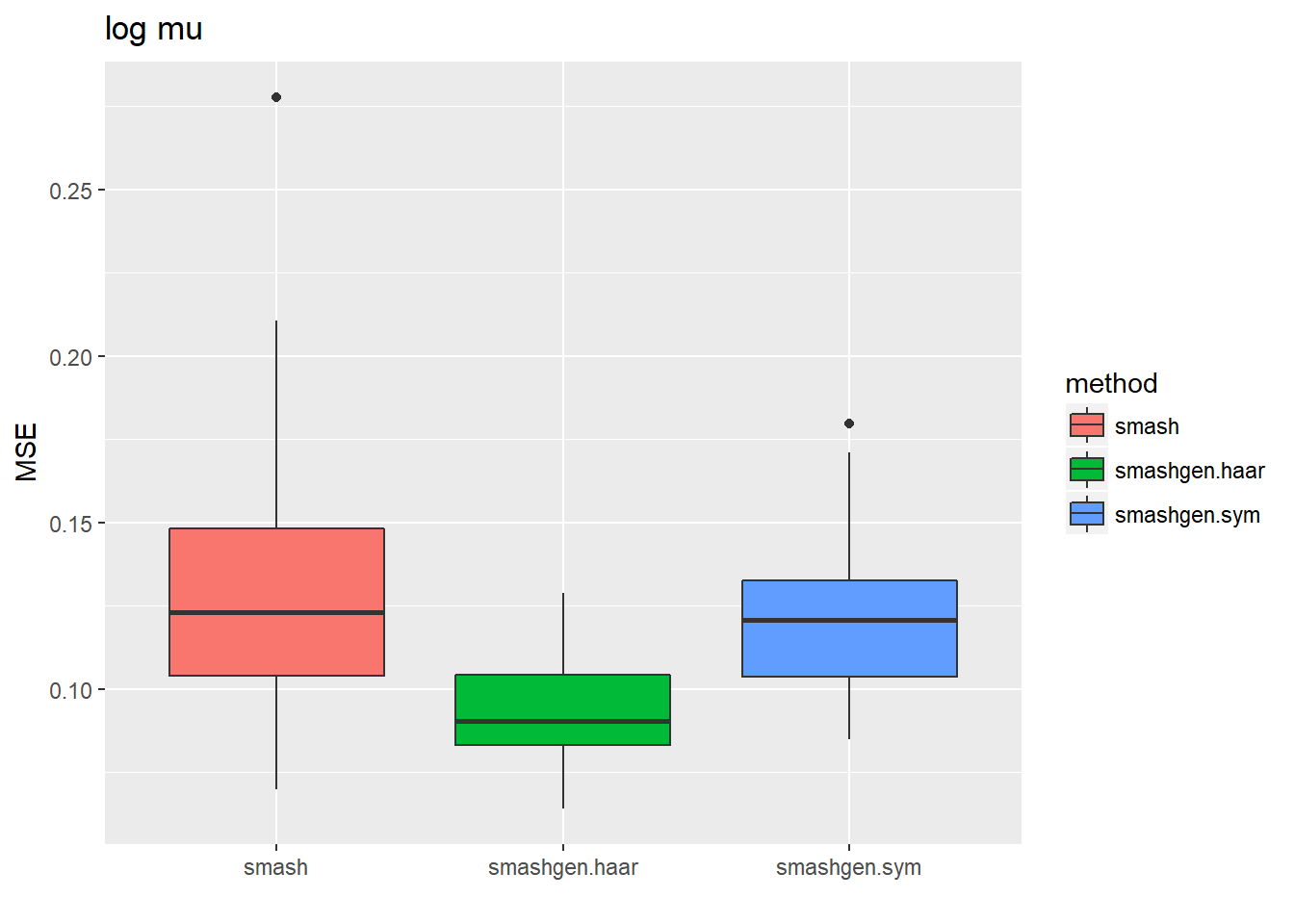

ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

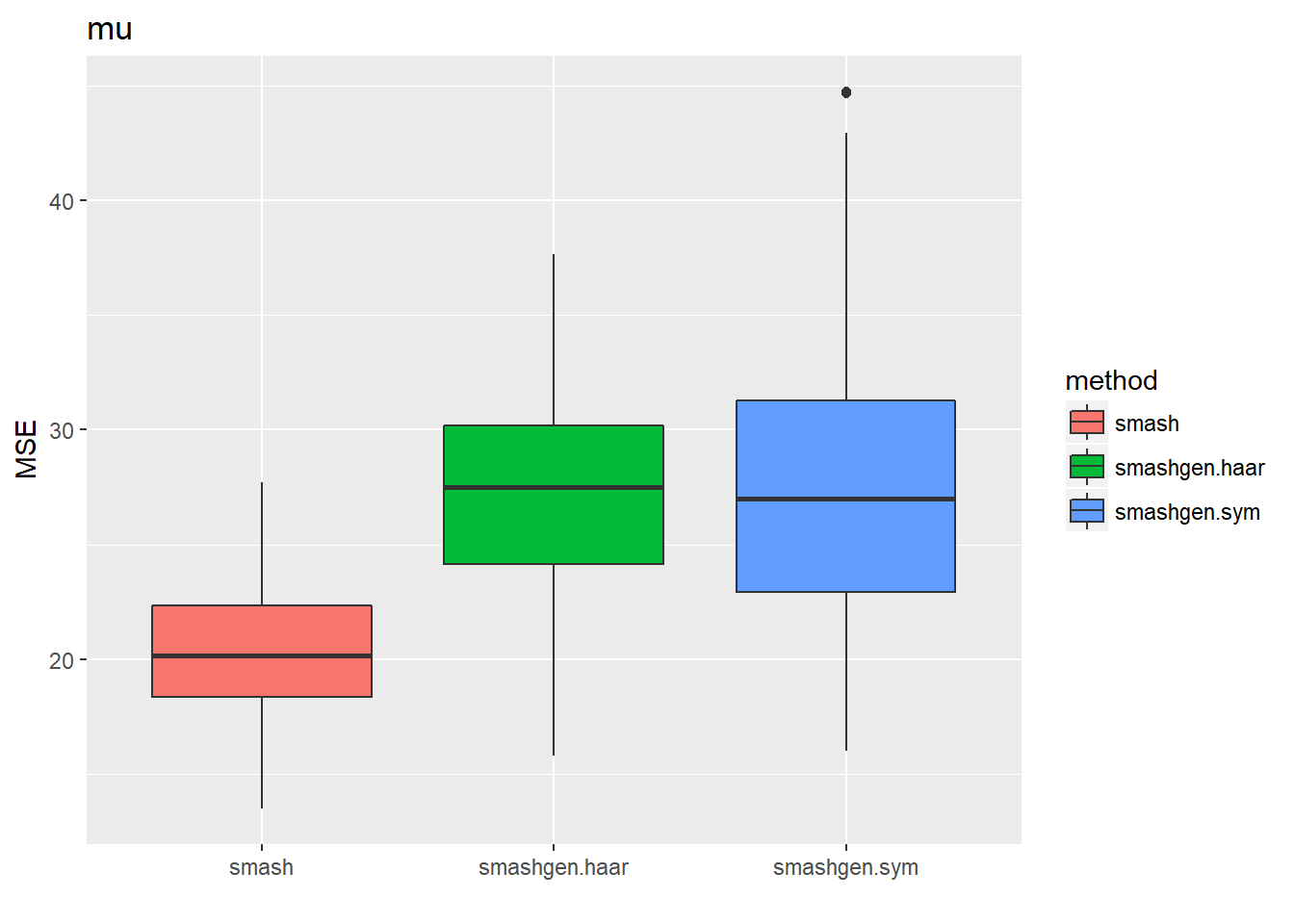

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

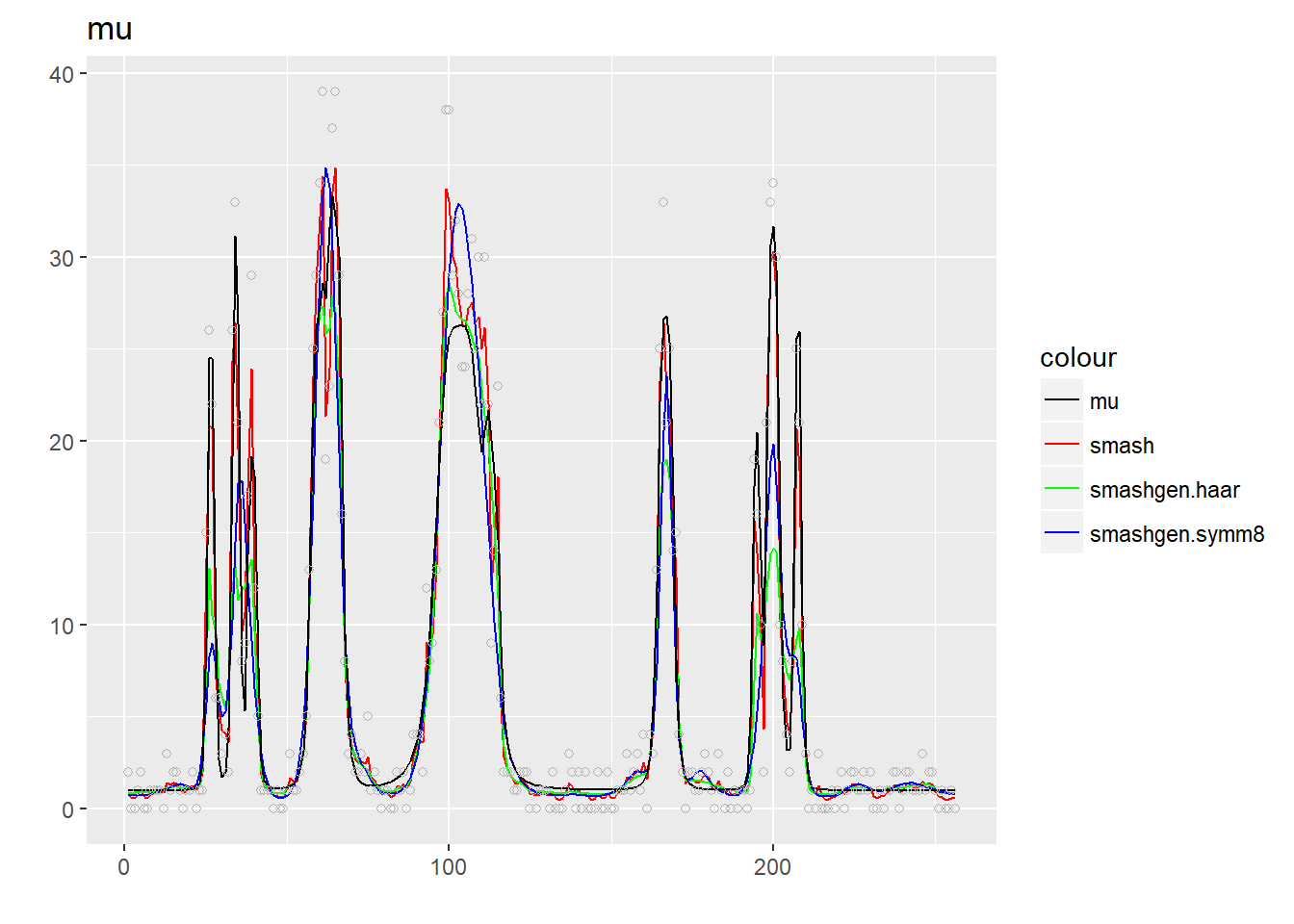

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))

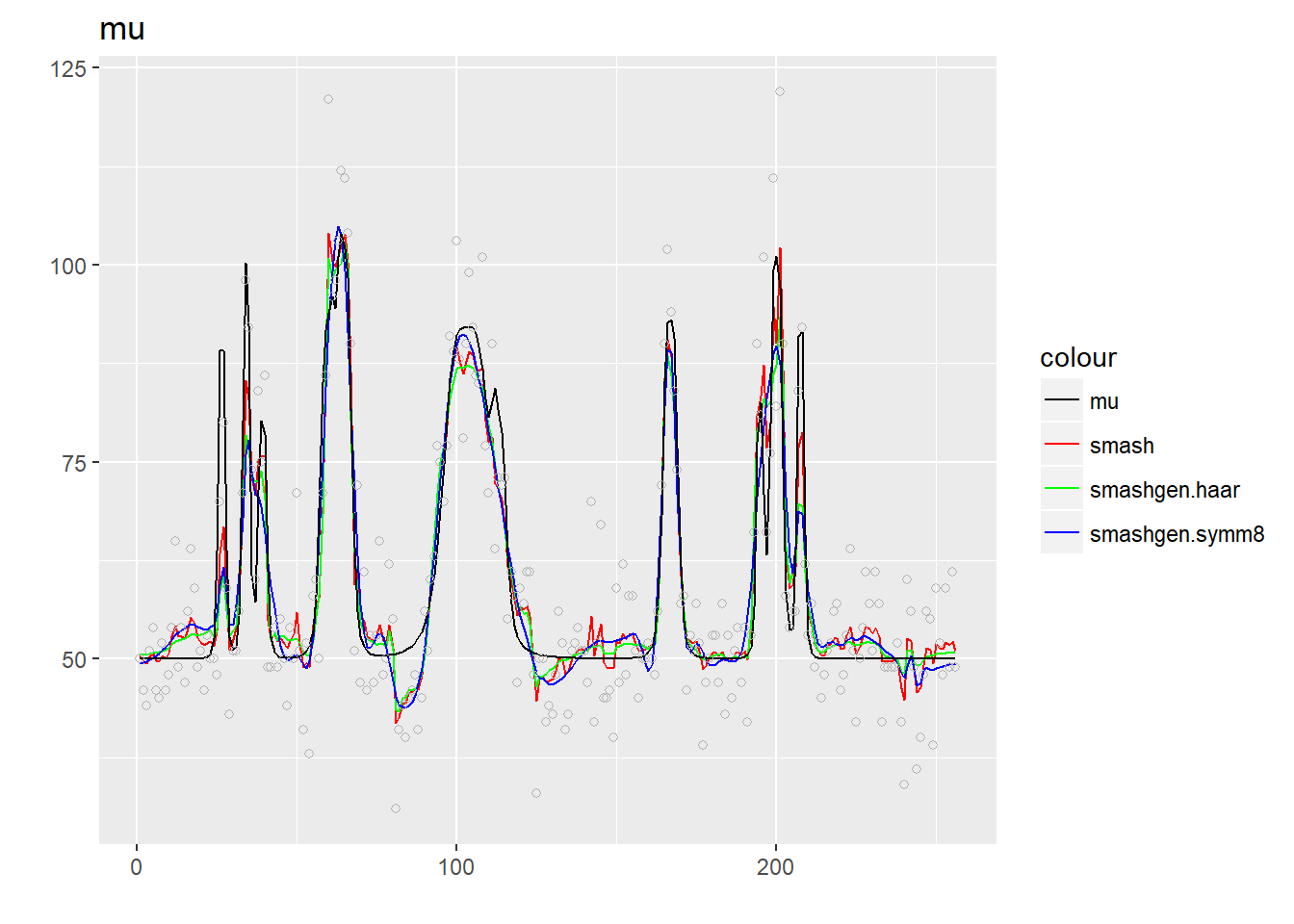

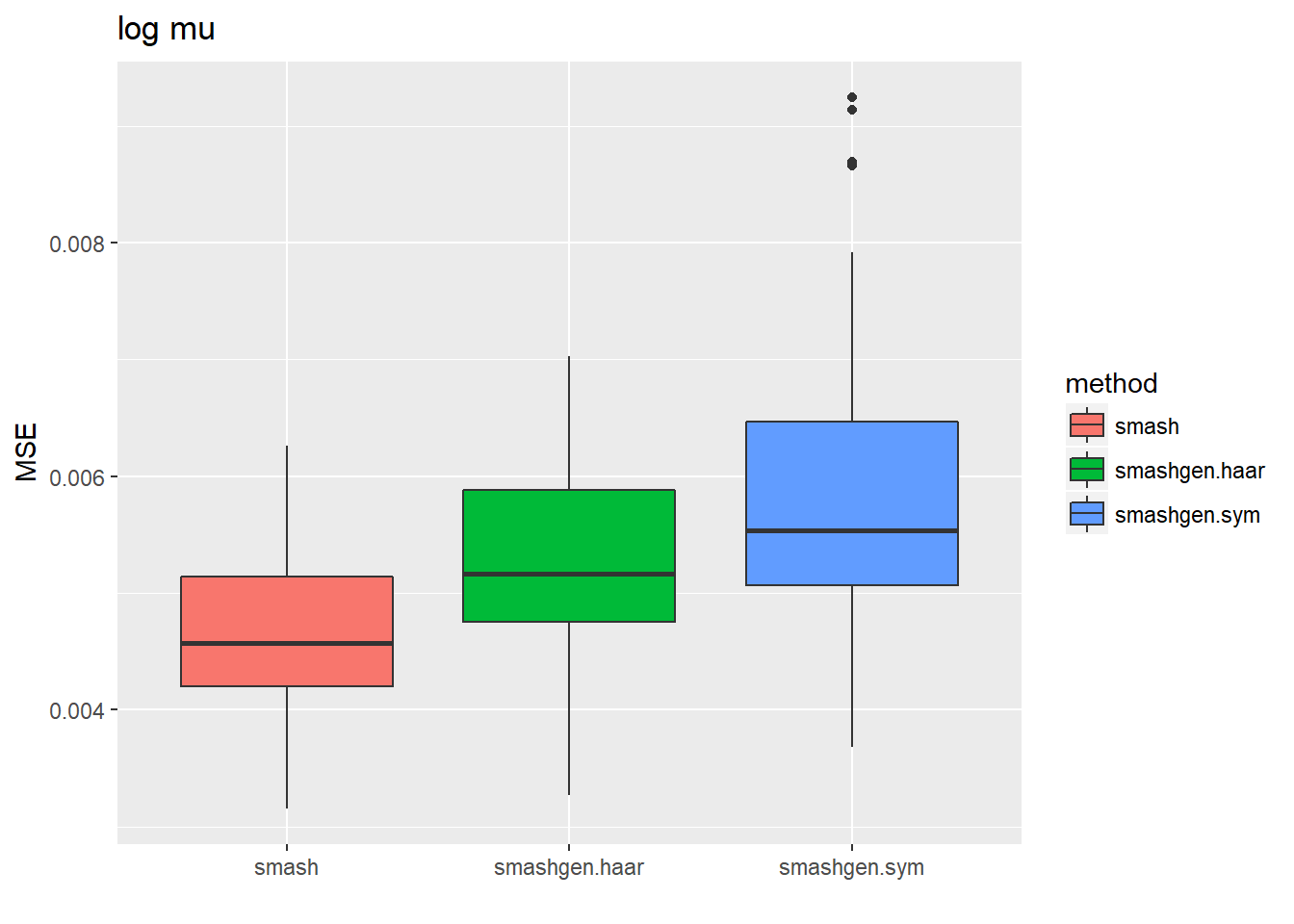

Range: (50,104)

mu=f*10+50

result=simu_study_scale(mu,nsimu=100)

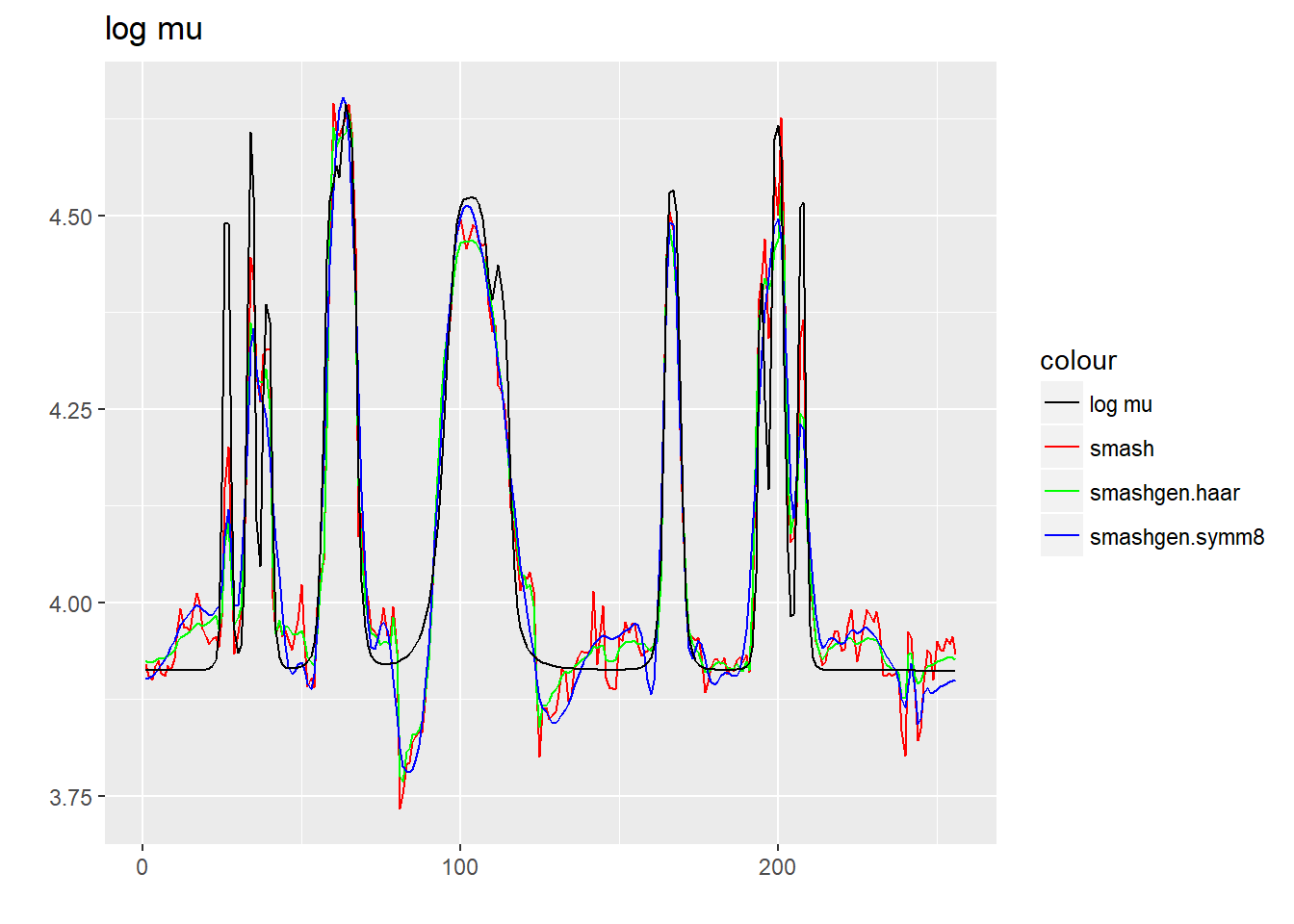

ggplot(df2gg(result$err.logmu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('log mu')

ggplot(df2gg(result$err.mu),aes(x=method,y=MSE))+geom_boxplot(aes(fill=method))+labs(x='')+ggtitle('mu')

ggplot(result$est.mu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=mu,colour='mu'))+ggtitle('mu')+labs(x='',y='')+geom_point(aes(y=y),color='gray70',shape=1)+scale_colour_manual(values=c('black',"red", "green",'blue'))

ggplot(result$est.logmu,aes(1:256))+geom_line(aes(y=smash,colour='smash'))+geom_line(aes(y=smashgen.haar,colour='smashgen.haar'))+geom_line(aes(y=smashgen.sym,colour='smashgen.symm8'))+geom_line(aes(y=log(mu),colour='log mu'))+ggtitle('log mu')+labs(x='',y='')+scale_colour_manual(values=c('black',"red", "green",'blue'))
